Grizzly G0798 Owner's Manual

22" x 62" metalworking downdraft table
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

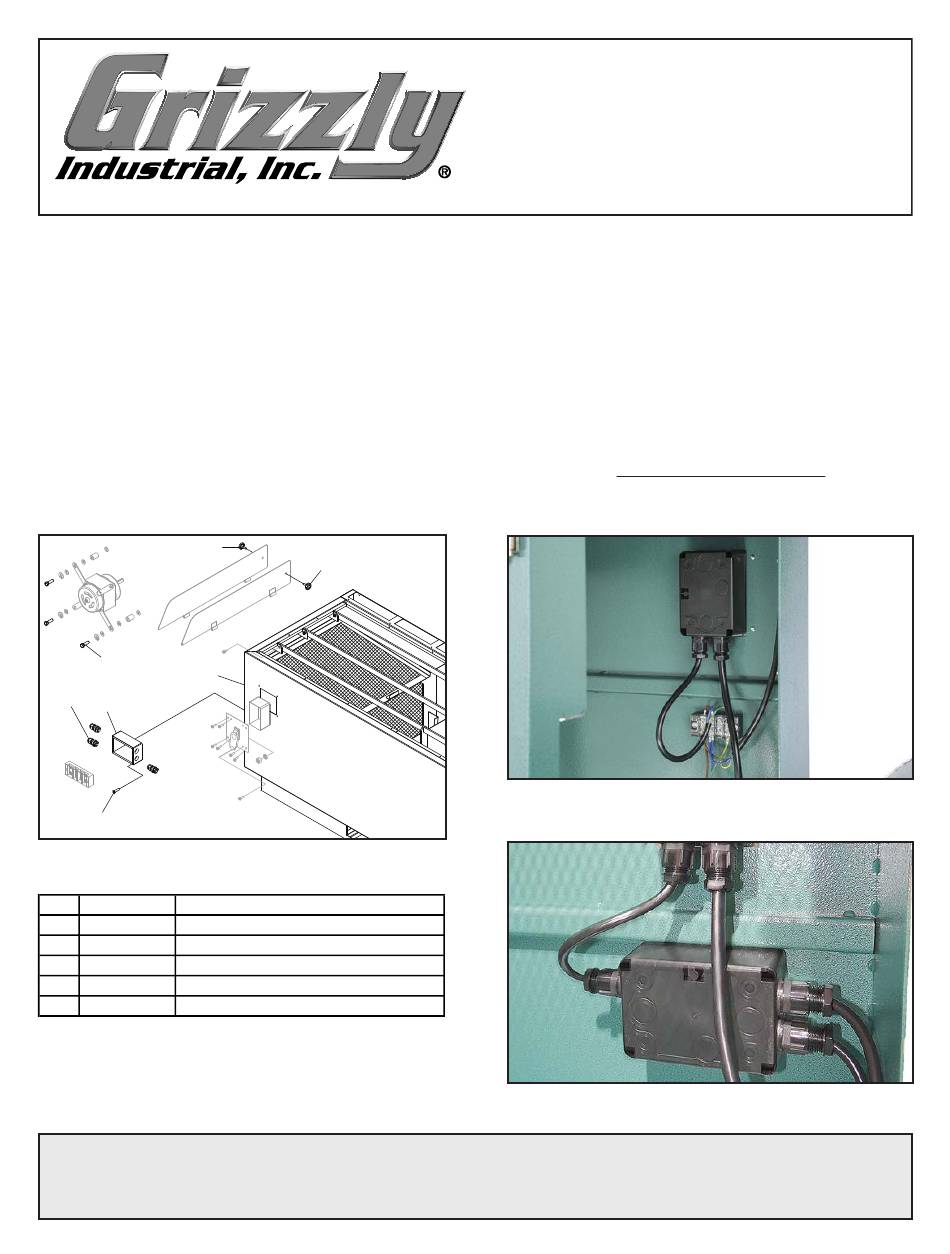

The following changes were recently made since the owner's manual was printed:
•
Terminal Bar Dust Box added to machine and main housing modified with mounting holes for dust box.
•
Parts list and parts diagram have been revised.
•
Wiring diagram has been revised.
Aside from this information, all other content in the owner's manual applies and MUST be read and under-
stood for your own safety. IMPORTANT: Keep this update with the owner's manual for future reference.
For questions or help, contact our Tech Support at (570) 546-9663 or techsupport@grizzly.com.
Revised Parts Breakdown
18
14
16V3
36
57
28
REF PART #
DESCRIPTION
14
P0798014
HEX BOLT 1/4-20 X 1-1/4
16V3 P0798016V3
MAIN HOUSING V3.04.20
18
P0798018
STAR KNOB 1/4-20 X 3/4
28
P0798028
TAP SCREW M4 X 16
36
P0798036
STRAIN RELIEF TYPE-3 M16-1.5
57
P0798057
TERMINAL BAR DUST BOX
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
READ THIS FIRST
18
COPYRIGHT © APRIL, 2020 BY GRIZZLY INDUSTRIAL, INC.
#AI21082 PRINTED IN TAIWAN
Model G0798
***IMPORTANT UPDATE***
For Machines Mfd. Since 4/20
and Owner's Manual Revised 5/17
Terminal Bar Without Dust Box
Terminal Bar With Dust Box

Advertisement

Table of Contents
loading

Related Manuals for Grizzly G0798

Summary of Contents for Grizzly G0798

  • Page 1 ***IMPORTANT UPDATE*** For Machines Mfd. Since 4/20 and Owner's Manual Revised 5/17 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com The following changes were recently made since the owner's manual was printed: •...
  • Page 2 Replaces Page 26 Wiring Diagram PADDLE SWITCH (viewed from behind) Ground JiHong 9301A 21(20) 125VAC 12(12) 250VAC Terminal Right Motor Dust Box Ground Capacitor 30MFD 250VAC Left Motor Capacitor 30MFD 250VAC 5-15 Plug 110 VAC Neutral Ground G0798 Update (Mfd. Since 4/20)
  • Page 3 OWNER'S MANUAL (For models manufactured since 4/17) COPYRIGHT © FEBRUARY, 2016 BY GRIZZLY INDUSTRIAL, INC., REVISED MAY, 2017 (MN) WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
  • Page 4 This manual provides critical safety instructions on the proper setup, operation, maintenance, and service of this machine/tool. Save this document, refer to it often, and use it to instruct other operators. Failure to read, understand and follow the instructions in this manual may result in fire or serious personal injury—including amputation, electrocution, or death.

  • Page 5: Table Of Contents

    Table of Contents INTRODUCTION ..........................2 Contact Info ..........................2 Manual Accuracy ........................2 Identification ..........................3 Machine Data Sheet ........................4 SECTION 1: SAFETY ........................6 Safety Instructions for Machinery ....................6 Additional Safety for Downdraft Tables ..................8 SECTION 2: POWER SUPPLY ......................

  • Page 6: Introduction

    ID label (see below). This information is required for us to provide proper tech support, and it helps us determine if updated documenta- tion is available for your machine. Manufacture Date Serial Number Model G0798 (Mfd. Since 4/17)

  • Page 7: Identification

    Downdraft Plate Suction Panels Right Panel Left Panel Dust Drawers Motor Access Door ON/OFF Paddle Switch Motor Access Door To reduce your risk of serious injury, read this entire manual BEFORE using machine. Model G0798 (Mfd. Since 4/17)

  • Page 8: Machine Data Sheet

    MACHINE DATA SHEET Customer Service #: (570) 546-9663 · To Order Call: (800) 523-4777 · Fax #: (800) 438-5901 MODEL G0798 22" X 62" METALWORKING DOWNDRAFT TABLE Product Dimensions: Weight................................300 lbs. Width (side-to-side) x Depth (front-to-back) x Height..............65 x 24 x 33-1/2 in.
  • Page 9 The information contained herein is deemed accurate as of 11/10/2016 and represents our most recent product specifications. Model G0798 PAGE 2 OF 2 Due to our ongoing improvement efforts, this information may not accurately describe items previously purchased. Model G0798 (Mfd. Since 4/17)

  • Page 10: Section 1: Safety

    Everyday ery. Never operate under the influence of drugs or eyeglasses are NOT approved safety glasses. alcohol, when tired, or when distracted. Model G0798 (Mfd. Since 4/17)
  • Page 11 EXPERIENCING DIFFICULTIES. If at any time debris. Make sure they are properly installed, you experience difficulties performing the intend- undamaged, and working correctly BEFORE ed operation, stop using the machine! Contact our operating machine. Technical Support at (570) 546-9663. Model G0798 (Mfd. Since 4/17)

  • Page 12: Additional Safety For Downdraft Tables

    Empty only into an approved container, with filters, guards, or covers removed. taking care to minimize amount of dust allowed to become airborne and prevent spread onto hands or clothing. Dispose of waste properly. Model G0798 (Mfd. Since 4/17)

  • Page 13: Section 2: Power Supply

    Phase ........... Single-Phase sure it is connected to a power supply circuit that Power Supply Circuit ......15 Amps meets the specified circuit requirements. Plug/Receptacle ......NEMA 5-15 Model G0798 (Mfd. Since 4/17)
  • Page 14 Two-prong outlets do not meet the grounding requirements for this machine. Do not modify or use an adapter on the plug provided—if it will not fit the outlet, have a qualified electrician install the proper outlet with a verified ground. -10- Model G0798 (Mfd. Since 4/17)

  • Page 15: Section 3: Setup

    (or other have resolved any issues between Grizzly or the lifting equipment) rated for shipping agent. You MUST have the original pack- weight of this machine.

  • Page 16: Hardware Recognition Chart

    Hardware Recognition Chart -12- Model G0798 (Mfd. Since 4/17)

  • Page 17: Inventory

    —Star Knobs ..........2 packaging materials. Often, these items get E. Foot Pad Assemblies ......... lost in packaging materials while unpack- ing or they are pre-installed at the factory. -13- Model G0798 (Mfd. Since 4/17)

  • Page 18: Site Considerations

    Only install in an Shadows, glare, or strobe effects that may distract access restricted location. or impede the operator must be eliminated. = Power Connection Wall 30" Minimum 22" 24½" 64" 108" Figure 3. Minimum working clearances. -14- Model G0798 (Mfd. Since 4/17)

  • Page 19: Lifting & Placing

    Return downdraft table to upright position so it rests on foot pads. Ensure all six foot pads evenly touch floor. Rotate individual footpads to adjust as necessary. Remove protective plastic wrapping and cardboard from left and right suction panels. -15- Model G0798 (Mfd. Since 4/17)

  • Page 20: Power Connection

    Grasp the molded plug and pull it completely out of the receptacle. Do not pull by the cord as this may damage the wires inside. Handle Figure 7. Star knob and handle installed. Figure 9. Disconnecting power. -16- Model G0798 (Mfd. Since 4/17)

  • Page 21: Test Run

    — If the machine does start, immediately stop the machine. The switch-disabling feature is not working correctly. This safety fea- ture must work properly before proceeding with regular operations. Call Tech Support for help. -17- Model G0798 (Mfd. Since 4/17)

  • Page 22: Section 4: Operations

    Regardless of the content in this sec- tion, Grizzly Industrial will not be held liable Turn downdraft table ON and perform opera- for accidents caused by lack of training.

  • Page 23: Section 5: Accessories

    T10493 Refer to our website or latest catalog for additional recommended accessories. T27576 —20" x 16" x 1" Metal Mesh Filter A replacement metal mesh filter for the G0798 T10494 Downdraft Table. 2 pc. T10495 Figure 14. Grizzly angle grinders.
  • Page 24 Also compatible with safety glasses! Figure 19. Model T23089 Air Cut-Off Saw. Figure 17. Half-mask respirator and disposable cartridge filters. www.grizzly.com 1-800-523-4777 order online at or call -20- Model G0798 (Mfd. Since 4/17)

  • Page 25: Section 6: Maintenance

    Cleaning & Protecting Figure 20. Dust drawers. Cleaning the Model G0798 is relatively easy. Vacuum excess dust and wipe off the remaining dust with a dry cloth. Wear safety glasses and a NIOSH-approved respirator rated for the waste metal type when emptying and cleaning drawers.

  • Page 26: Section 7: Service

    Possible Solution Downdraft table 1. Dust collection drawer is full. 1. Empty collection drawers. does not adequately 2. Filter is dirty. 2. Knock dust off filter; replace with new filter. collect dust; poor performance. -22- Model G0798 (Mfd. Since 4/17)

  • Page 27: Replacing Filters

    Remove table plate and all three support bars (see Figure 21). Never operate machine with damaged or Support Bars worn parts. Never operate machine with Upper Filter filters, guards, or covers removed. Lower Filter Figure 21. Support bars before removal. -23- Model G0798 (Mfd. Since 4/17)

  • Page 28: Section 8: Wiring

    Technical Support at (570) 546-9663. The photos and diagrams included in this section are best viewed in color. You can view these pages in color at www.grizzly.com. -24- Model G0798 (Mfd. Since 4/17)

  • Page 29: Electrical Components

    Left Side Motor To Right Side Motor Power Cord Terminal Figure 24. Left motor wiring. Figure 25. Electrical component wiring. Right Side Motor Figure 26. Right motor wiring. READ ELECTRICAL SAFETY -25- Model G0798 (Mfd. Since 4/17) ON PAGE 24...

  • Page 30: Wiring Diagram

    (viewed from behind) Ground JiHong 9301A 21(20) 125VAC 12(12) 250VAC Right Motor Terminal Ground Capacitor 30MFD 250VAC Left Motor Capacitor 30MFD 250VAC 5-15 Plug 110 VAC Neutral Ground READ ELECTRICAL SAFETY -26- Model G0798 (Mfd. Since 4/17) ON PAGE 24...

  • Page 31: Section 9: Parts

    SECTION 9: PARTS We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown are available for purchase. Call (800) 523-4777 or visit www.grizzly.com/parts to check for availability. Breakdown 16V2 54V2 -27- Model G0798 (Mfd. Since 4/17)

  • Page 32: Parts List

    MOTOR CORD 16G 3W 16" (LEFT) P0798025 SWITCH BOX 54V2 P0798054V2 RIGHT OUTLET COVER V2.11.16 P0798026 SWITCH PLATE P0798055 LOCK NUT 5/16-18 P0798027 FLANGE SCREW 10-24 X 1/2 P0798056 FLAT WASHER 5/16 P0798028 TAP SCREW M4 X 16 -28- Model G0798 (Mfd. Since 4/17)

  • Page 33: Labels & Cosmetics

    FOR GRIZZLY MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK 4. Disconnect power before servicing or changing filters, WITHOUT WRITTEN APPROVAL! Grizzly will not accept labels changed without approval. or serious injury, read HAZARD! and make sure impeller stops moving before opening WITHOUT WRITTEN APPROVAL! Grizzly will not accept labels changed without approval.
  • Page 34 Would you recommend Grizzly Industrial to a friend? _____ Yes _____No Would you allow us to use your name as a reference for Grizzly customers in your area? Note: We never use names more than 3 times. _____ Yes _____No 10.
  • Page 35 FOLD ALONG DOTTED LINE Place Stamp Here GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 FOLD ALONG DOTTED LINE Send a Grizzly Catalog to a friend: Name_______________________________ Street_______________________________ City______________State______Zip______ TAPE ALONG EDGES--PLEASE DO NOT STAPLE...

  • Page 37: Warranty & Returns

    WARRANTY & RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance.
