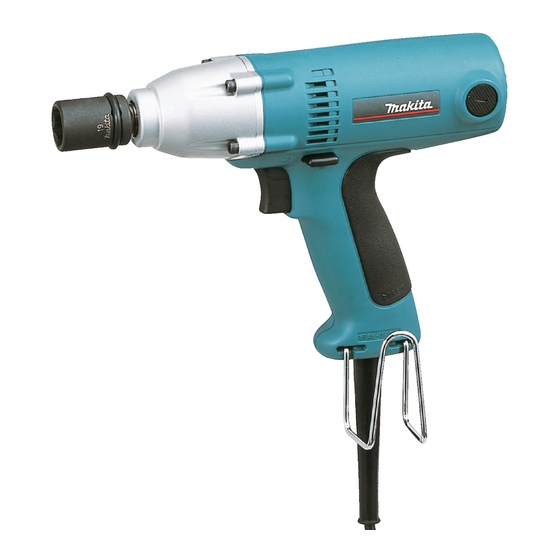

- Page 1 Impact Wrench 12.7 mm (1/2”) MODEL 6953 001641 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
-
Page 2: Specifications
SPECIFICATIONS Capacities Max. No load speed Impacts per Overall fastening High tensile (RPM) minute length weight Standard bolt torque bolt 10mm - 16mm 8mm - 12mm 150 N o m 233 mm 1.4 kg 0 - 3000/min. 0 - 3000 (3/8”... - Page 3 5. Avoid body contact with grounded sur- 14. Use safety equipment. Always wear eye faces such as pipes, radiators, ranges and protection. Dust mask, non-skid safety refrigerators. There is an increased risk of shoes, hard hat, or hearing protection must electric shock if your body is grounded.
-
Page 4: Specific Safety Rules
24. When servicing a tool, use only identical SERVICE replacement parts. Follow instructions in 23. Tool service must be performed only by the Maintenance section of this manual. qualified repair personnel. Service or main- Use of unauthorized parts or failure to follow tenance performed by unqualified personnel Maintenance instructions may create a risk of could result in a risk of injury. - Page 5 SAVE THESE INSTRUCTIONS WARNING: MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. SYMBOLS USD202-2 The followings show the symbols used for tool. V ....... volts ....no load speed ˚ A ....... amperes ....Class II Construction Hz .....
-
Page 6: Functional Description
FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action 001642 CAUTION: • Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF” position when released. -
Page 7: Operation
Installing or removing socket 001644 To install the socket, push it onto the anvil of the tool until it locks into place. To remove the socket, simply pull it off. 1. Socket 2. Anvil Hook The hook is convenient for temporarily hanging the tool. This can be removedwithout using a tool.Thiscan be installedon either side of the tool. - Page 8 Hold the tool firmly and place the socket over the bolt or nut. 001658 Standard bolt Turn the tool on and fasten for the proper fastening time. N·m (ft·lbs) M16 (5/8”) NOTE: (100) • When fastening screw M8 (5/16”) or smaller, carefully (86) M16 (5/8”) adjust pressure on the switch trigger so that the screw is...
-
Page 9: Maintenance
CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 10 Memo...
