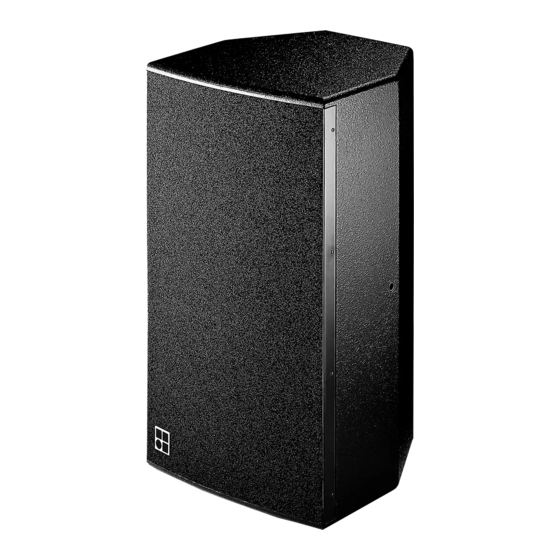

- Page 1 Z5052 Ci60/Ci90 Flying bracket Mounting instructions...
- Page 2 Z5052 Ci60/Ci90 Flying bracket References in the manual This refers to a potentially dan- WARNING! gerous situation which may lead to personal injury. CAUTION! This refers to a potentially danger- ous situation which may lead to equipment damage. IMPORTANT! This refers to a situation which may...
-
Page 3: General Safety Advice
General Safety and Installation Advice General safety advice d&b loudspeakers should only ever be flown or installed using WARNING! recommended d&b rigging accessories. The d&b rigging accessories described in the d&b rigging accessories manual and the specific mounting instructions are designed and manufactured to have a high load safety factor for their intended role. -
Page 4: Safety Inspections
Any wall, floor or ceiling to which a d&b loudspeaker is fixed or WARNING! attached using a d&b rigging accessory must be capable of safely and securely supporting the actual load. The rigging accessory used must be safely and securely fixed both to the loudspeaker and to the wall, floor or ceiling. - Page 5 Load safety factors Rigging accessories are safety critical components which can, by their failure, lead to injury or death. To maximise safety and to reduce the risk of the possible consequences of failure, there exist various recommendations which attempt to govern the safe design and construction of rigging components.
- Page 6 A 12X load safety factor is therefore recommended for the following components: Chains − Steel wire ropes (for lifting and securing) − Shackles − Eyebolts etc. − In contrast, the EU Machinery Directive (EN292-2) specifies the following load safety factors for rigging components: Rigging component Safety factors Steel wire ropes...
-
Page 7: Load Ratings
The d&b rigging accessories described in the d&b rigging accessories manual and specific mounting instructions are directly attached to d&b loudspeaker cabinets and are secured using either screws or bolts fastened to threaded inserts fitted in the loudspeaker cabinets. .or attaching rigging, d&b loudspeaker cabinets are fitted threaded inserts. - Page 8 2.5 kg/ 5.5 lb Assembly The Ci60/Ci90 Flying bracket [1] is supplied with two M10 hex head bolts [2], spring lock washers [3], plain washers [4] and rubber washers [5] The flying bracket is attached to the M10 threaded inserts on each side of the speaker cabinet using a open wrench SW 17.
- Page 9 Operation The centre of gravity of a Ci60/Ci90 loudspeaker is in line with the bracket’s axis of rotation. This prevents the vertical flying angle setting from limiting freedom of movement by creating a twisting force on the mounting support - an essential requirement for stable flying.
- Page 10 Dimensions Z5052 Ci60/Ci90 Flying bracket in mm (2.0 E) Z5052...
- Page 11 d&b audiotechnik AG, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00 Z5052 (2.0 E)
