AEG FSK52917Z User Manual

Hide thumbs Also See for FSK52917Z:
Table of Contents

Advertisement

Quick Links

Download this manual
aeg.com/register

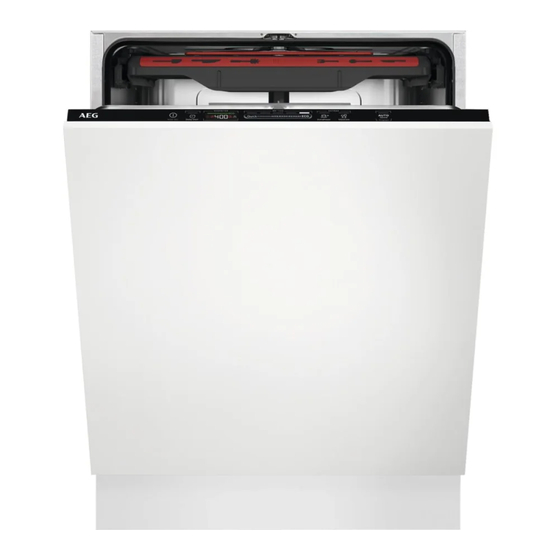

EN User Manual | Dishwasher
FSK52917Z
aeg.com\register

Advertisement

Table of Contents
loading

Related Manuals for AEG FSK52917Z

Summary of Contents for AEG FSK52917Z

  • Page 1 EN User Manual | Dishwasher FSK52917Z aeg.com\register...

  • Page 2: Table Of Contents

    FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...

  • Page 4: Safety Instructions

    • Follow the maximum number of 14 place settings. • The appliance door should not be left in an open position to avoid the tripping hazard. • If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
  • Page 5 Make sure that there is access to the • Do not drink and play with the water in the mains plug after the installation. appliance. • Do not pull the mains cable to disconnect • Do not remove the dishes from the the appliance.

  • Page 6: Installation

    Authorized Service Centre to replace it with the new one. 3.1 Building in www.youtube.com/electrolux www.youtube.com/aeg How to install your AEG/Electrolux 60 cm Sliding Door Dishwasher 3.2 Safety caps If the furniture panel is not installed, open the appliance door carefully to avoid the risk of injury.

  • Page 7: Product Description

    4. PRODUCT DESCRIPTION Ceiling spray arm Lower basket Upper spray arm Upper basket Lower spray arm Cutlery drawer Filters Rating plate The graphic is a general overview. For Salt container more details, refer to other chapters or documents provided with the appliance. Air vent Rinse aid dispenser Detergent dispenser...

  • Page 8: Control Panel

    5. CONTROL PANEL On/Off button / Reset button Option buttons (EXTRAS) Delay start button AUTO Sense program button Display MY TIME program selection bar 5.1 Display 5.2 ECOMETER The ECOMETER indicates how the programme selection impacts energy and water consumption. The more bars are on, the lower the consumption is.

  • Page 9: Programme Selection

    6. PROGRAMME SELECTION 6.1 MY TIME 6.2 AUTO Sense MY TIME selection bar allows to select a The AUTO Sense programme automatically suitable dishwashing cycle based on adjusts the dishwashing cycle to the type of programme duration. load. The appliance senses the degree of soil and the amount of dishes in the baskets.
  • Page 10 Programme Dishwasher Degree of Programme phases EXTRAS load soil Crockery, cutlery Fresh, lightly • Dishwashing 60 °C • ExtraPower dried-on • Intermediate rinse • GlassCare • Final rinse 50 °C • AirDry 1h 30min Crockery, cut‐ Normal, lightly • Dishwashing 60 °C •...

  • Page 11: Basic Settings

    Water (l) Energy (kWh) Duration (min) Programme 1)2) 2h 40min 12.0 1.240 10.5 0.950 AUTO Sense 12.1 1.230 Machine Care 10.1 0.610 The pressure and the temperature of the water, the variations of the mains supply, the options, the quantity of dishes and the degree of soil can change the values.
  • Page 12 How to change a setting Make sure the appliance is in setting mode. 1. Use Previous or Next to select the bar of the ECOMETER dedicated to the desired setting. • The bar of the ECOMETER dedicated to the chosen setting flashes. 3 4 5 6 •...
  • Page 13 German de‐ French de‐ mmol/l mg/l (ppm) Clarke de‐ Water softener grees (°dH) grees (°fH) grees level 43 - 46 76 - 83 7.6 - 8.3 755 - 834 53 - 57 37 - 42 65 - 75 6.5 - 7.5 645 - 754 46 - 52 29 - 36...
  • Page 14 when it occurs at any point at the beginning or in the middle of a programme. All the consumption values mentioned in this section are determined in line with the currently applicable standard in laboratory conditions with water hardness 2.5mmol/L (water softener: level 3) according to the regulation: 2019/2022 / UK Ecodesign 2021/745.

  • Page 15: Before First Use

    is then selected automatically after you When the latest programme selection is activate the appliance. disabled, the default programme is ECO. 8. BEFORE FIRST USE 1. Make sure that the current level of the 4. Carefully shake the funnel by its handle to water softener agrees with the get the last granules inside.

  • Page 16: Daily Use

    4. Close the lid. Make sure that the release CAUTION! button locks into position. Only use rinse aid designed specifically for dishwashers. You can turn the selector of the released 1. Press the release button (D) to open the quantity (B) between position 1 (lowest lid (C).
  • Page 17 • The light related to the button is on. During the countdown, it is not possible to • The display shows the updated change the delay time and the programme programme duration. selection. • The ECOMETER indicates the When the countdown is complete, the updated level of energy and water programme starts.

  • Page 18: Hints And Tips

    • When the programme is completed. The Auto Off function switches the appliance • After 5 minutes if a programme was not off automatically. started. All buttons are inactive except for the on/off button. 9.10 End of the programme When the programme is complete, the display shows 0:00.

  • Page 19: Care And Cleaning

    10.3 What to do if you want to stop • Use the appliance to wash dishwasher- using multi-tablets safe items only. • Do not wash the following materials in the Before you start using separately detergent, dishwasher: wood, horn, pewter, copper, salt and rinse aid, complete the following aluminium, delicate ornamented porcelain steps:...
  • Page 20 results. It removes limescale and grease etc) decrease the cleaning performance and buildup. can cause damage to the drain pump. When the appliance senses the need for CAUTION! cleaning, the indicator is on. Start the If unable to remove the foreign objects, Machine Care programme to clean the contact an Authorised Service Centre.
  • Page 21 2. Remove the filter (C) out of filter (B). 3. Remove the flat filter (A). 7. Reassemble the filters (B) and (C). 8. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks. 4. Wash the filters. CAUTION! An incorrect position of the filters can cause bad washing results and damage...
  • Page 22 11.8 Cleaning the ceiling spray arm We recommend to clean the ceiling spray arm regularly to prevent soil from clogging the holes. Clogged holes can cause unsatisfactory washing results. The ceiling spray arm is placed on the ceiling of the appliance. The spray arm (C) is installed in the delivery tube (A) with the mounting element (B).

  • Page 23: Troubleshooting

    5. To install the spray arm (C) back, insert the mounting element (B) in the spray arm and fix it in the delivery tube (A) by turning it clockwise. Make sure that the mounting element locks into place. 6. Install the cutlery drawer on the sliding rails and block the stoppers.
  • Page 24 Problem and alarm code Possible cause and solution The anti-flood device is on. • Close the water tap. The display shows i30. • Make sure that the appliance is correctly installed. • Make sure the baskets are loaded as instructed in the user manual. Malfunction of the water level detec‐...
  • Page 25 Problem and alarm code Possible cause and solution Rattling or knocking sounds from • The tableware is not properly arranged in the baskets. Refer to basket the inside of the appliance. loading leaflet. • Make sure that the spray arms can rotate freely. The appliance trips the circuit-beak‐...
  • Page 26 Problem Possible cause and solution Poor drying results. • Tableware was left for too long inside the closed appliance. Activate the function AirDry to set the automatic opening of the door and to improve the drying performance. • There is no rinse aid or the dosage of rinse aid is not sufficient. Fill the rinse aid dispenser or set the dosage of rinse aid to a higher lev‐...

  • Page 27: Technical Information

    Problem Possible cause and solution Limescale deposits on the tableware, • The level of salt is low, check the refill indicator. on the tub and on the inside of the • The cap of the salt container is loose. door. •...

  • Page 28: Environmental Concerns

    rating plate of the appliance. Refer to the product information sheet. Keep the energy chapter "Product description". label for reference together with the user manual and all other documents provided For more detailed information about the with this appliance. energy label, visit www.theenergylabel.eu. For more detailed information about the 13.2 Link to the product information energy label, visit www.theenergylabel.eu.
  • Page 32 156934044-A-302023...
