Operating Instructions
使 用 說 明 書

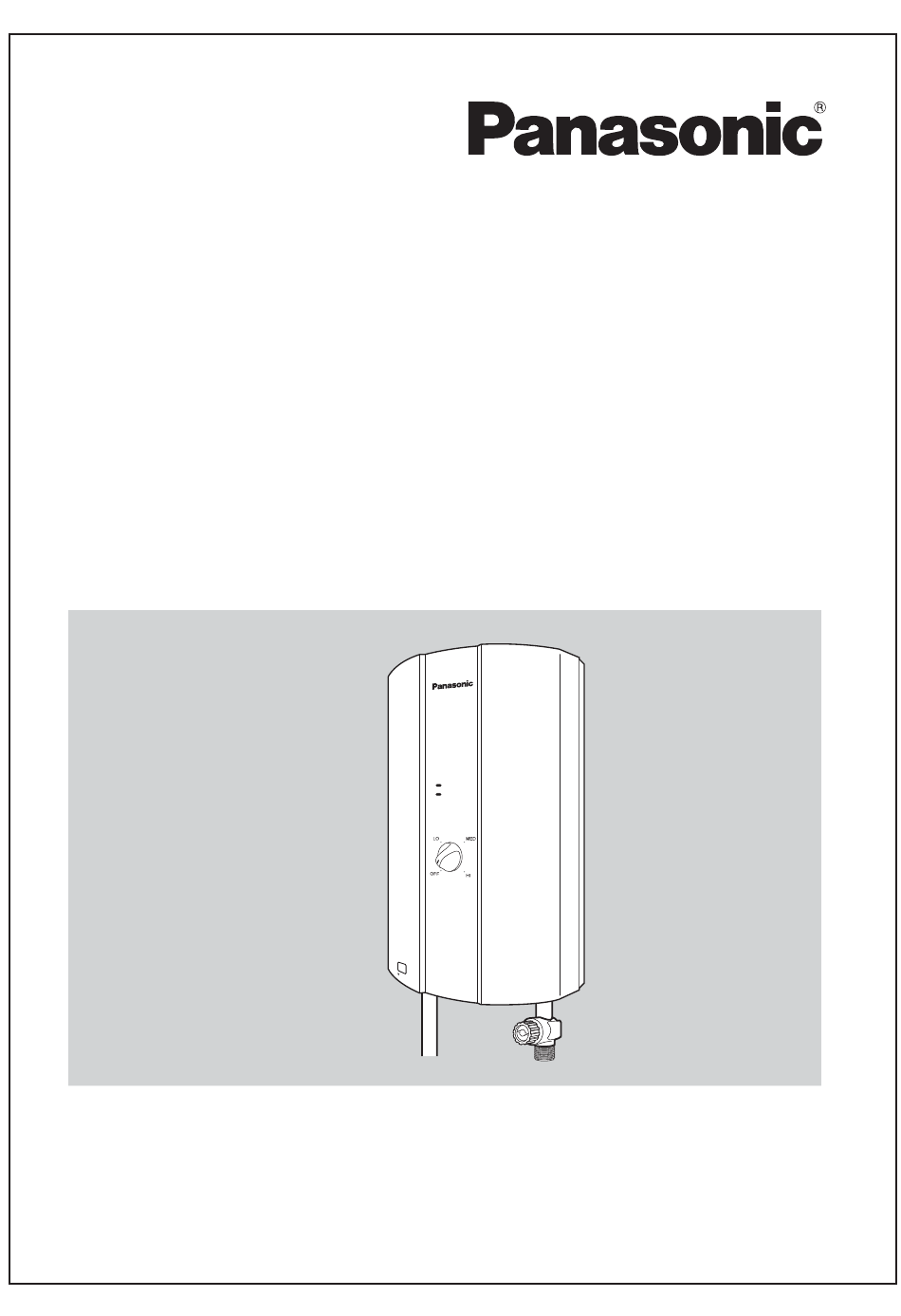

Electric Water Heater
家庭用電熱噴水器
DH-8BM1P
DH-10BM1P
ELB
POW ER SEL ECT
OR
SU PE R PO W
ER
M U LT I PO IN
T
EL B C
H EC KE
R
R E S
E T P
U S H
U P
Thank you for purchasing the Panasonic Electric Water Heater.
For optimum performance and safety, please read these instructions carefully.
感謝您購買Panasonic家庭用電熱噴水器，
為了正確使用及維護您的安全，請詳細閱讀說明書。
Advertisement
Table of Contents
Related Manuals for Panasonic DH-8BM1P
Summary of Contents for Panasonic DH-8BM1P
- Page 1 M U LT I PO IN EL B C H EC KE R E S E T P U S H Thank you for purchasing the Panasonic Electric Water Heater. For optimum performance and safety, please read these instructions carefully. 感謝您購買Panasonic家庭用電熱噴水器， 為了正確使用及維護您的安全，請詳細閱讀說明書。...
-
Page 2: Table Of Contents
Page No. / 頁次 BEFORE USING PANASONIC ELECTRIC WATER HEATER 在使用PANASONIC家庭用電熱噴水器 SAFETY PRECAUTIONS 安全注意事項 HOW TO USE PANASONIC ELECTRIC WATER HEATER 如何使用PANASONIC家庭用電熱噴水器 PARTS IDENTIFICATION / 零件名稱 BEFORE USE / 準備工序 HOW TO USE / 使用法 HOW TO OPERATE POWER SELECTOR KNOB / 電量調整鈕的使用方法... -
Page 3: Before Using Panasonic Electric Water Heater
BEFORE USING PANASONIC ELECTRIC WATER HEATER 在使用PANASONIC家庭用電熱水器之前 Installation Precautions Operation Precautions SAFETY PRECAUTIONS Before operating, please read the following "Safety Precautions" carefully. • To prevent personal injury, injury to other and property This sign warns of death or serious injury. -
Page 4: How To Use Panasonic Electric Water Heater 如何使用Panasonic家庭用電熱噴水器
HOW TO USE PANASONIC ELECTRIC WATER HEATER 如何使用PANASONIC家庭用電熱噴水器 1. PARTS IDENTIFICATION / 零件名稱 PARTS IN DOTTED LINES NOT INCLUDED 虛線內部分不列入 Earth 接地 Front Plate 機箱 ELB Lamp Miniature Circuit Breaker (MCB) ELB 指示燈 電流回路斷開器 Power Selector Knob ELB Test Button 電量調整鈕... -
Page 5: Before Use / 準備工序
Please engage an authorized dealer or specialist for the installation work. You are requested to check the following points before using the equipment. If you have any questions or doubts about the equipment, please consult the nearest Panasonic Water Heater Service Centre. -
Page 6: Precautions / 各項注意
5. PRECAUTIONS / 各項注意 POWER SELECTO POWER SELECT POWER SELECT SUP ER POW MUL TI POIN ELB CHE CKE R ET PUS SUP ER POW SUP ER POW H UP MU LTI POIN MU LTI POIN ELB CHE ELB CHE CKE R CKE R RE SE... -
Page 7: Important Notes / 重要事項
沒有水從熱噴水器流出來。 1. ELB的復原控制棒落下時請進行檢查。（因為ELB進行操作） 推上ELB的復原控制棒。 如ELB 復原控制棒不能推上，請趕快通知經銷商有關這方面的事項。 2. 檢查水道主水閥，擰開主水閥如已被關上。（看第四頁）。 (2) If abnormalities as mentioned below are found during usage, contact nearest Panasonic Water Heater Service Centre immediately. 1) Water leakage. 3) Water temperature cannot be controlled. 2) No water flow 4) ELB lamp does not light up. -
Page 8: Specification / 規格
9. SPECIFICATION 9. SPECIFICATION / 規格 Model DH-8BM1P DH-10BM1P Voltage AC 230V AC 230V Power Consumption 8000W 10000W Power Selector OFF/ 4500W / 6000W / 8000W OFF/ 6000W / 8000W / 10000W Water Supply Multi Point System Multi Point System Min. -
Page 9: How To Install Panasonic Electric Water Heater
HOW TO INSTALL PANASONIC ELECTRIC WATER HEATER PANASONIC家庭用電熱噴水器的安裝法 SPECIAL SKILL IS REQUIRED TO INSTALL THE UNIT. PLEASE ASK FOR THE AUTHORIZED PANASONIC DEALER. 必須以專門技術員來安裝。或向授權經銷商連絡委託裝置。 Warning : THE UNIT MUST BE EARTHED. 警告： 裝置上必須連結接地線。 CAUTION : Ensure the installation location (Example : On top of Roof, Ceiling, Confine Cabinet, Outdoor, etc) shall not lead to smoke emission, ignition, fire, electric shock and damage to property in case of water leak. -
Page 10: How To Install / 電熱噴水器的安裝
2. HOW TO INSTALL / 熱噴水器的安裝 (1) Where to install the unit. • Be sure to install the unit on the wall as illustrated in Figure 1. • Do not install the unit as shown in Figure 2 (Not at wall surface). •... - Page 11 (4) Installation on concrete, brick or tiled wall. 1 Make the Wall Plug hole in the wall by mean of a drill. 2 Drive a Wall Plug into the hole. 3 Drive each Screw into the upper Wall Plugs through the Screw Holes on the set. After tighten up the two upper Screws, tighten up the remaining two Screws.
-
Page 12: Piping Installation Procedure / 水道管安裝法
3. PIPING INSTALLATION PROCEDURE / 水道管安裝法 (1) Tee joint must be installed between the Main Water Valve and Flexible Pipe. Main Body (2) Place Rubber Packing between Filter Body Assembly and Flexible 機體 Pipe. Do not use Piping Tape. Tighten it by spanner firmly. (3) Place Rubber Packing between Filter Body Assembly and Main Body. -
Page 13: Electric Wiring / 電氣工程
4. ELECTRIC WIRING / 電氣工程 Earth (1) Before carry out any electrical work, switch off at mains. 接地 • Use double-coated cable of 6.0 mm² • Lead the Power Cable from the indoor power board and install the Miniature Circuit Breaker outside the bathroom. Miniature Circuit Breaker (2) Make the wiring to the Unit as following (2a) or (2b) 電流回路斷開器... -
Page 14: Test Operation / 試動
5. TEST OPERATION / 試動 (1) • Turn on the Main Water Valve. • Check if water leaks from the pipe line. (1). • 擰開水道的主閥。 • 檢驗配管是否有漏水。 ELB Lamp Power Selector Knob ELB 指示燈 電量調整鈕 (2) • Before switch on electricity, check the wiring. •... - Page 15 Panasonic Manufacturing Malaysia Berhad. (6100-K) No. 3, Jalan Sesiku 15/2, Shah Alam Industrial Site, 40200 Shah Alam, Selangor Darul Ehsan, Malaysia. Printed in Malaysia DH940A0BM1P1...
