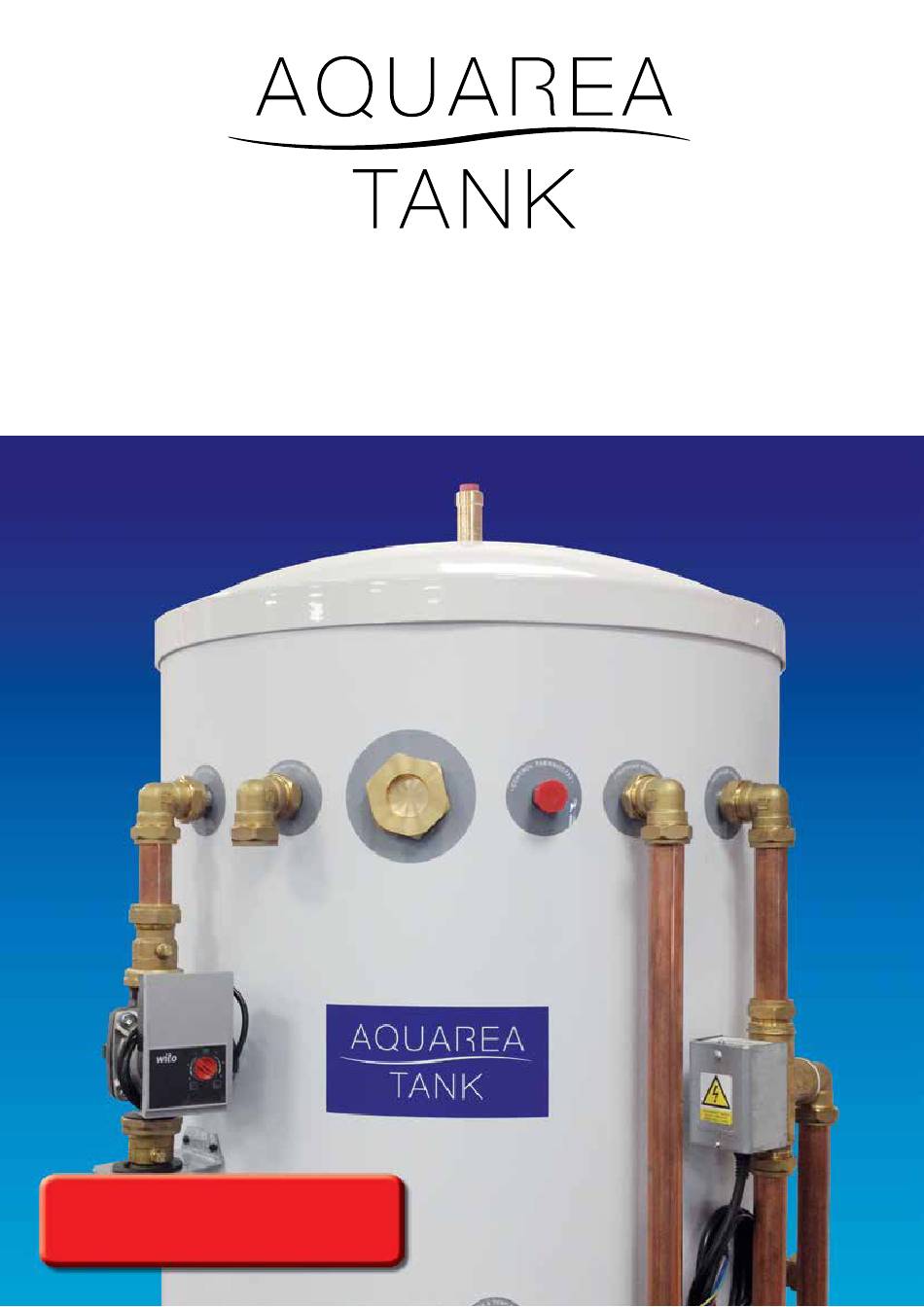

- Page 1 Unvented cylinders specifically designed to work with a heat pump Design, Installation & Servicing Instructions Models covered in this manual Aquarea Duo 200-300 litres Aquarea Duo (Pre-plumbed) 200-300 litres...
-
Page 2: Table Of Contents
ISSUE 2: JUNE 2016 These instructions should be read in conjunction with the installation/servicing instructions issued by the manufacturer of the heat source being used. Section Page Any installation must be in accordance with the relevant requirements of the Building Regulations, I.E.E. -
Page 3: Design
DESIGN Product Details Maintenance Modifications should not be made to this Maximum inlet pressure to product. Replacement par ts, including Pressure reducing valve 12 bar Operating pressure (PRV setting) 3 bar immersion heaters, should be purchased from Aquarea, or agents approved by them. Expansion vessel charge pressure 3 bar Unvented hot water storage vessels need... -
Page 4: Technical Information
DESIGN Table 1 Aquarea Duo GH 200/70L Heat Pump Buffer GH 300/70L Heat Pump Buffer Panasonic Product Code PAW-TE20BUF70-UK PAW-TE30BUF70-UK Product Stock Code ASLPAN200HP3SQM70BUF ASLPAN300HP3SQM70BUF Energy efficiency class Heat loss watts Capacity - total volume litres Volume heated by IH... - Page 5 DESIGN Table 2 Aquarea Duo Pre-Plumbed GH 200/70L PP Heat Pump Buffer GH 300/70L PP Heat Pump Buffer PAW-TE20BUF70PRE-UK PAW-TE30BUF70PRE-UK Product Stock Code ASLPAN200HP3SQM70BUFPP ASLPAN300HP3SQM70BUFPP Energy efficiency class Heat loss watts Capacity - total volume litres Volume heated by IH litres Weight - empty/full 57/327...
-
Page 6: System Design
DESIGN Aquarea Duo Cylinder Basic Appliance 1. Buffer vent / AAV (½” female) 2. CH flow (1” compression) 3. CH return (1” compression) 4. Inspection port (1¾” female) 5. Buffer sensor pocket (22mm dual pocket) 6. Buffer HP return (1” compression) 7. - Page 7 DESIGN Aquarea Duo Pre-Plumb Cylinder Basic Appliance 1. Buffer vent / AAV (½” female) 2. CH flow (1” compression) 3. CH return (1” compression) 4. Inspection port (1¾” female) 5. Buffer sensor pocket (22mm dual pocket) 6. Hot supply (¾” compression) 7.
- Page 8 Aquarea is a range of unvented hot water storage cylinders, manufactured in the latest high quality duplex stainless steel. They are designed to provide mains pressure hot water and are supplied as a package which complies with Section G3 of the Building Regulations.
- Page 9 INSTALLATION General Design Considerations Mains Water Supply The cupboard footprint needs to be at least 730mm square for units up to 300 litres. Existing properties with a 15mm supply will be satisfactory provided the local mains pressure The base chosen for the cylinder should be level and capable of supporting the weight is good, but should be confined to single of the unit when full of water as shown in General Data.
- Page 10 INSTALLATION Model Selection Aquarea Duo Cylinder Selection Guide Number of bathrooms Number of The suggested model sizes shown in the table Suggested model size (litres) bedrooms and shower rooms opposite are based on a typical daily hot water usage and on the assumption that the heat 1 bathroom pump will heat the domestic hot water to about 1 bathroom +...
- Page 11 INSTALLATION General Restrictions Pipe Layout a. The highest hot or cold water draw off point should not exceed 10 metres above In all mains pressure installations it is important the Pressure Reducing Valve. to remember that the incoming cold supply b.
- Page 12 INSTALLATION Pressure & Temperature/expansion Relief Typical Discharge Pipe Arrangement Valve Pipework Expansion 15 mm The relief valve should be installed to discharge relief valve discharge in accordance with G3 of the Approved pipe Document of the Building Regulations and should be piped to where it is visible, but will not cause danger to persons or damage to 600 mm max.
- Page 13 INSTALLATION d) It is preferable for the discharge to be visible at both the tundish and the final point of discharge but where this is not possible or practically difficult there should be clear visibility at one or other of these locations. Examples of acceptable discharge arrangements are: 1.
- Page 14 INSTALLATION Temperature/pressure Relief Valve All Aquarea Duo cylinders are fitted with a 3kW immersion heater so that the store temperature This safety device is also pre-set at the factory and relieves before the temperature can be raised above that which the heat pump reaches 100°C.
- Page 15 INSTALLATION Schematic Sealed Primary System Expansion Vessel Safety Valve Gauge Heat Pump Heating And Primary Systems Although the heat pump and the primary heating system should be sized and installed Unvented (i.e. sealed primary circuits may be filled or replenished by means of a in accordance with BS EN 12828:2003, BS EN 12831:2003 &...
- Page 16 INSTALLATION Tank External Solar Pump Three-way Valve Booster Heater Room Tank OLP Sensor Controller Solar Three-way Station Cable Cord Cable Cable Cable Valve Cable Cable Thermostat Terminals on the Mono bloc unit 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Lead wire cord...
-
Page 17: Commissioning
INSTALLATION IS DRAINED PRIOR TO CHECKING OR Connections can come loose in transit, and all should be checked before installation. REMOVING FILTER FROM THE COMBINATION INLET GROUP. Ensure that the immersion heater achieves a temperature of at least 60°C in the store and that the wiring is in accordance with the diagram. -
Page 18: User Instructions
USER INSTRUCTIONS Your Aquarea unvented cylinder is automatic in normal use, but requires routine maintenance which is normally carried out at least annually along with the heat pump service. The maintenance must be carried out by a suitably competent tradesperson who is qualified to work on unvented cylinders. - Page 19 SERVICING AND MAINTENANCE The Registered Installer is responsible for the safe installation and operation of the system. The installer must also make his customer aware that periodic maintenance of the equipment is essential for safety. Maintenance periods will vary for many reasons. Aquarea recommend a maximum of 12 months to coincide with heat pump maintenance.
- Page 20 SERVICING AND MAINTENANCE Scale In hard water areas it is recommended that an in-line scale inhibitor is fitted. Reducing the temperature of the stored water will reduce the rate at which scale forms. If the recovery rate is badly affected, this is an indication that scaling may have occurred. In this event, follow the procedures as recommended by a reputable Water Treatment Company.
-
Page 21: Fault Finding
SERVICING AND MAINTENANCE FAULT - Poor Water Flow at Hot Taps START Is incoming mains supply Water service check by flow/pressure adequate? supply company required Is in-line strainer Clean or replace strainer (in combination valve) as appropriate clean? Is pressure reducing valve Service /replace PRV (in combination valve) as appropriate... -
Page 22: Short Parts List
SERVICING AND MAINTENANCE SPARE PARTS LIST Description Quantity Stock Code No. 3kW immersion element SH012 22mm 90° compression elbow c/w/drain SF003 Pressure and temperature relief valve 6 bar 92-95°C SG019 Inlet group set at 3 bar c/w expansion relief valve set at 4.5 bar SG021 ¾”... - Page 23 APPENDIX Water Savings Water Related Costs Can Be Reduced By Good Plumbing Practice 2 tap 5, 6 or half open Over 8 l/m 20 l/m Unregulated Fitted with regulator TAPS & MIXERS 4 Fixing Options For Taps & Mixers 1. MK Range - Combined Regulators & Aerator for screwing onto Taps &...
- Page 24 APPENDIX MANUAL HANDLING OF APPLIANCE PRODUCTS Description e. Taking the lead for team lifts- As more than one person is required for these products ensure that one person is taking the lead. This may be you so ensure that each Manual handling means any transporting or supporting person that is helping is made aware of the weight and of a load (including lifting, putting down, pushing, pulling,...
-
Page 25: Terms & Conditions
1.4. In respect of goods supplied by us and in respect of 1.1. Subject to the terms of these G u a r a n t e e Terms Panasonic provide Guarantees in respect of specific products any installation work carried out by or on our behalf, our entire liability and the purchaser’s sole remedies (subject... -
Page 26: Benchmark Checklist
demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission this equipment to the manufacturer’s instructions may invalidate the warranty but does not affect statutory rights. MAINS PRESSURE HOT WATER STORAGE SYSTEM COMMISSIONING CHECKLIST Customer name: Telephone number: Address:... -
Page 27: Benchmark Service Record
SERVICE RECORD It is recommended that your hot water system is serviced regularly and that the appropriate Service Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. SERVICE 01 SERVICE 02 Date:... - Page 28 Due to a programme of continuous improvement Panasonic reserve the right to modify products without prior notice. It is advisable to check the product technical detail by using the latest design and installation manuals available from our technical support team or on our website.
