inStallation and Maintenance inStructionS
FMM-1 Monitor Module
SpeciFicationS
Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
EOL Resistance:
Maximum IDC Wiring Resistance:
Maximum IDC Voltage:
Maximum IDC Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
BeFore inStalling
This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
general deScription
The FMM-1 Monitor Module is intended for use in intelligent, two-wire sys-
tems, where the individual address of each module is selected using the built-
in rotary switches. It provides either a 2-wire or 4-wire fault tolerant initiating
device circuit (IDC) for normally open contact fire alarm and supervisory de-
vices, or either normally open or normally closed security devices. The mod-
ule has a panel controlled LED indicator. The FMM-1 can be used to replace
an MMX-1 module in existing systems. FMM-1 is also UL Listed as a com-
mercial proprietary burglar alarm accessory and a commercial central station
burglar alarm accessory.
coMpatiBility requireMentS
To ensure proper operation, this module shall be connected to a compatible
Notifier system control panel (list available from Notifier).

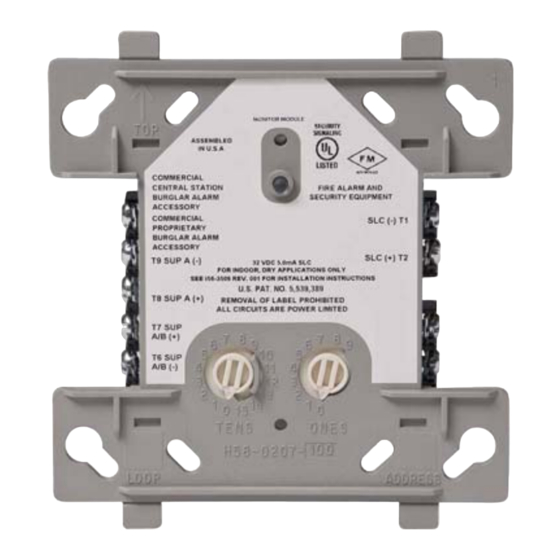

Figure 1. controlS and indicatorS:
NO-460-010
15 to 32 VDC
5.0 mA (LED on)
375 µA (group poll); 350 µA (direct poll); 600 µA Max. (Communicating, IDC Shorted)
47K Ohms
1,500 Ohms
11 Volts
450µA
32°F to 120°F (0°C to 49°C)
10% to 93% Non-condensing
4 1 ⁄ ˝ H x 4˝ W x 1 1 ⁄ ˝ D (Mounts to a 4˝ square by 2
2 4
SMB500 Electrical Box
C1067-00
1 ⁄ ˝ deep box.)
8
Mounting
The FMM-1 mounts directly to 4-inch square electrical boxes (see Figure 2).
The box must have a minimum depth of 2
cal boxes (SMB500) are available from Notifier.
Figure 2. Module Mounting:
NOTE: For UL Listed security installations, the FMM-1 must be mounted
within the control panel enclosure.
Wiring
NOTE: All wiring must conform to applicable local codes, ordinances, and
regulations. This module is intended for power limited wiring only.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), as shown in
Figure 2.
1
12 Clintonville Road
Northford, CT 06472-1653
Phone: 203.484.7161
1 ⁄ inches. Surface mounted electri-
8
ISOLATED
QUADRANT
C1066-00
