Summary of Contents for Makita ST001G

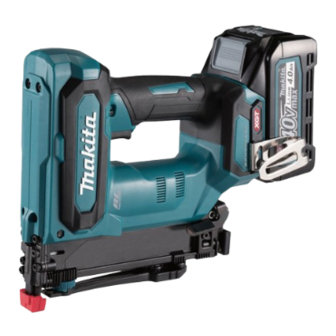

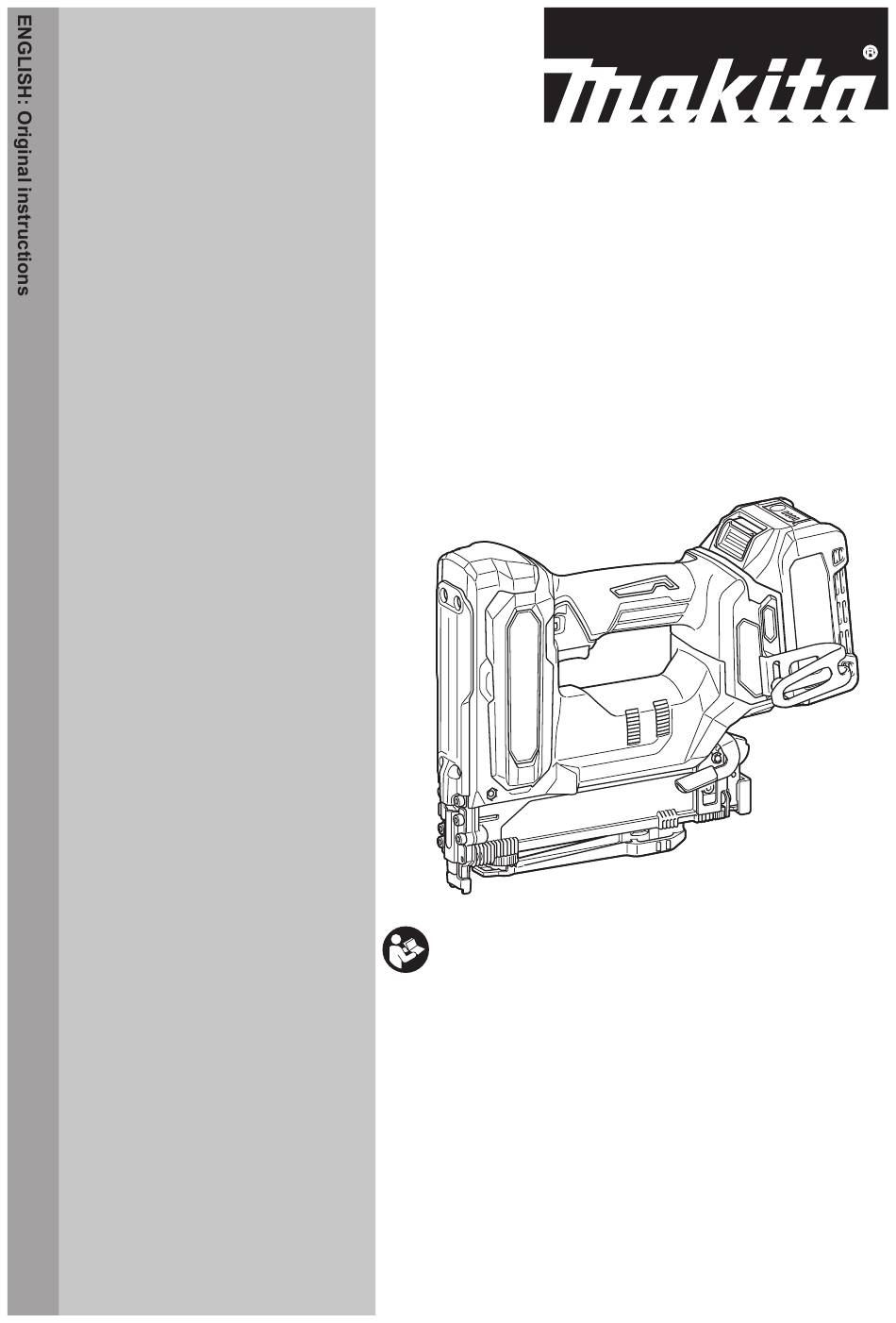

- Page 1 INSTRUCTION MANUAL Cordless Stapler ST001G ST002G Read before use.
-
Page 2: Specifications
The typical A-weighted noise level determined accord- for the equipment. Be sure that you understand their ing to EN60745-2-16: meaning before use. Model ST001G Sound pressure level (L ) : 82 dB (A) Read instruction manual. Sound power level (L... -
Page 3: Declarations Of Conformity
Do not use any The vibration total value determined according to adapter plugs with earthed (grounded) power EN60745-2-16: tools. Unmodified plugs and matching outlets will Model ST001G reduce risk of electric shock. Vibration emission (a ) : 2.5 m/s or less Avoid body contact with earthed or grounded Uncertainty (K) : 1.5 m/s... - Page 4 If devices are provided for the connection of Use the power tool, accessories and tool bits dust extraction and collection facilities, ensure etc. in accordance with these instructions, tak- these are connected and properly used. Use of ing into account the working conditions and the work to be performed.
- Page 5 20. Always remove fasteners from the tool when Cordless stapler safety warnings not in use. SAVE THESE INSTRUCTIONS. Always assume that the tool contains fasten- ers. Careless handling of the stapler can result in unexpected firing of fasteners and personal injury. WARNING: DO NOT let comfort or familiarity with product (gained from repeated use) replace Do not point the tool towards yourself or any- strict adherence to safety rules for the subject...
-
Page 6: Functional Description
Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life Charge the battery cartridge before completely discharged. -
Page 7: Overload Protection
Allow the tool and battery together (with 75% to 100% the battery installed in the tool) to cool down until the lamp stops flashing. If no improvement has been 50% to 75% made after cooling, ask your local Makita Service Center. 25% to 50% Overdischarge protection 0% to 25% When the battery capacity is not enough, the tool stops automatically. - Page 8 Remove the battery cartridge from the tool, and then clear jams inside the magazine. If the tool does not restart after recovery, ask your local Makita Service Center. Fig.4 ► 1 . Adjuster 2. Depth guide 8 ENGLISH...
- Page 9 Load staples into the main magazine with their ASSEMBLY feet facing up. CAUTION: Always make sure that your fingers are not placed on the switch trigger or the contact element and the battery cartridge is removed before carrying out any work on the stapler.
-
Page 10: Operation
If the tool works in case 3 or 4 described above, safety system is not functioning properly. Stop using the tool immediately and ask your local Makita Service Center. Driving staples WARNING: Do not use this stapler for fasten- ing electrical cables. - Page 11 Release your finger from the switch trigger before NOTICE: The tool will not restart fastening moving the contact element from the material. after five seconds no switch operation while the You can also sequentially drive staples by pulling the contact element is placed on the workpiece. Pull switch trigger while dragging the tool to the next area the contact element free from the workpiece and with the contact element pressed against the material.
-
Page 12: Removing Jammed Staples
Move the tool to the next areas with the switch Checking remaining staples trigger pulled, and place flat the contact element on the material to drive following staples. Learn remaining staples in the magazine through the sight window. The pusher appears in the window and moves towards the firing opening as the amount of remaining staples becomes smaller. Fig.16 Fig.18 ► 1 . -
Page 13: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning magazine Clean the inside of the magazine at regular intervals. - Page 16 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885A09-223 www.makita.com 20221017...
