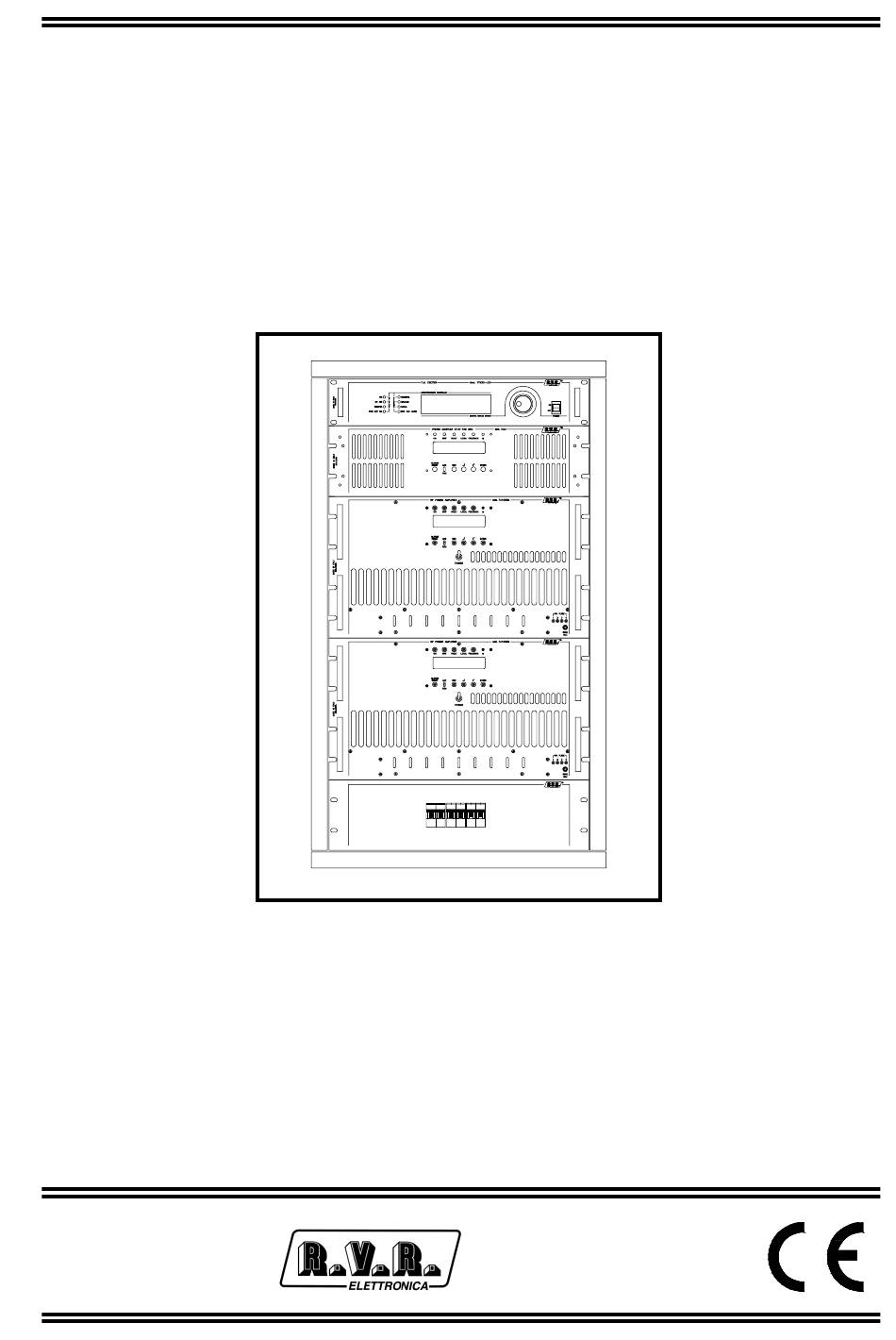

- Page 1 TX2000 User Manual Manufactured by Italy...
- Page 2 Limitations of use can apply in respect of operating freuency, transmitter power and/or channel spacing. Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
- Page 3 This page intentionally left blank...
- Page 4 02/12/2002 Revision History Version Date Reason Editor 02/12/2002 New version D. Canazza TX2000 - User Manual Versione 1.0 © Copyright 2002 R.V.R. Elettronica SpA Via del Fonditore 2/2c - 40138 - Bologna (Italia) Telefono: +39 051 6010506 Fax: +39 051 6011104 Email: info@rvr.it...

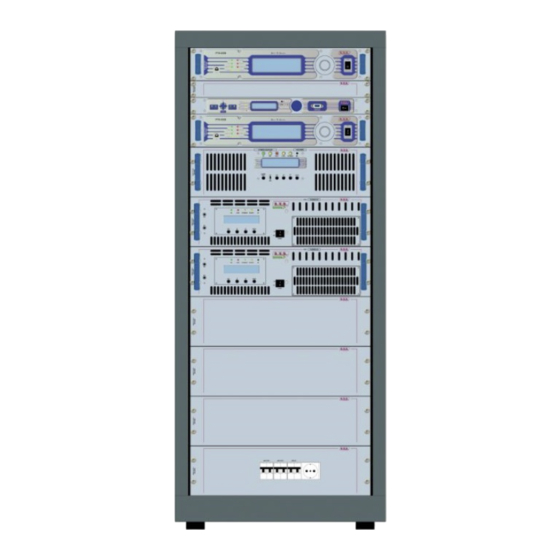

- Page 5 This chapter describes the different configurations the TX2000 can have. Please note that transmitters layouts given herein are reference ones; the height of the racks and the disposition of the modules may vary and will be specified at the time of placing the order.
- Page 6 TX2000 2.2 TX2KSSRD/RDS This version is the most complete version of the TX2000SS. With respect to the “essential” components, it features: • Double exciters (2 PTX30LCD/s); Double RDS encoders (2 TRDS4001); • Automatic change-over (SCM1+1 LCD); • • Telemetry unit (TLC300);...
- Page 7 TX2000 2.3 TX2KSSRD This version of the transmitter gives to the customer the benefit of redundant exciters and remote control. It is composed of: • Double exciters (2 PTX30LCD/s); Automatic change-over (SCM1+1 LCD); • Telemetry unit (TLC300); • Amplifier (PJ2000M).
- Page 8 TX2000 2.4 TX2KSSD/RDS This version of the transmitter gives redundant exciters and RDS coders. It consists of: • Double exciters (2 PTX30LCD/s); • Double RDS encoders (2 TRDS4001); Automatic change-over (SCM1+1 LCD); • Amplifier (PJ2000M). • 4 / 8 Rev. 1.0 - 02/12/02...
- Page 9 TX2000 2.5 TX2KSSD This version is composed of: Double exciters (2 PTX30LCD/s); • • Automatic change-over (SCM1+1 LCD); • Amplifier (PJ2000M). User Manual Rev. 1.0 - 02/12/02 5 / 8...
- Page 10 TX2000 2.6 TX2KSSR/RDS This version of the transmitter is tele-controllable and includes the RDS coder. It is composed of: • Exciter (PTX30LCD/s); RDS encoder (TRDS4001); • Telemetry unit (TLC300); • • Amplifier (PJ2000M). 6 / 8 Rev. 1.0 - 02/12/02...
- Page 11 TX2000 2.7 TX2KSSR This is the simplest telemetrized version of the TX500SS. This version is composed of: • Exciter (PTX30LCD/s); Telemetry unit (TLC300); • Amplifier (PJ2000M). • User Manual Rev. 1.0 - 02/12/02 7 / 8...
- Page 12 TX2000 2.8 TX2000SS/V2 This version is composed of: • Exciter (PTX30LCD/s); • Amplifier (PJ2000M). 8 / 8 Rev. 1.0 - 02/12/02 User Manual...
