Grizzly T33254 Instructions

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33254 9-Drawer Tool Chest requires
some assembly. Follow the instructions below for
assembly, operation, and maintenance.

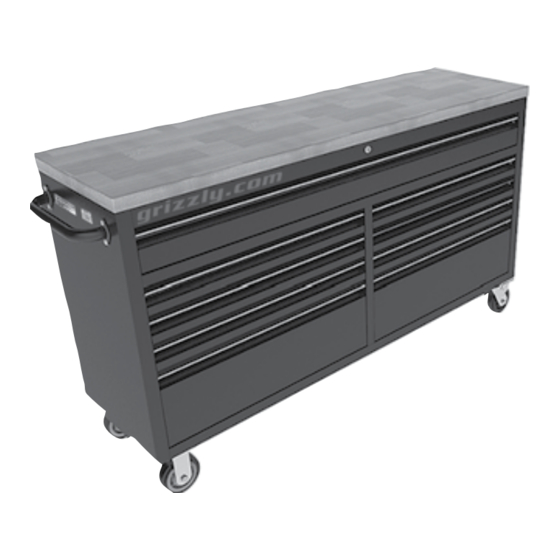

Figure 1. Model T33254.
• To reduce risk of crushing injuries from
tool chest tipping over on you:
— Do not stand on tool chest or in drawers.
— Keep wheels locked and turned facing
front of tool chest.
— Push tool chest only. Do not pull it.
— Only open one drawer at a time.
— Only move or transport tool chest with
all drawers closed and locked.
• Do not exceed weight capacities:
— Max individual drawer weight limit
is 100 lbs.
— Max tool chest weight limit (including
contents) is 1150 lbs.
• To prevent accidental rolling, always lock
brakes after moving tool chest.
• Do not allow children to have unsupervised
access to tool chest.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © MARCH, 2022 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 04/22) #SS22258 PRINTED IN CHINA
***Keep for Future Reference***
MODEL T33254
61" 9-DRAWER
TOOL CHEST
INSTRUCTIONS
Inventory
Description
•
Tool Chest with Drawers ............................ 1
• Fixed Casters ............................................. 2
•
Swivel Casters with Brake .......................... 2
• Handles ...................................................... 2
•
Keys ............................................................ 2
• Hex Bolts ⁄ "-20 x
1
4
•
Hex Bolts ⁄ "-16 x 1"................................. 16
3
8
•
Power Cord ................................................. 1
Note: Some inventory items may be stored in
drawers.
Needed for Setup
Description
• Additional Person ....................................... 1
• Open-End Wrenches
Assembly
1.
Attach handle to each side of tool chest with
" hex bolts (see Figure 2). Do
(4) ⁄ "-20 x ⁄
1 1
4 2
not over-tighten!
Handle
(1 of 2)
x 4
Figure 2. Handle installed.
⁄ " ................................. 8
1
2
⁄ ", ⁄ " ..............1 Ea.
7 9
16 16
V1.03.22
