Operating Guide
Read this document when using the AK-HRP1005G Remote Operation Panel in
conjunction with AW-UE80/AW-UE50/AW-UE40 4K Integrated Camera.
For details of operating Remote Operation Panel AK-HRP1005G, please visit
the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html),
and refer to the Operating Instructions (HTML or PDF).
W1122AM0 -PS

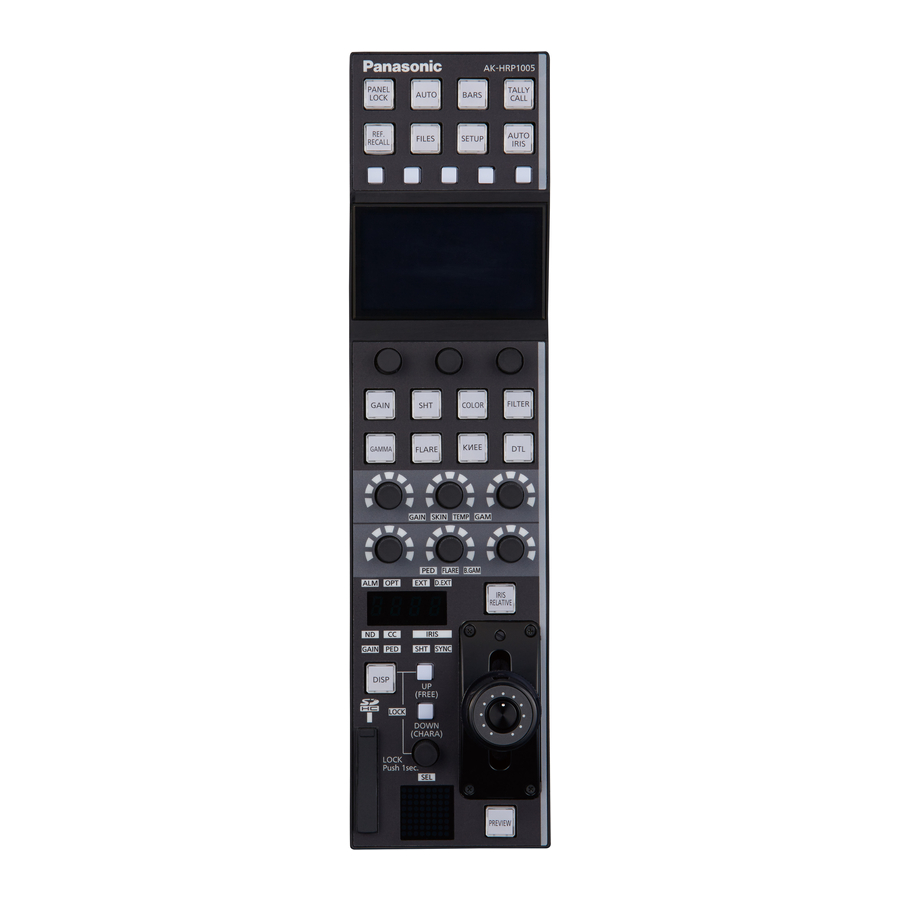

Remote Operation Panel
AK-HRP1005G
Model No.
ENGLISH
DVQP2898ZA
Advertisement
Table of Contents
Related Manuals for Panasonic AK-HRP1005G
Summary of Contents for Panasonic AK-HRP1005G
- Page 1 Operating Guide Remote Operation Panel AK-HRP1005G Model No. Read this document when using the AK-HRP1005G Remote Operation Panel in conjunction with AW-UE80/AW-UE50/AW-UE40 4K Integrated Camera. For details of operating Remote Operation Panel AK-HRP1005G, please visit the Panasonic website (https://pro-av.panasonic.net/manual/en/index.html), and refer to the Operating Instructions (HTML or PDF).
-
Page 2: Table Of Contents
Table of Contents Connecting the Unit to AW-UE80/AW-UE50/AW- UE40 Cameras Connection Example Connections Compatible Functions List ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) ROP Menu List 01 SCENE 02 SHUTTER SPEED 03 FILTER 04 PEDESTAL 05 CHROMA 06 GAIN 07 WHITE BALANCE 08 GAMMA 09 KNEE 10 WHITE CLIP... -
Page 3: Connecting The Unit To Aw-Ue80/Aw-Ue50/Aw-Ue40 Cameras
Connecting the Unit to AW-UE80/AW-UE50/AW-UE40 Cameras Connecting the Unit to AW-UE80/AW-UE50/AW-UE40 Cameras Connection Example IP connection with AW-UE80 IP connection with AW-UE50/AW-UE40 The figure shows a connection example with the AW-UE40 model. 4K Integrated Camera AW-UE80 4K Integrated Camera AW-UE50/AW-UE40 <LAN LINK/ACT>... -
Page 4: Connections
Connecting the Unit to AW-UE80/AW-UE50/AW-UE40 Cameras Connections Set the connection settings to “LAN (AW6)” in the [CONNECT SETTING] menu. When connecting, observe the following points. Connect the <LAN> connector on this unit to the <LAN LINK/ACT> connector on the AW-UE80/AW-UE50/AW-UE40 using a LAN cable (sold separately). -
Page 5: Compatible Functions List
Connecting the Unit to AW-UE80/AW-UE50/AW-UE40 Cameras Compatible Functions List When the unit is used in conjunction with an AW-UE80/AW-UE50/AW-UE40 4K Integrated Camera, there will be functions that are limited or disabled for some of the unit's buttons, dials, and other controls. Be sure to refer to the following table. Front panel 1 Front panel 2 Front panel 3... - Page 6 Connecting the Unit to AW-UE80/AW-UE50/AW-UE40 Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ [GAIN] button When this button is pressed, the gain menu appears on the LCD panel. The button is lit dur- ing menu display. ✓ [SHT] button When this button is pressed, the shutter menu appears on the LCD panel.
- Page 7 Connecting the Unit to AW-UE80/AW-UE50/AW-UE40 Cameras ✓ : Enabled Number Part name Remarks ×: Disabled ✓ [ALM] indicator [OPT] indicator × [EXT] indicator × ✓ [D.EXT] indicator ✓ Adjustment value display The adjustment value of the CC filter is not dis- played.
-
Page 8: Rop Menu
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) ROP Menu (during AW-UE80/AW-UE50/AW-UE40 con- nection) ROP Menu List When an AW-UE80/AW-UE50/AW-UE40 4K Integrated Camera is connected, the ROP menu will be as follows. Setting values differ according to the model to be connected. Functions not supported depending on the model are indicated with [-]. NOTE To use the menu features of AW-UE80, AW-UE50 and AW-UE40, upgrade their unit system versions to the following: AW-UE80: System version 5.12-00-0.00 or later... - Page 9 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) “MASTER DTL” (see page 25) MASTER DTL CORING “CORING” (see page 25) V DTL LEVEL “V DTL LEVEL” (see page 25) 12 DETAIL SKIN DTL “SKIN DTL” (see page 25) “SKIN DTL EFFECT” (see page 25) SKIN DTL EFFECT “DTL SW”...
- Page 10 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) “TYPE” (see page 28) TYPE ADAPTIVE MATRIX “ADAPTIVE MATRIX” (see page 28) COLOR CORRECT “COLOR CORRECT” (see page 28) “SAT” (see page 28) “PHASE” (see page 28) PHASE “SAT B_Mg” (see page 28) SAT B_Mg “PHASE B_Mg”...
- Page 11 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) “FOCUS MODE” (see page 32) FOCUS MODE FOCUS SPEED “FOCUS SPEED” (see page 32) FOCUS “FOCUS” (see page 32) ZOOM TELE “ZOOM TELE” (see page 32) “ZOOM SPEED” (see page 32) ZOOM SPEED 17 LENS CONTROL “ZOOM WIDE”...
- Page 12 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) IRIS LEV MODE Refer to the following section in the Operating Instructions. “37 ROP SETTING” M.PED CONT LOCK SELECT AUTO BUTTON G/M PED VOL FREE+LOCK CAM SEL DTL BUTTON SKIN VOL LCD BRIGHT PANEL BRIGHT B.GAMMA VOL BUZZER PERIOD...
- Page 13 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) IP ADDRESS 1 Refer to the following section in the Operating Instructions. “39 ROP IP SETTING” IP ADDRESS 2 IP ADDRESS 3 IP ADDRESS 4 IP ADDRESS PORT IP ADDRESS UPLOAD SUBNET MASK 1 23 ROP IP SETTING SUBNET MASK 2 SUBNET MASK 3 SUBNET MASK 4...
-
Page 14: Scene
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 01 SCENE Item Setting details SCENE1(push) Switches the scene file. Switches to the scene set to ON. SCENE2(push) SCENE3(push) SCENE4(push) - 14 -... -
Page 15: Shutter Speed
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 02 SHUTTER SPEED Item Setting details MODE Selects the operation mode of the shutter. SPEED Sets the shutter speed. Sets the maximum shutter value for ELC operation. - 15 -... -
Page 16: Filter
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 03 FILTER Item Setting details Sets the transmittance of the lens’ built-in ND (neutral density) filter. Functional only when connected to the AW-UE80. - 16 -... -
Page 17: Pedestal
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 04 PEDESTAL Item Setting details M.PED Adjusts the black level of the master pedestal. - 17 -... -
Page 18: Chroma
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 05 CHROMA Item Setting details LEVEL Sets the color intensity of images. PHASE Finely adjusts the color phase of images. - 18 -... -
Page 19: Gain
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 06 GAIN Item Setting details SUPER GAIN Sets the super gain (increased sensitivity) to ON/OFF. GAIN Adjusts the gain of images. AGC MAX GAIN When “AUTO” is selected as the [GAIN] setting, the maximum gain-up amount can be set. - 19 -... -
Page 20: White Balance
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 07 WHITE BALANCE Item Setting details MODE Sets the white balance mode. COLOR TEMP Sets color temperature settings. GAIN OFFSET Sets the [GAIN R] and [GAIN B] values when the [MODE] is set to “AWB A” or “AWB B”. GAIN R Adjusts the R gain. -
Page 21: Gamma
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 08 GAMMA Item Setting details MODE Selects the type of gamma curve. GAMMA Sets the gamma. - 21 -... -
Page 22: Knee
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 09 KNEE Item Setting details MODE Sets the operating mode for gradation compression (knee). When [DRS] is enabled, the knee settings are disabled. - 22 -... -
Page 23: White Clip
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 10 WHITE CLIP Item Setting details WHITE CLIP Sets the white clip function to ON/OFF. WHITE CLP LV Sets the white clip level. - 23 -... -
Page 24: Drs
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 11 DRS Item Setting details Sets the DRS function, which performs correction when video with high light/dark contrast is displayed, to ON/OFF. - 24 -... -
Page 25: Detail
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 12 DETAIL Item Setting details MASTER DTL Adjusts the contour correction level (master). CORING Sets the level of signal (including noise) that does not activate the detail effect. V DTL LEVEL Adjusts the vertical contour correction level. SKIN DTL Sets the function to make the skin of subjects appear smoother and more attractive to ON/OFF. -
Page 26: Matrix
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 13 MATRIX Item Setting details TYPE Selects the type of color matrix. ADAPTIVE MATRIX Turns ON/OFF the function to suppress the linear matrix according to the shooting conditions. Adjusts the linear matrix between red and green. Adjusts the linear matrix between red and blue. -
Page 27: Color Correction
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 14 COLOR CORRECTION - 27 -... - Page 28 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) Item Setting details TYPE Selects the type of color matrix. ADAPTIVE MATRIX Turns ON/OFF the function to suppress the linear matrix according to the shooting conditions. COLOR CORRECT Selects the color component in 12-axis matrix memory to adjust. Adjusts the saturation of the color component selected in [COLOR CORRECT].
- Page 29 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) Item Setting details PHASE Mg_R_R Adjusts the hue with a 1:3 magenta to red ratio. SAT R Adjusts red color saturation. PHASE R Adjusts red hue. SAT R_R_YL Adjusts the color saturation with a 3:1 red to yellow ratio. PHASE R_R_YL Adjusts the hue with a 3:1 red to yellow ratio.
-
Page 30: Dnr
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 15 DNR Item Setting details Sets the level for the noise reduction. - 30 -... -
Page 31: Brightness
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 16 BRIGHTNESS Item Setting details PICTURE LEVEL Sets the target picture level for auto exposure correction. FRAME MIX Selects for frame addition (gain-up using sensor storage) amount. DAY/NIGHT Switches between standard shooting (day mode) and night-vision shooting (night mode: shooting with infrared light). -
Page 32: Lens Control
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 17 LENS CONTROL Item Setting details FOCUS MODE Selects auto or manual mode for the focus adjustment function. FOCUS SPEED Adjusts the focus operation speed. FOCUS Adjusts the lens focus manually. ZOOM TELE Adjusts the lens zoom to telephoto (Tele). ZOOM SPEED Adjusts the zoom operation speed. -
Page 33: Iris Relative
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 18 IRIS RELATIVE Item Setting details SENSE Adjusts the iris variable range for when the iris lever is moved from the center to the top and bottom ends. COARSE Use this dial to adjust the iris value when the IRIS lever is moved to the center. RELATIVE When this is set to “ON”, the iris lever's variable range is not dependent on the [SENSE] and [COARSE] set- tings and will include the entire range between OPEN and CLOSE. -
Page 34: System Cam
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 19 SYSTEM CAM Item Setting details FORMAT Displays the system format. FREQUENCY Indicates the frame frequency. 3G SDI OUT Selects the format to output 3G SDI signals when the video format of 3G SDI is “1080/59.94p” or “1080/50p”. I.S. - Page 35 ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) Item Setting details OSD IP Turns ON/OFF the display for camera menu, status and other information on image outputs other than NDI from the <LAN> connector. OSD STATUS Sets ON/OFF for status display and error display during AWB and ABB execution. AUDIO Sets the audio input to ON/OFF.
-
Page 36: Camera Menu Control
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 20 CAMERA MENU CONTROL Item Setting details MENU ON/OFF Turns the menu ON/OFF. CURSOR/PARAMETER Moves the menu cursor or changes setting values. EXECUTE Executes the selected process. - 36 -... -
Page 37: Rop Setting
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 21 ROP SETTING For details on operations and settings, refer to the following sections in the Operating Instructions. “37 ROP SETTING” - 37 -... -
Page 38: Connect Setting
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 22 CONNECT SETTING Item Setting details CONNECT MODE(push) CAM1 Sets the connection method for camera 1. Changes to settings are applied by pressing the menu operation dial. Select “LAN (AW6)” when connecting to AW-UE80, AW-UE50 or AW-UE40. CONNECT MODE(push) CAM2 Sets the connection method for cameras 2 to 99. -
Page 39: Rop Ip Setting
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 23 ROP IP SETTING For details on operations and settings, refer to the following sections in the Operating Instructions. “39 ROP IP SETTING” 24 CAMERA IP SETTING For details on operations and settings, refer to the following sections in the Operating Instructions. “40 CAMERA IP SETTING”... -
Page 40: Auto Iris Setting
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 25 AUTO IRIS SETTING Item Setting details IRIS SPEED Sets the control speed of the auto iris function. IRIS WINDOW Selects the auto iris detection window. - 40 -... -
Page 41: Switcher Link
ROP Menu (during AW-UE80/AW-UE50/AW-UE40 connection) 26 SWITCHER LINK For details on operations and settings, refer to the following sections in “Functions Added by Version Updates”. “Functions linking with AV-HS6000” 27 AW CONTROLLER LINK For details on operations and settings, refer to the following sections in “Functions Added by Version Updates”. “Function linking with AW-RP150”...
