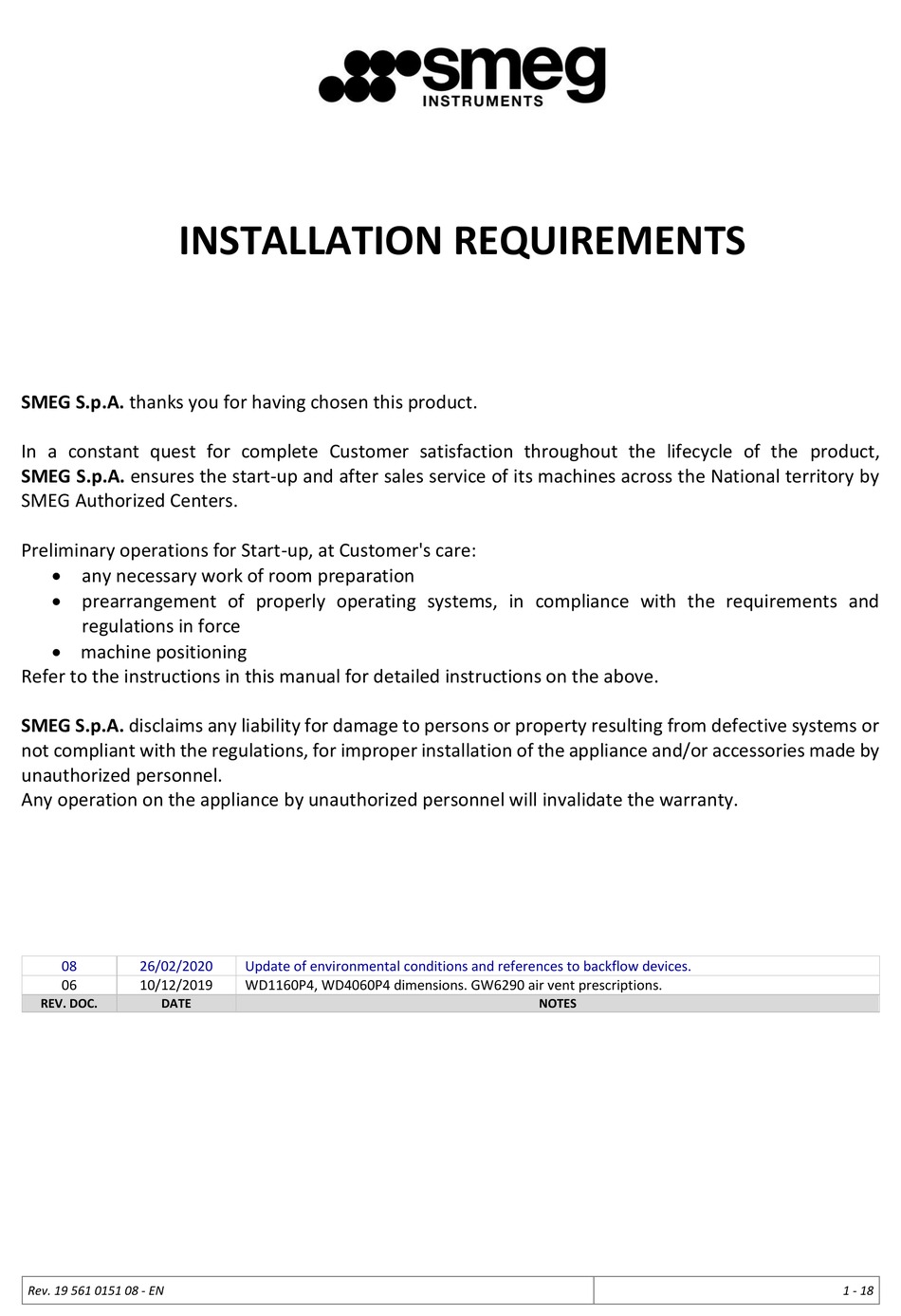

INSTALLATION REQUIREMENTS
SMEG S.p.A. thanks you for having chosen this product.
In a constant quest for complete Customer satisfaction throughout the lifecycle of the product,
SMEG S.p.A. ensures the start-up and after sales service of its machines across the National territory by
SMEG Authorized Centers.
Preliminary operations for Start-up, at Customer's care:
any necessary work of room preparation
prearrangement of properly operating systems, in compliance with the requirements and
regulations in force
machine positioning
Refer to the instructions in this manual for detailed instructions on the above.
SMEG S.p.A. disclaims any liability for damage to persons or property resulting from defective systems or
not compliant with the regulations, for improper installation of the appliance and/or accessories made by
unauthorized personnel.
Any operation on the appliance by unauthorized personnel will invalidate the warranty.
08
26/02/2020
06
10/12/2019
REV. DOC.
DATE
Rev. 19 561 0151 08 - EN
Update of environmental conditions and references to backflow devices.
WD1160P4, WD4060P4 dimensions. GW6290 air vent prescriptions.
NOTES
1 - 18
