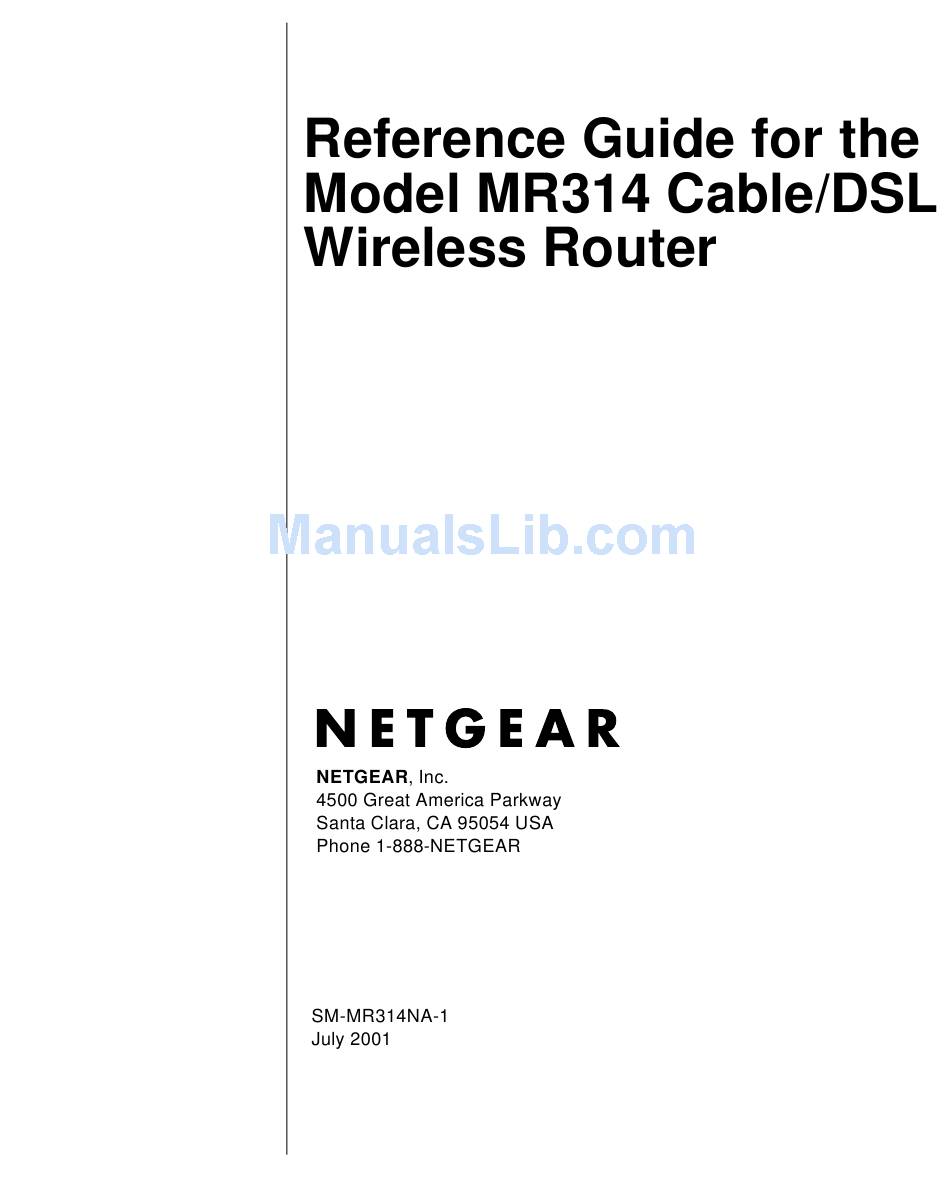

NETGEAR MR314 Reference Manual

Cable/dsl wireless router
Hide thumbs Also See for MR314:

Advertisement

Advertisement

loading

Summary of Contents for NETGEAR MR314

  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 Radio Interference Regulations of the Canadian Department of Communications. This is to certify that the Model MR314 Cable/DSL Wireless Router is shielded against the generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class B (CISPR 22).
  • Page 13 The Model MR314 router provides continuous, high-speed 11 Mbps access between your wireless and Ethernet devices. In addition, the Model MR314 router connects your entire network to the Internet through an external broadband access device (such as a cable modem or DSL modem) that is normally intended for use by a single PC.
  • Page 14 For more information about address assignment, refer to the IETF documents RFC 1597, and RFC 1466, For more information about IP address translation, refer to RFC 1631,...
  • Page 15 This guide uses the following typographical conventions: Book titles and UNIX file, command, and directory names. Screen text, user-typed command-line entries. Initial Caps Menu titles and window and button names. [Enter] Named keys in text are shown enclosed in square brackets. The notation [Enter] is used for the Enter key and the Return key.
  • Page 17 The Model MR314 Cable/DSL Wireless Router provides continuous, high-speed 11 Mbps access between your wireless and Ethernet devices. In addition, the Model MR314 router connects your entire network to the Internet through an external broadband access device (such as a cable modem or DSL modem) that is normally intended for use by a single PC.
  • Page 18 • Security – Parental control of web browsing and newsgroup access using Web Address (URL) keyword blocking – Auditing and e-mail reporting of web browsing activities – Blocking can be scheduled by day and time – Network Address Translation (NAT) hides local PCs from the Internet –...
  • Page 19 • Logging of inappropriate use You can configure the Model MR314 router to log access to Web sites and to e-mail the log to you. You can also configure the router to send an immediate alert e-mail message to you whenever a local user attempts to access a blocked Web site.
  • Page 20 64-bit (sometimes referred to as 40-bit) and 128-bit Wired Equivalent Privacy (WEP) data encryption with Shared Key authentication. With its internal, 4-port 10/100 switch, the Model MR314 router can connect to either a 10 Mbps standard Ethernet network or a 100 Mbps Fast Ethernet network. The local LAN interface is autosensing and is capable of full-duplex or half-duplex operation.
  • Page 21 Web Management Interface. • Visual monitoring The Model MR314 router’s front panel LEDs provide an easy way to monitor its status and activity. NETGEAR offers the following features to help you maximize your use of the Model MR314 router: •...
  • Page 23 Registration and Warranty Card • Support Information Card If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the carton, including the original packing materials, in case you need to return the router for repair. CD, including:...
  • Page 24 The Model MR314 Cable/DSL Wireless Router is intended for use in a network of personal computers (PCs) that are interconnected by 802.11b-compliant wireless adapters or twisted-pair Ethernet cables. To install and run the Model MR314 router over your network of PCs, each PC must have the following: •...
  • Page 25 You can use some of the LEDs to verify connections. Table 2-1 lists and describes each LED on the front panel of the Model MR314 router. These LEDs are green when lit, except for the TEST LED which is amber.
  • Page 26 The rear panel of the Model MR314 router connection, and an antenna: The rear panel contains the following features: • Antenna • 12 VDC power adapter outlet • Internet Ethernet port for connecting the router to a cable or DSL modem •...
  • Page 27 Your IP address must be in the range of 192.168.0.2 to 192.168.0.254, with a netmask of 255.255.255.0. The Model MR314 router incorporates a four-port switch for connection to your local Ethernet network. The Ethernet ports are marked LOCAL, and are capable of operation at either 10 Mbps (10BASE-T) or 100 Mbps (100BASE-Tx), depending on the Ethernet interface of the attached PC, hub, or switch.
  • Page 28 • Connect any LOCAL port of your Model MR314 router to any port of an Ethernet hub or switch using a standard or crossover Ethernet cable. Because the Model MR314 router is capable of automatically sensing the polarity of the Ethernet connection, you can connect to the other hub’s normal or uplink port, using a...
  • Page 29 After approximately 30 seconds, verify that: The TEST LED is not lit. The WIRELESS ON LED is lit. The LOCAL LNK/ACT LEDs are lit for any local ports that are connected. The INTERNET LNK LED is lit. If a LNK or LNK/ACT LED is lit, a link has been established to the connected device. If a LOCAL port is connected to a 100 Mbps device, verify that the 100 LED is lit.
  • Page 31 This chapter describes how to prepare your PC network to connect to the Internet through the Model MR314 Cable/DSL Wireless Router and how to order broadband Internet service from an Internet service provider (ISP). The Model MR314 Cable/DSL Wireless Router uses the Transmission Control Protocol/Internet Protocol (TCP/IP).
  • Page 32 Appendix B, “Network and Routing The Model MR314 router is shipped preconfigured as a DHCP server. The router assigns the following TCP/IP configuration information automatically when the PCs are rebooted: •...
  • Page 33 You must have a network adapter, the TCP/IP protocol, and Client for Microsoft Networks. It is not necessary to remove any other network components shown in the Network window in order to install the adapter, TCP/IP, or Client for Microsoft Networks.
  • Page 34 The simplest way to configure this information is to allow the PC to obtain the information from the internal DHCP server of the Model MR314 router. If an ISP technician configured your PC during the installation of a broadband modem, or if you configured it using instructions provided by your ISP, you may need to copy the current configuration information for use in the configuration of your router.
  • Page 35 Select your network adapter. The window is updated to show your settings, which should match the values below if you are using the default TCP/IP settings that NETGEAR recommends: • The IP address is between 192.168.0.2 and 192.168.0.31 •...
  • Page 36 The TCP/IP Control Panel opens: From the “Connect via” box, select your Macintosh’s Ethernet interface. From the “Configure” box, select Using DHCP Server. You can leave the DHCP Client ID box empty. Close the TCP/IP Control Panel. Repeat this for each Macintosh on your network. After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by returning to the TCP/IP Control Panel.
  • Page 37 The panel is updated to show your settings, which should match the values below if you are using the default TCP/IP settings that NETGEAR recommends: • The IP Address is between 192.168.0.2 and 192.168.0.31 • The Subnet mask is 255.255.255.0 •...
  • Page 38 As mentioned above, you may need to collect configuration information from your PC so that you can use this information when you configure the Model MR314 router. Following this procedure is only necessary when your ISP does not dynamically supply the account information.
  • Page 39 As mentioned above, you may need to collect configuration information from your Macintosh so that you can use this information when you configure the Model MR314 router. Following this procedure is only necessary when your ISP does not dynamically supply the account information.
  • Page 40 Close the TCP/IP Control Panel. After configuring all of your PCs for TCP/IP networking and connecting them to the LOCAL network of your Model MR314 router, you are ready to access and configure the router. Proceed to the next chapter.
  • Page 41: Configuring For Internet Access

    This chapter describes how to perform the basic configuration of your Model MR314 Cable/DSL Wireless Router using the Setup Wizard, which walks you through the configuration process for your Internet connection. This chapter also describes the configuration for content filtering and reporting.
  • Page 42 A login window opens as shown in Figure 4-1 below:. This screen may have a different appearance in other browsers. Type in the User Name box, in the Password box, and then click OK. If your router password was previously changed, enter the current password.
  • Page 43 In the opening screen, shown in Figure 4-2, select WIZARD SETUP.
  • Page 44 In the first Wizard screen, enter your account’s Host Name and Domain Name, as shown in Figure 4-3 below: These parameters may be necessary to access your ISP’s services such as mail or news servers. If you leave the Domain Name field blank, the router will attempt to learn the domain automatically from the ISP.
  • Page 45 Click on Next to go to the Wireless LAN Setup screen, shown in This screen configures the basic parameters of your wireless interface: ESSID: All wireless-connected devices on your network must be configured with the same ESSID in order to communicate with each other. The default is capitalization).
  • Page 46 Click on Next to go to the ISP Parameters screen, shown in This screen determines whether a login program will be run. If your service provider does not require a login program, leave Encapsulation as Ethernet and proceed to Step 10. If your service provider uses PPP over Ethernet (PPPoE), select Encapsulation as PPPoE, and enter these additional parameters: •...
  • Page 47 • If provided by your ISP, enter your PPTP IP Address and the Server IP Address of their PPTP Server. • If provided by your ISP, enter the Connection ID/Name for your service. Otherwise leave this field blank. Proceed to Step 10. If your service provider is RoadRunner AND you are required to run a RoadRunner login program, leave Encapsulation as Ethernet and select Service Type as either RR-Manager or RR-Toshiba.
  • Page 48 Click on Next to go to the final Wizard screen shown in This screen provides setup for the following parameters: WAN IP Address Assignment: Unless your ISP has assigned a fixed permanent IP address for your use, select "Get automatically from ISP". Otherwise, enter your IP Address, Subnet Mask, and the IP Address of your ISP’s gateway router.
  • Page 49 ISP. The browser should begin to display a Web page. The next section describes how to configure the security features of your router. The Model MR314 Cable/DSL Wireless Router provides you with Web content filtering options, plus browsing activity reporting and instant alerts via e-mail. Parents and network administrators can establish restricted access policies based on time-of-day, web and newsgroup addresses and web and newsgroup address keywords.
  • Page 50 In order to receive logs and alerts by email, you must provide your email information in the E-Mail tab: • Mail Server Specifies the name of your outgoing (SMTP) mail server. You can enter either the server name (such as mail.myISP.com) or its IP Address. If you leave this box blank, log and alert messages are not sent via e-mail.
  • Page 51 In this case, the router overwrites the log and discards its contents. The Model MR314 router uses the Network Time Protocol (NTP) to obtain the current time and date from one of several Network Time Servers on the Internet. This menu displays the current time.
  • Page 52 If you wish to block all Internet browsing access during a scheduled period, enter the keyword “.” and set the schedule in the Schedule menu. The Model MR314 router allows you to specify when blocking will be enforced. The Schedule tab is shown below: •...
  • Page 53 The Model MR314 router allows you to specify one Trusted User, which is a PC that will be exempt from blocking and logging. Since the Trusted User will be identified by an IP address, you should configure that PC with a fixed IP address.
  • Page 54 The log is a detailed record of what websites you have accessed or attempted to access. Up to 128 entries are stored in the log. Log entries will only appear when keyword blocking is enabled, and no log entries will be made for the Trusted User. Log entries are described in The index number of the content filter log entries.
  • Page 55 Log viewing buttons are described in Previous Page Click this button to view the previous log page. Refresh Click this button to refresh the log screen. Clear Click this button to clear the log entries. Click this button to view the next log page. Next Page Table 4-2...
  • Page 57 This chapter describes how to configure the advanced features of your Model MR314 Cable/DSL Wireless Router. These features can be found by clicking on the Advanced heading in the Main Menu of the browser interface. The first feature category under the Advanced heading is System settings. These are general purpose settings.
  • Page 58 To utilize this service, you must register with the Dynamic DNS service provider, who will give you a password or key. At this time, the Model MR314 router only supports DynDNS service. For more information, visit www.dyndns.org.
  • Page 59 Advanced, click on LAN to view the LAN Setup menu, shown in Figure 5-1 The Model MR314 router have the capability to act as a DHCP server, allowing them to assign IP, DNS, and default gateway addresses to attached PCs. The assigned default gateway address is the LAN address of the router.
  • Page 60 Table 5-2 lists and describes the fields to use for setting up DHCP parameters.. Table 5-3 lists and describes the fields to use for setting up TCP/IP parameters for the LAN..
  • Page 61 If you change the LAN IP address of the router while connected through the browser or Telnet, you will be disconnected. You must then open a new connection to the new IP address and log in again. The third feature category under the Advanced heading is Wireless LAN Setup, allowing configuration of the wireless link.
  • Page 62 From the Main Menu of the browser interface, under Advanced, click on Wireless to view the Wireless Setup menu, shown in Figure 5-2 Table 5-4 lists and describes the fields to use for setting up Wireless parameters..
  • Page 63 If you are configuring the router from a wireless PC and you change the router’s ESSID or WEP settings, you will lose your wireless connection when you click on Apply. You must then change the wireless settings of your PC to match the router’s new settings.
  • Page 64 An additional menu of the Wireless Setup allows you to restrict access to the wireless network to only allow specific PCs. The Wireless Access Filter menu shown in To restrict access using this menu: Enable the Wireless Access Filter by clicking the Yes button. Obtain the Ethernet MAC address of the wireless interface card of each authorized PC.
  • Page 65 Unlike wired network data, your wireless data transmissions can extend beyond your walls and can be received by anyone with a compatible adapter. For this reason, NETGEAR strongly recommends that you make use of the security features of your wireless equipment. As a minimum security precaution, you should change the ESSID setting of all devices on your network from the factory setting to a unique password.
  • Page 66 Although the router causes your entire local network to appear as a single machine to the Internet, you can make local servers for different services (for example, FTP or HTTP) visible and available to the Internet. This is done using the PORTS menu. From the Main Menu of the browser interface, under Advanced, click on PORTS to view the port forwarding screen, shown in Figure 5-4 Requested services are identified by port numbers in an incoming IP packet.
  • Page 67 Use the PORTS menu to configure the router to forward incoming protocols to IP addresses on your local network based on the port number. In addition to servers for specific protocols, you can also specify a Default (also called DMZ) Server to which all other incoming protocols are forwarded.
  • Page 68 Some online games and videoconferencing applications are incompatible with NAT. The Model MR314 router is programmed to recognize some of these applications and to work properly with them, but there are other applications that may not function well. In some cases, one local PC can run the application properly if that PC’s IP address is entered as the default in...
  • Page 69 To add or edit a Static Route, select a number and click the Edit button to open the Edit Menu, shown in Figure 5-6 Table 5-6 lists and describes the fields for the IP Static Route Edit menu.
  • Page 70 As an example of when a static route is needed, consider the following case: • Your primary Internet access is through a cable modem to an ISP. • You have an ISDN router on your home network for connecting to the company where you are employed.
  • Page 71 In this case you must define a static route, telling your router that 134.177.0.0 should be accessed through the ISDN router at 192.168.100. The static route would look like In this example: • The Destination IP Address and IP Subnet Mask fields specify that this static route applies to all 134.177.x.x addresses.
  • Page 73 This chapter describes how to use the maintenance features of your Model MR314 Cable/DSL Wireless Router. These features can be found by clicking on the Maintenance heading in the Main Menu of the browser interface. The System Status menu provides a limited amount of status and usage information. From the...
  • Page 74 The System Status screen shows the parameters listed in Table 6-1...
  • Page 75 Click on the “Show Statistics” button to display router usage statistics, as shown in Figure 6-2 below: This screen shows the following statistics:.
  • Page 76 Name. Note that if the router is rebooted, the table data is lost until each PC renews its DHCP lease. The routing software of the Model MR314 router is stored in FLASH memory, and can be upgraded as new software is released by NETGEAR. Upgrade files can be downloaded from Netgear's website.
  • Page 77 When uploading software to the Model MR314 router, it is important not to interrupt the Web browser by closing the window, clicking a link, or loading a new page. If the browser is interrupted, it may corrupt the software. When the upload is complete, your router will automatically restart.
  • Page 78 FTP client. To update the router software over the LAN using an FTP client program, follow these steps: Download and unzip the new software file from NETGEAR. Rename the new software file to Use your FTP client to establish an FTP connection to the router at the LAN address, 192.168.0.1.
  • Page 79 Select binary (not ascii) transfer mode. Use your FTP program to get (back up) or put (restore) the file named After you have sent a configuration file to the router, the router programs the new configuration into flash memory and reboots itself, dropping the FTP session. If you wish to load new software or transfer the configuration file over the WAN, you must know the WAN IP address of the router.
  • Page 81 This chapter gives information about troubleshooting your Model MR314 Cable/DSL Wireless Router. After each problem description, instructions are provided to help you diagnose and solve the problem. After you turn on power to the router, the following sequence of events should occur: When power is first applied, verify that the PWR LED is on.
  • Page 82 • Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product. If the error persists, you have a hardware problem and should contact technical support.
  • Page 83 If you are unable to access the router’s Web Configuration interface from a PC on your local network, check the following: • If you are using an Ethernet-connected PC, check the Ethernet connection between the PC and the router as described in the previous section. •...
  • Page 84 Manager interface. To check the WAN IP address from the browser interface: Launch your browser and select an external site such as www.netgear.com Access the Main Menu of the router’s configuration at http://192.168.0.1...
  • Page 85 Inform your ISP that you have bought a new network device, and ask them to use the router’s MAC address. Configure your router to spoof your PC’s MAC address. This can be done in the Setup Wizard. Refer to “Configuring for Internet Access“ on page If your router can obtain an IP address, but your PC is unable to load any web pages from the Internet: •...
  • Page 86 You should see a message like this one: If the path is working, you see this message: If the path is not working, you see this message: If the path is not functioning correctly, you could have one of the following problems: •...
  • Page 87 The E-Mail menu in the Advanced configuration topics displays the current time of day. The Model MR314 router uses the Network Time Protocol (NTP) to obtain the current time from one of several Network Time Servers on the Internet. Each entry in the log is stamped with the date and time of day.
  • Page 89 This appendix provides technical specifications for the Model MR314 Cable/DSL Wireless Router. Data and Routing Protocols: Wireless Networking Standard Data rate Signal Frequency Range Encryption TCP/IP, RIP-1, RIP-2, DHCP PPP over Ethernet (PPPoE) 802.11b 1, 2, 5.5, 11Mbps (Auto Rate Sensing) 2.4Ghz to 2.5Ghz Direct Sequence Spread Spectrum (DSSS)
  • Page 90 Maximum number of wireless hosts North America: United Kingdom, Australia: Europe: Japan: All regions (output): Dimensions: Weight: Operating temperature: Operating humidity: Meets requirements of: LAN: WAN: Limited by the amount of wireless network traffic generated by each node; typically 30 to 70 nodes. 120V, 60 Hz, input 240V, 50 Hz, input 230V, 50 Hz, input...
  • Page 91 This chapter provides an overview of IP networks, routing, and firewalls. Large amounts of bandwidth can be provided easily and relatively inexpensively in a local area network (LAN). However, providing high bandwidth between a local network and the Internet can be very expensive.
  • Page 92 Information Protocol (RIP). Using RIP, routers periodically update one another and check for changes to add to the routing table. The Model MR314 router supports both the older RIP-1 and the newer RIP-2 protocols. Among other improvements, RIP-2 supports subnet and multicast protocols. RIP is not required for most home applications.
  • Page 93 There are five standard classes of IP addresses. These address classes have different ways of determining the network and host sections of the address, allowing for different numbers of hosts on a network. Each address type begins with a unique bit pattern, which is used by the TCP/IP software to identify the address class.
  • Page 94 • Class D Class D addresses are used for multicasts (messages sent to many hosts). Class D addresses are in this range: • Class E Class E addresses are for experimental use. This addressing structure allows IP addresses to uniquely identify each physical network and each node on each physical network.
  • Page 95 By looking at the addressing structures, you can see that even with a Class C address, there are a large number of hosts per network. Such a structure is an inefficient use of addresses if each end of a routed link requires a different network number. It is unlikely that the smaller office LANs would have that many devices.
  • Page 96 The number 192.68.135.127 is not assigned because it is the broadcast address of the first subnet. The number 192.68.135.128 is not assigned because it is the network address of the second subnet. The following table lists the additional subnet mask bits in dotted-decimal notation. To use the table, write down the original class netmask and replace the 0 value octets with the dotted-decimal value of the additional subnet bits.
  • Page 97 NETGEAR strongly recommends that you configure all hosts on a LAN segment to use the same netmask for the following reasons: • So that hosts recognize local IP broadcast packets When a device broadcasts to its segment neighbors, it uses a destination address of the local network address with all ones for the host address.
  • Page 98 The Model MR314 router employs an address-sharing method called Network Address Translation (NAT). This method allows several networked PCs to share an Internet account using only a single IP address, which may be statically or dynamically assigned by your ISP.
  • Page 99 This scheme offers the additional benefit of simple firewall-like protection because the internal LAN addresses are not available to the Internet through the translated connection. All incoming inquiries are filtered out by the router. This filtering can prevent intruders from probing your system.
  • Page 100 IP addresses, along with other information (such as gateway and DNS addresses) that it may assign to the other devices on the network. The Model MR314 router has the capacity to act as a DHCP server.
  • Page 101 The Model MR314 Cable/DSL Wireless Router conforms to the Institute of Electrical and Electronics Engineers (IEEE) 802.11b standard for wireless LANs (WLANs). On an 802.11b wireless link, data is encoded using direct-sequence spread-spectrum (DSSS) technology and is transmitted in the unlicensed radio spectrum at 2.5GHz. The maximum data rate for the wireless link is 11 Mbps, but it will automatically back down from 11 Mbps to 5.5, 2, and 1 Mbps when the...
  • Page 102 In the infrastructure mode, the wireless access point converts airwave data into wired Ethernet data, acting as a bridge between the wired LAN and wireless clients. Connecting multiple Access Points via a wired Ethernet backbone can further extend the wireless network coverage. As a mobile computing device moves out of the range of one access point, it moves into the range of another.
  • Page 103 The 128-bit WEP data encryption method consists of 104 user-configurable bits. Similar to the forty-bit WEP data encryption method, the remaining 24 bits are factory set and not user configurable. Some vendors allow passphrases to be entered instead of the cryptic hexadecimal characters to ease encryption key entry.
  • Page 104 The available channels supported by the wireless products in various countries are different. The preferred channel separation between the channels in neighboring wireless networks is 25 MHz (5 channels). This means that you can apply up to three different channels within your wireless network.
  • Page 105 Although Ethernet networks originally used thick or thin coaxial cable, most installations currently use unshielded twisted pair (UTP) cabling. The UTP cable contains eight conductors, arranged in four twisted pairs, and terminated with an RJ45 type connector. A normal "straight-through" UTP Ethernet cable follows the EIA568B standard wiring and pinout as described in In the wiring table above, the concept of transmit and receive are from the perspective of the PC, which is wired as Media Dependant Interface (MDI).
  • Page 106 • Auto MDI/MDI-X switching Some Ethernet switch products, such as the Model MR314 router with Auto Uplink technology, are able to sense the polarity of a connection and automatically adapt to the proper mating polarity.
  • Page 107 Domain names are of the form of a registered entity name plus one of a number of predefined top level suffixes such as .com, .edu, .uk, etc. For example, in the address mail.NETGEAR.com, mail is a server name and NETGEAR.com is the domain.
  • Page 108 Internet Protocol. A four-byte number uniquely defining each host on the Internet. Ranges of addresses are assigned by Internic, an organization formed for this purpose. Usually written in dotted-decimal notation with periods separating the bytes (for example, 134.177.244.57). Internet Protocol Security. IPSec is a series of guidelines for securing private information transmitted over public networks.
  • Page 109 A technique by which several hosts share a single IP address for access to the Internet. A block of information sent over a network. A packet typically contains a source and destination network address, some protocol and length information, a block of data, and a checksum. Point-to-Point Protocol.
  • Page 110 WAN. A long distance link used to extend or connect remotely located local area networks. The Internet is a large WAN. WINS. Windows Internet Naming Service is a server process for resolving Windows-based computer names to IP addresses. If a remote network contains a WINS server, your Windows PCs can gather information from that WINS server about its local hosts.
  • Page 111 802.11b B-11 Address Resolution Protocol B-9 ad-hoc mode B-11, B-12 Alcatel ANT 4-6 antenna orientation 2-5 auto MDI/MDI-X switching B-16 Auto Uplink 1-4, B-16 backup configuration 6-5 Bigpond 4-7 BigPond Authentication 3-8 blocking by keyword 4-11 BSSID B-12 cables, pinout B-15 Cabling B-15 Cat5 cable 2-2, 2-5, B-16 Channel 4-5, 5-6, B-13...
  • Page 112 DHCP Client ID 3-6 Obtaining ISP Configuration Information 3-9 MDI/MDI-X wiring B-15 Metric, Static Route menu 5-14 Multicast 5-5 NAT. Network Address Translation NETGEAR contacting xiii netmask translation table B-6 Network Address Translation 1-4, B-8 Network Time Protocol 4-11, 7-7 newsgroup 4-12...
  • Page 113 package contents 2-1 passphrase 1-3, 5-7 password restoring 7-7 restoring to default 6-7 PC, using to configure 3-10 pinout, Ethernet cable B-15 Port Forwarding 5-10 port forwarding behind NAT B-9 Port Forwarding Menu 5-10 PPP over Ethernet. PPPoE PPPoE 1-2, 1-5, 3-7, 4-6, 6-2 PPTP 3-8 PPTP, login for Europe 4-6 Primary DNS Server 4-8...
  • Page 114 version 1-1 warranty 1-3, 1-5 WEP B-12 WEP encryption 1-3 Wi-Fi B-11 Windows, configuring for IP routing 3-2 winipcfg utility 3-5 Wired Equivalent Privacy B-12 Wireless Ethernet B-11 Wireless Setup Menu 5-6 WLAN 6-3 World Wide Web iii...
