Makita BHR240 Parts Breakdown

Makita bhr240 hammer: specifications
Hide thumbs Also See for BHR240:
1
2
3

Advertisement

Quick Links

Download this manual See also: Technical Information, Instruction Manual
Parts Breakdown
BHR240
Page 1 of 3
2/8/2008

Advertisement

loading

Related Manuals for Makita BHR240

Summary of Contents for Makita BHR240

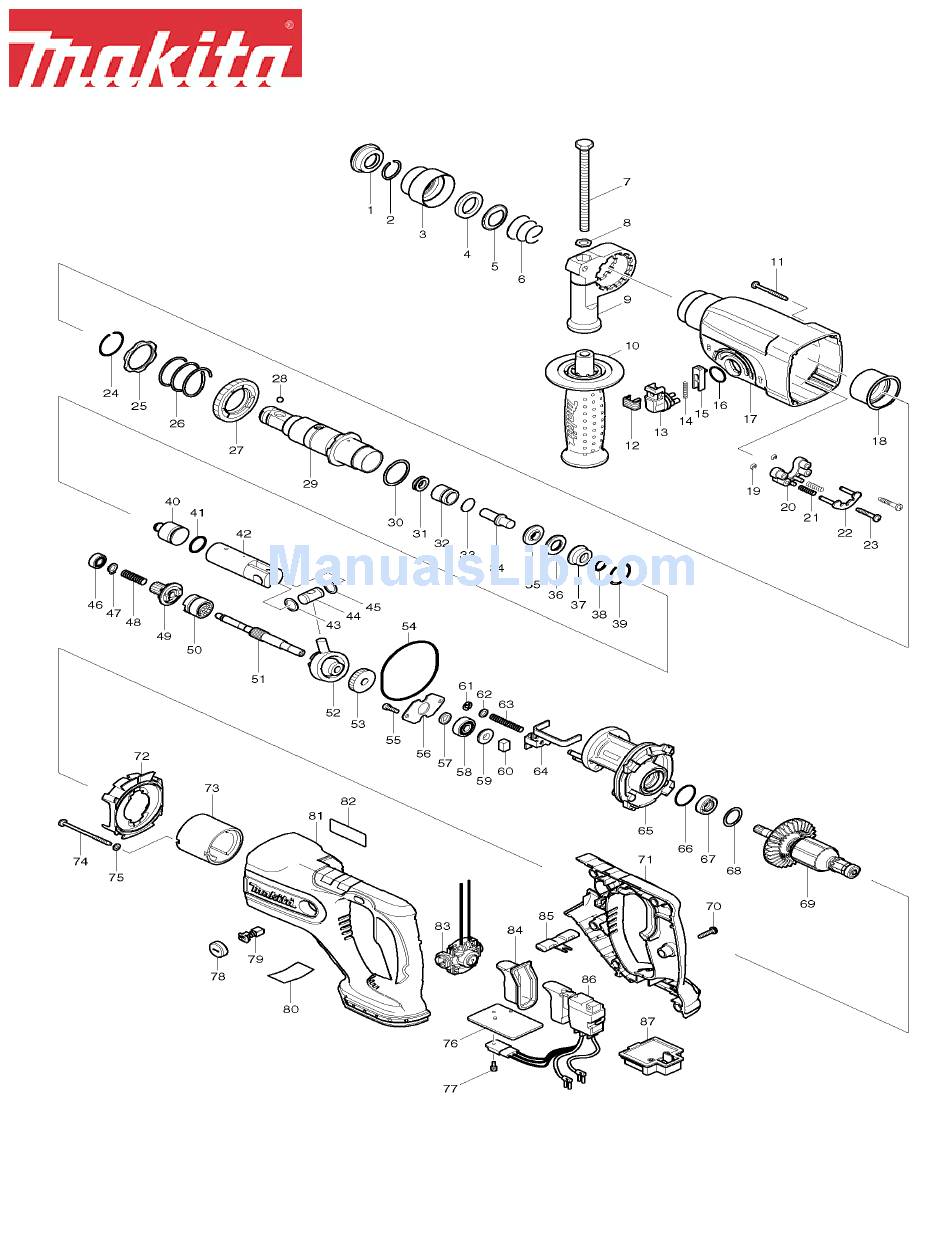

  • Page 1 Parts Breakdown BHR240 Page 1 of 3 2/8/2008...
  • Page 2 21 233344-5 COMP. SPRING 4, HR2450F 22 163430-7 LOCK PLATE CPL. 23 265999-8 TAPPING SCREW M4X25, HM1800 24 233929-7 RING SPRING 29, BHR240 25 267791-8 WASHER 32, BHR240 26 233401-9 COMP. SPRING 32, BHR240 27 227109-5 SPUR GEAR 51, BHR240 28 216022-2 STEEL BALL 7.0, HR2400...
  • Page 3 64 345363-0 CHANGE PLATE, HR2450F 65 154879-2 INNER HOUSING, BHR240 66 213380-7 O RING 24, 6805BV 67 213966-7 OIL SEAL 9, BHR240 68 253349-9 THIN WASHER 18, BHR240 69 619190-4 ARMATURE, BHR240 70 265995-6 TAPPING SCREW 4X18, 4323K 71 419555-8...
