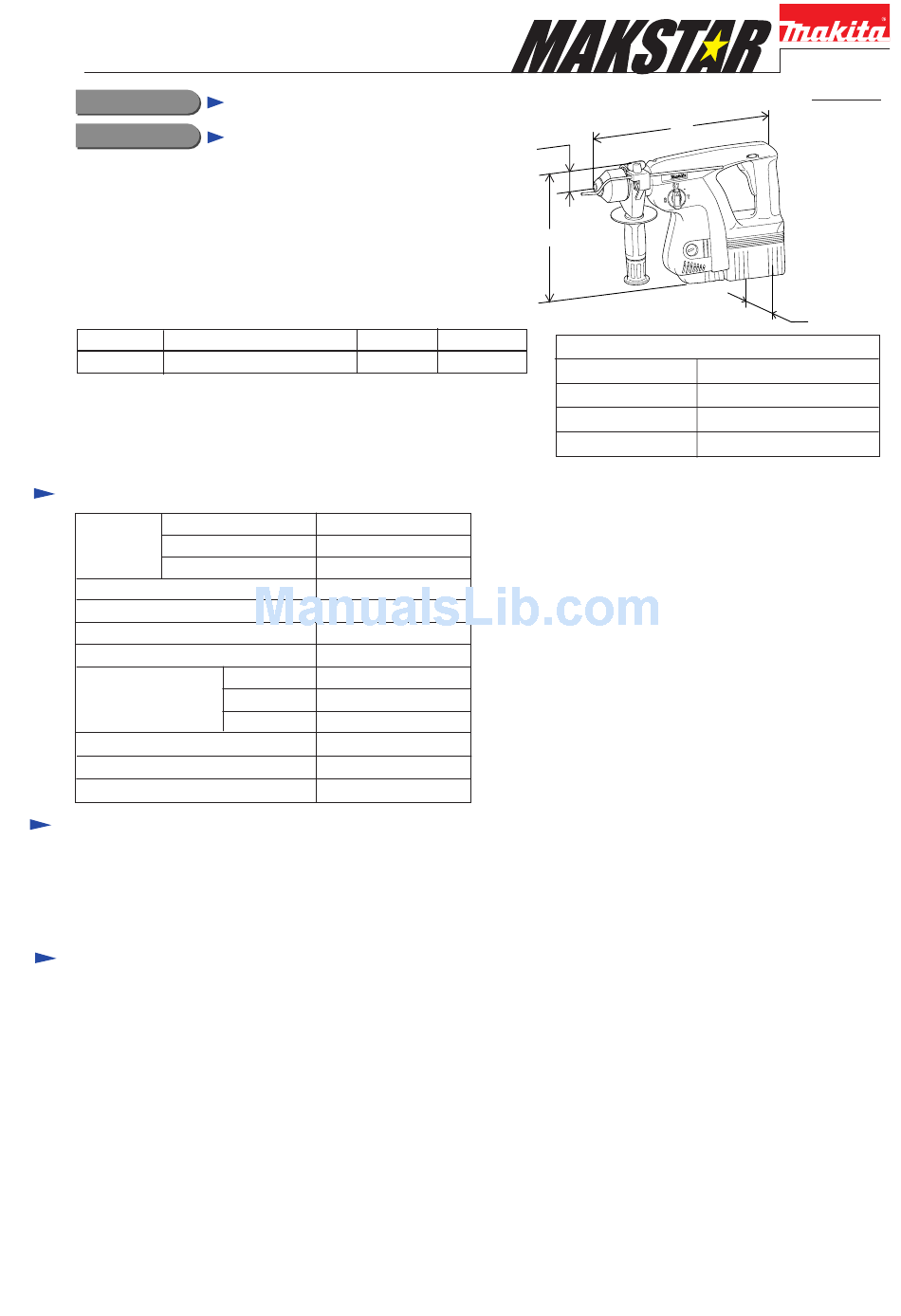

T
ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS
The above mentioned model is 20 mm (13/16") cordless
rotary hammer. Its brief benefits and features are as follows.
* Equipped with newly developed 24V/3.0Ah Ni-MH battery.
* 3 working modes, they are "rotation with percussion",
"percussion only" and "rotation only".
* SDS-plus bit can be used
Below listed standard type model is only available.
Model No.
BHR200SF B2430, Ni-MH 24V/3.0Ah
S
pecification
Voltage (V)
Battery
*Capacity (Ah)
*Energy (Wh)
No load speed : (min
Blows per min : (min
Bit type
Diameter of bit shank : mm ( " )
Capacity : mm ( " )
Reverse switch
Electric brake
Clutch
S
tandard equipment
* Depth gauge (Stopper pole) ............................... 1 pc.
* Grease for bit .................................................... 1 pc.
< Note > The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
* SDS-plus type TCT. hammer bit
4.0mm(5/32") - 20mm(13/16")
* Bull point
* Cold chisel
* Scaling chisel
* Grooving chisel
* Drill chuck assembly
* Chuck key S13
* Grease for bit
* Dust cup 5
* Dust cup 9
* Blow out bulb
BHR200S
Cordless Rotary Hammer 20mm (3/16")
Charger
Battery
DC24SA
24
3.0
72
= rpm)
0 - 1,100
-1
= bpm).
0 - 4,700
-1
SDS-plus
10 (3/8)
20 (13/16)
Concrete
13 (1/2)
Steel
Wood
27 (1-1/16)
Yes
Yes
Yes
CH
H
Plastic case
Dimensions : mm ( " )
Yes
Width ( W )
*Height ( H )
Center height (CH)
Length ( L )
*Height ( H ) : 210mm (8-1/4") when battery
*Capacity (Ah): 1.7Ah when battery B2417 is attached.
*Energy (Wh) : 40.8Wh when battery B2417 is attached.
* Chuck adapter assembly
* Battery B2430
* Battery B2417
* Charger DC24SA
* Dust extractor attachment
* Foot for battery B2417
NEW TOOL
P 1 / 23
L
W
86 (3-3/8)
235 (9-1/4)
35 (1-3/8)
316 (12-1/2)
B2417 is attached.
Advertisement
Related Manuals for Makita BHR200S
Summary of Contents for Makita BHR200S
- Page 1 ECHNICAL INFORMATION NEW TOOL P 1 / 23 Models No. BHR200S Description Cordless Rotary Hammer 20mm (3/16") ONCEPTION AND MAIN APPLICATIONS The above mentioned model is 20 mm (13/16") cordless rotary hammer. Its brief benefits and features are as follows.
-
Page 2: Features And Benefits
Newly developed 24V Ni-MH battery Removable foot for flat bottom. We can provide 2 kinds of Ni-MH batteries for BHR200S. They are, * Battery B2417, 1.7Ah (optional accessory) * Battery B2430, 3.0Ah Foot When operation with... - Page 3 P 3 / 23 omparison of products Comparison No.1 Competitor A Competitor B Competitor C MAKITA Model No. Spec. BHR200S Voltage (V) Capacity (Ah) Energy (Wh) 40.8 40.8 40.8 Ni-Cd Cell Ni-MH Ni-Cd Ni-Cd Weight : Kg 1.32 1.96 1.26 1.46...
- Page 4 P 4 / 23 omparison of products Comparison No.2 Competitor D Competitor E MAKITA Model No. Spec. BHR200S Voltage (V) Capacity (Ah) 40.8 Energy (Wh) Ni-MH Cell Ni-MH Ni-Cd Ni-Cd Weight : Kg 1.31 1.37 1.46 0.98 Charging time (min.) concrete : mm (")
- Page 5 Competitor C Competitor B MAKITA Fast Model E Model A Model D Model C Model B BHR200S Drilled holes with one fully charged battery Bit diameter: 6.5 mm Depth of hole : 40 mm 1.7Ah 3.0Ah 1.7Ah 3.0Ah 2.0Ah 3.0Ah 2.0Ah 1.7Ah...
- Page 6 10.0 MAKITA Competitor A Fast Competitor D Competitor E Competitor C Competitor B BHR200S Model D Model E Model C Model A Model B Drilled holes with one fully charged battery Bit diameter: 8.5 mm Depth of hole : 40 mm 1.7Ah 3.0Ah...
- Page 7 MAKITA Competitor D Competitor A Fast Competitor E Competitor C Competitor B BHR200S Model D Model E Model C Model A Model B Drilled holes with one fully charged battery Bit diameter: 12.5 mm Depth of hole : 40 mm 1.7Ah 3.0Ah...
- Page 8 MAKITA Competitor A Fast Competitor D Competitor E Competitor C Competitor B BHR200S Model E Model A Model D Model C Model B Drilled holes with one fully charged battery Bit diameter: 14.5 mm Depth of hole : 40 mm 2.0Ah...
- Page 9 MAKITA Competitor A Fast Competitor D Competitor E Competitor C Competitor B BHR200S Model E Model A Model D Model C Model B Drilled holes with one fully charged battery Bit diameter: 16.5 mm Depth of hole : 40 mm 2.0Ah...
- Page 10 3 Kg 12.5 minutes 18.5 minutes 2 Kg 1 Kg Competitor A MAKITA Model A BHR200S Vibration under loaded condition Working mode : Rotation with percussion Measured and evaluated in conformity with CE Regulations. 20.0 m/s2 18.0 m/s2 18.5 16.0 m/s2 16.3...
- Page 11 Lubrication Put grease on the following places in order to protect parts and machine from unusual abrasion and overheating. Recommendable is our genuine grease, "MAKITA Grease R No.1". All of O rings built in BHR200S Teeth of all gears built in BHR200S...
- Page 12 P 12 / 23 epair Removing < 1 > Removing chuck section (1) Pull down chuck cover and detach cap 31 as illustrated in Fig. 1, and then, remove chuck cover and compression spring 38 as illustrated in Fig. 1A. Cap 31 Chuck cover Pull down...
- Page 13 P 13 / 23 epair < 2 > Disassembling housing. (1) Pull down chuck cover and detach cap 31 as illustrated in Fig. 1. (2) Set change lever to the "rotation with percussion" mode as illustrated in Fig. 5. Otherwise, cam shaft is lifted up and ball bearing 606ZZ, cup washer and conical compression spring 7-14 easily come out from housing L.
- Page 14 P 14 / 23 epair (3) Expand ring spring 26 with 1R045 "retaining ring plier", So the ring spring 26 is to be pushed out from the groove of tool holder by compression spring 29. And then, it can be removed with screwdriver. <...
- Page 15 P 15 / 23 epair (3) Insert a slotted head screwdriver between ring spring 21 and O ring case as illustrated in Fig. 11. And push out the ring spring 21 from the inside groove of tool holder, with the slotted head screwdriver Ring spring 21 O ring case In case may be, you can remove the ring spring 21 by hitting the screwdriver.
- Page 16 P 16 / 23 epair (3) Hold zerol bevel gear 32 with 1R022 "bearing extractor plate" as illustrated in Fig. 14. And press cam shaft with arbor press. Swash bearing can be removed from cam shaft. Zerol bevel gear 32 1R022 Bearing extractor plate Fig.
- Page 17 P 17 / 23 epair < 7 > Removing armature (1) Disassemble housing as per < 2 >, and then, take out brush holder on housing R side, by unscrewing 2 pcs. of tapping screws 4 x 18 as illustrated in Fig. 17. ( No need to remove brush holder assembled in housing L.) (2) Remove armature together with yoke unit as illustrated in Fig 17.
- Page 18 P 18 / 23 epair < 9 > Assembling equipment for mode change (1) Attach compression spring 4, lock button and O ring 17 to change lever as illustrated in Fig.20. Lock button Compression spring 4 O ring 17 Lock button has to be pressed Change lever into change lever until its hook engages change lever.
- Page 19 P 19 / 23 epair < 10 > Assembling impact bolt (1) Assemble O ring 12 (thin type) to impact bolt, and insert the impact bolt deep into tool holder. < Note > The impact bolt has to be inserted as illustrated in Fig. 23. O ring 12 (thin type) Tool holder Tool holder...
- Page 20 P 20 / 23 epair Ring Spring Setting Tool B" on the top of tool holder. Press it with arbor press as illustrated (3) Put 1R273 " in Fig. 27 to set ring spring 26 in the goove of tool holder. Ring spring 26 Press with arbor press.
- Page 21 P 21 / 23 epair < 13 > Assembling chuck section (1) Assemble the following parts to the tool holder as illustrated in Fig. 29. * Guide washer * Compression spring 35 * Steel ball 7.0 * Leaf spring 26 * Ring spring 30.5 * Chuck ring * Spring guide...
-
Page 22: Piston Cylinder
P 22 / 23 epair < 15 > It is recommended to replace the following parts in the square, when replacing carbon brush. Compression Ring spring 30.5 Ring spring 17 spring 35 Guide washer Tool holder Pin 8 Spring guide Chuck ring Leaf spring 26 Steel ball 7.0... -
Page 23: Circuit Diagram
P 23 / 23 ircuit diagram Brush holder (Housing R side) Orange Brush holder Black Black (Housing L side) iring diagram Pass lead wires between boss and inner wall of housing. Put slack part of lead wires here. Bend the connecting terminals of brush holders' lead wires as illustrated below, when they are connected with Boss...
