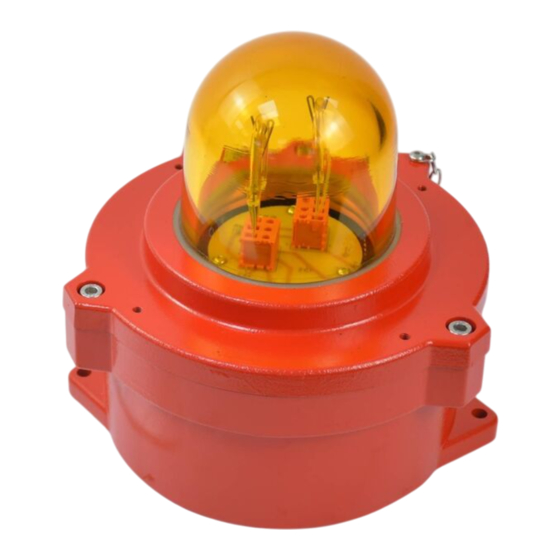

Xenon beacon XB4

Advertisement

Table of Contents
loading

Related Manuals for Eaton XB4

Summary of Contents for Eaton XB4

  • Page 1 Technical manual Xenon beacon XB4...

  • Page 2: Disclaimer Of Warranties And Limitation Of Liability

    ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
  • Page 3 And additionally for the Ex de versions of the beacons:- ..........3 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 4 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...

  • Page 5: Installation

    The internal earth terminal, where fitted, must be used for the equipment grounding connection and the external terminal is for a supplementary bonding connection Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...

  • Page 6: Maintenance

    The cover screws The IECEx certificate and product label carry the IECEx are captive and will be retained in the cover assembly. equipment protection level marking. Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...

  • Page 7: Atex Units

    Radiated Field Immunity (DC and AC) to EN61000-6-2: 2005/IEC61000-4-3:2002 + A1:2002 Electrical Fast Transients/Bursts (DC and AC) to EN61000-6-2:2005/IEC61000-4-4:2004 Surge Immunity (DC and AC) to EN61000-6-2:2005/ IEC61000-4-5:1995 + A1:2000 Conducted Immunity (10V) to EN61000-6-2:2005/ IEC61000-4-6:2005 + A1:2004 & A2:2006 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 8 De plus, pour les versions Ex de des feux :- ............7 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...

  • Page 9: Connexion Des Câbles

    Reportez-vous à la documentation fournie avec le feu pour Tous les presse-étoupes doivent présenter un indice confirmation de la méthode d’activation. NEMA/IP équivalent à celui du feu et être intégrés à l’unité de façon à assurer le maintien de sa classification. Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 10 Ex d IIC T4 (de - 55°C à + 85°C) Gb Remarque: Les feux de ce type contiennent deux tubes Ex tb IIIC T135°C (de - 55°C à + 85°C) Db IP6x au xénon. Il est recommandé de remplacer ces deux tubes concomitamment. Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 11 (IP6X). Décharges électrostatiques (CC et CA) : EN61000-6-2: 2005/IEC61000-4-2:1995 +A1:1998 & A2:2000 Immunité aux champs rayonnés (CC et CA) : EN61000-6-2: 2005/IEC61000-4-3:2002 + A1:2002 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 12 Für die Ex de-ausführungen der blinkleuchten gilt außerdem: .........11 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...

  • Page 13: Betrieb

    Die interne Erdungsklemme (sofern vorhanden) muss für den Erdungsanschluss der Komponente verwendet werden. Die externe Klemme ist für eine zusätzliche Verbindung vorgesehen, sofern lokale Vorschriften oder Behörden eine solche Verbindung zulassen. Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...

  • Page 14: Wartung

    ACHTUNG: Stellen Sie vor dem Abnehmen der Abdeckungseinheit sicher, dass der Energiefluss durch IECEx-Einheiten die Einheit isoliert ist. Hinweis: Die Blinklichter enthalten zwei separate Ex d-Einheit (IEC-Zertifizierungsnr. IECEx BAS 10.0078X) Xenon-Röhren, die gleichzeitig ausgetauscht werden müssen. Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 15 Staubdichtigkeit (IP6X) des Gehäuses zu erhalten. Elektrostatische Entladungen (DC und AC) gemäß EN61000-6-2:2005/IEC61000-4-2:1995 +A1:1998 & A2:2000 Störfeldimmunität (DC und AC) gemäß EN61000-6-2:2005/ IEC61000-4-3:2002 + A1:2002 Elektrische schnelle Transienten/Bursts (DC und AC) gemäß EN61000-6-2:2005/IEC61000-4-4:2004 Xenon beacon Xb4 TM148.H May 2022 www.eaton.com...
  • Page 16 United Kingdom functionality. Their use in whatever form is subject to prior approval NG17 5FB by Eaton. The same applies to Trademarks (especially Eaton, Moeller, and Cutler-Hammer). The Terms and Conditions of Eaton apply, as T: +44 (0) 1623 444 400 referenced on Eaton Internet pages and Eaton order confirmations.
