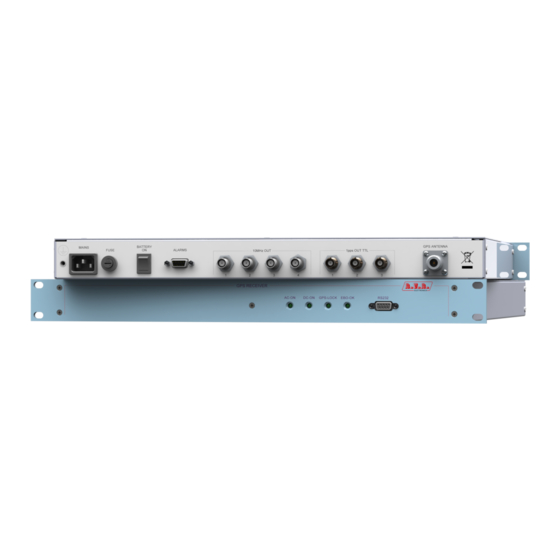

R.V.R. Elettronica GPSRXNV-01 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GPSRXNV-01
User Manual
Volume 1
Manufactured by
Italy

Advertisement

Table of Contents
loading

Related Manuals for R.V.R. Elettronica GPSRXNV-01

Summary of Contents for R.V.R. Elettronica GPSRXNV-01

  • Page 1 GPSRXNV-01 User Manual Volume 1 Manufactured by Italy...
  • Page 2 Declaration of Conformity Hereby, R.V.R. Elettronica SpA, declares that this FM transmitter is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 3: Table Of Contents

    GPSRXNV-01 Table of Contents Preliminary Instructions Warranty First Aid 3.1 Treatment of electrical shocks 3.2 Treatment of electrical Burns Unpacking 4.1 General Description Quick guide for installation and use 5.1 Preparation 6. External Description 6.1 Frontal Panel 6.2 Rear Panel 6.3 Connectors description...
  • Page 4 GPSRXNV-01 This page was intentionally left blank Rev. 1.0 - 16/11/07 User Manual...

  • Page 5: Preliminary Instructions

    If it is decided to return the that the manufacturer’s instructions are been followed. unit to the factory, R.V.R. Elettronica will mail you a regular authorization with all the necessary instructions to send back the goods;...

  • Page 6: First Aid

    • Do not interrupt the rythm of compressions when the second person is giving breath. R.V.R. Elettronica SpA Via del Fonditore, 2/2c • Call for medical assistance as soon as 40138 BOLOGNA ITALY possible.

  • Page 7: Unpacking

    (SFN - alias Single Frequency network). The GPSRXNV-01 is designed to being contained into a 19” rack box of 1HE. Two major features of GPSRXNV-01 is compact design and user-friendliness.

  • Page 8: Quick Guide For Installation And Use

    GPSRXNV-01 5. Quick guide for installation and use This section provides a step-by-step description of equipment installation and configuration procedure. Follow these procedures closely upon first power-on and each time any change is made to general configuration, such as when a new transmission station is added or the equipment is replaced. Once the desired configuration has been set up, no more settings are required for normal operation; at each power-up (even after an accidental shutdown), the equipment defaults to the parameters set during the initial configuration procedure.
  • Page 9 Figure 5.1 Connect the 10MHz OUT - 1 output of GPSRXNV-01 (figure 6.1 - note [4]) to the proper IN 10MHZ input equipped with apparatus of R.V.R. Elettronica like PTX- LCD with SFN option (figure 5.1). If the equipment is of a different brand, identify an equivalent input. Connect the 1PPS OUT TTL - 1 output of GPSRXNV-01 (figure 6.1 - note [8]) to the proper REMOTE input equipped with apparatus of R.V.R.
  • Page 10 In case that you made explicit request for purchase the software license of EPSILON BOARD OEM II card at time of order, the reading parameters of GPSRXNV-01 and of satellites will be made through the serial connection between the RS232 and the DB9 placed in front panel and a compatible PC with Microsoft Windows 98, 2000, XP on which you have installed the software furnished.
  • Page 11 GPSRXNV-01 Figura 5.3 User Manual Rev. 1.0- 16/11/07 7 / 14...

  • Page 12: External Description

    GPSRXNV-01 6 External Description This section describes the components found on the front and rear panel of GPSRXNV-01. 6.1 Frontal Panel Figure 6.1 [1] AC-ON Green LED, when lit on indicates the presence of mains power supply. [2] DC-ON Green LED, when lit on indicates the presence of continuous power supply; in case this LED is ON while that AC-ON is off, it indicates that the receiver is powered by battery.

  • Page 13: Connectors Description

    GPSRXNV-01 6.3 Connectors description 6.3.1 RS232 Type: DB9 female TX_D RX_D 6.3.1 ALARMS Type: DB9 male Pin Name Type Purpose GPS-LOCK OUT dig. Closed contact if PIN2 is in normal operating condition. GPS-LOCK OUT dig. Common contact. GPS-LOCK OUT dig. Closed contact if PIN2 is in alarm condition.

  • Page 14: Technical Specifications

    GPSRXNV-01 7. Technical Specifications 7.1 Mechanical Specifications Size Panel 483 mm (19.02”) x 44 mm (1.73”) (1 HE) Depth 407 mm (16.02”) Weight 4 Kg Operating Temperature 0°C ÷ +50 °C Storage Temperature - 40 °C ÷ + 85 °C 0°C ÷ +50 °C Operating Temperature 0 °C ÷...

  • Page 15: Spare Parts

    GPSRXNV-01 7.3 Spare Parts Subsets for Maintenance Panel board SL041PC1001 Interface card and battery charger SL041IN1001 Power supply card PSS1201-01 Parts of parts Transformer TRFALT0001 GPS receiver EPSILON BOARD OEM II Buffery battery 12V 2Ah BATTPG12V2A2 User Manual Rev. 1.0- 16/11/07...

  • Page 16: Module Identification

    GPSRXNV-01 8. Module identification Il GPSRXNV-01 is made up of several modules connected through connectors to facilitate maintenance and replacement (if needed). 8.1 Top View The figure 8.1 shows a top view of the equipment and component locations. Figure 8.1 [1] Panel Board (SL041PC1001) [2] Buffer battery (BATTPG12V2A2) [3] Transformer (TRFALT0001) [4] Power supply card (PSS1201-01) [5] Interface card (SL041IN1001) [6] GPS receiver (EPSILON BOARD OEM II) 12 / 14 Rev.

  • Page 17: Working Principles

    GPSRXNV-01 9. Working Principles The figures below provide an overview of GPSRXNV-01 modules and connections.            Figure 9.1 Following is a brief description of the different module functions; all diagrams and board layout diagrams are included in the “Technical Schedule”...

  • Page 18: Panel Board (Sl041Pc1001)

    GPSRXNV-01 9.3 Panel board (SL041PC1001) This card is mounted on the frontal panel. The panel board provides the visualization, via LEDs, related to status of equipment. Also hosts the RS232 connector for direct serial communication (normally used only for factory settings).
