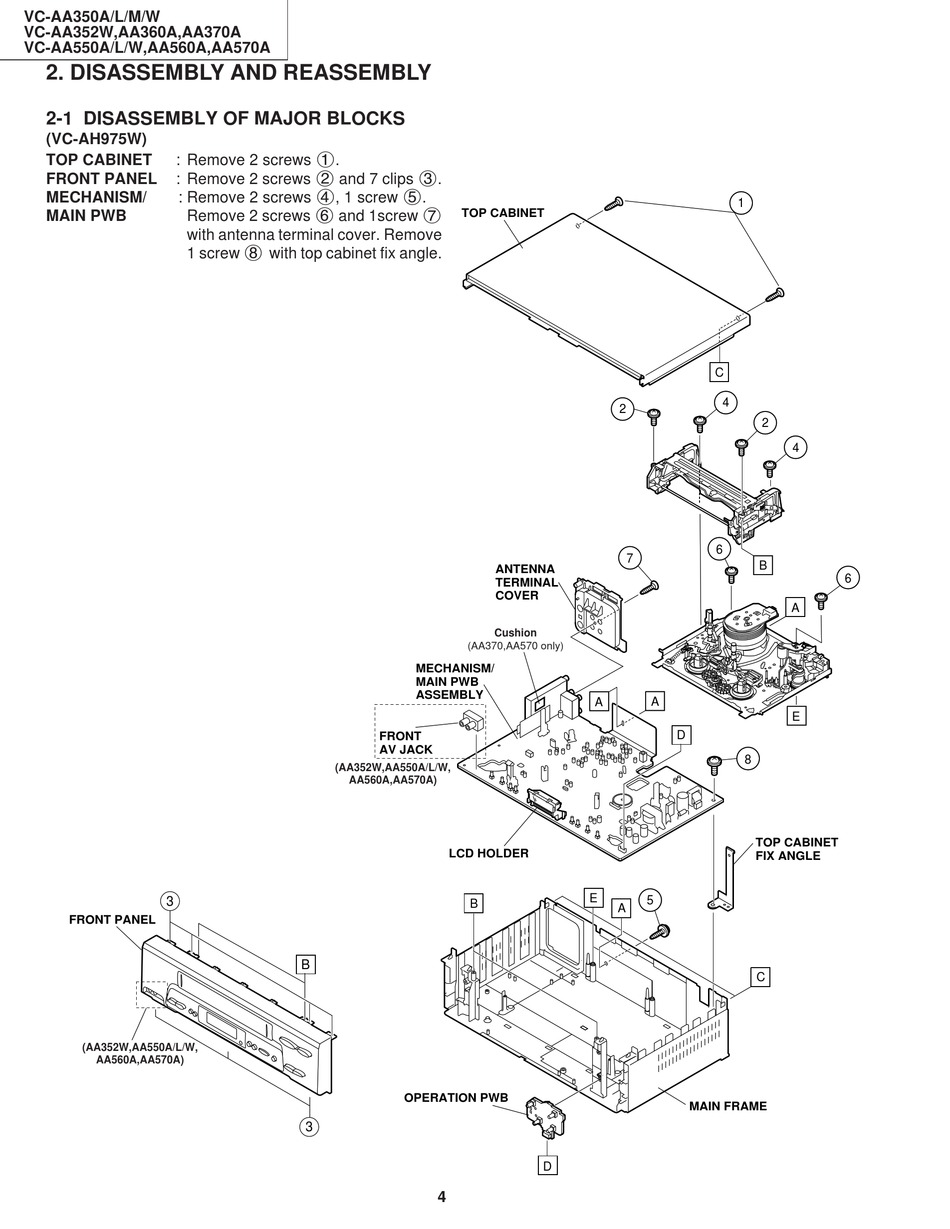

2. DISASSEMBLY AND REASSEMBLY

2-1 DISASSEMBLY OF MAJOR BLOCKS
(VC-AH975W)
: Remove 2 screws 1.
TOP CABINET
: Remove 2 screws 2 and 7 clips 3.
FRONT PANEL
: Remove 2 screws 4, 1 screw 5.
MECHANISM/
Remove 2 screws 6 and 1screw 7
MAIN PWB
with antenna terminal cover. Remove
1 screw 8 with top cabinet fix angle.
3
FRONT PANEL
(AA352W,AA550A/L/W,
AA560A,AA570A)
TOP CABINET
(AA370,AA570 only)
MECHANISM/
MAIN PWB
ASSEMBLY
FRONT
AV JACK
(AA352W,AA550A/L/W,
AA560A,AA570A)
LCD HOLDER
B
B
OPERATION PWB
3
4
2
7
ANTENNA
TERMINAL
COVER
Cushion
A
A
E
5
A
D
1
C
4
2
4
6
B
6
A
E
D
8
TOP CABINET
FIX ANGLE
C
MAIN FRAME
