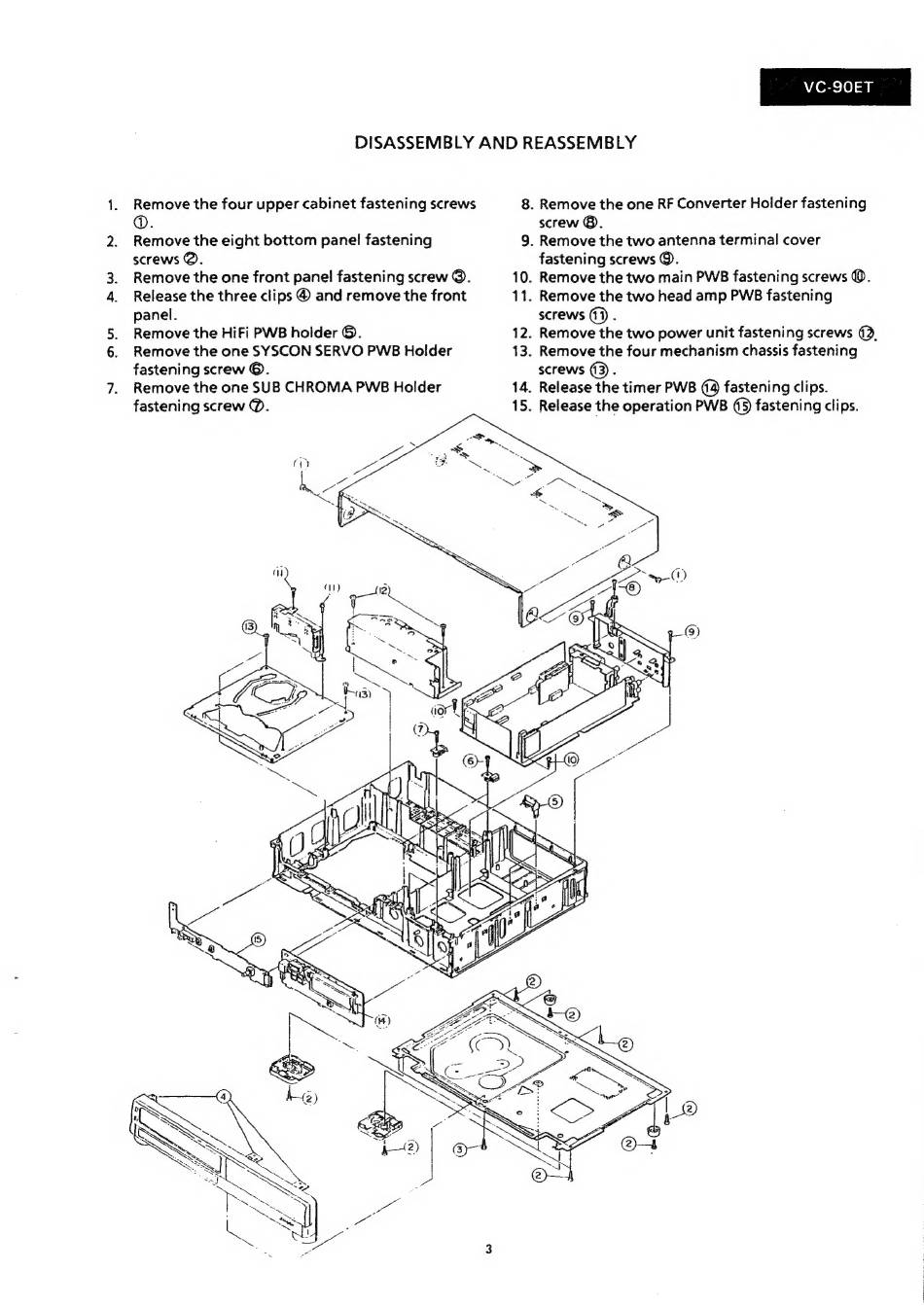

DISASSEMBLY AND REASSEMBLY
Remove the four upper cabinet fastening screws
Remove the eight bottom panel fastening
screws @.
Remove the one front panel fastening screw ©.
Release the three clips @ and remove the front
panel.
Remove the HiFi PWB holder ©.
Remove the one SYSCON SERVO PWB Holder
fastening screw ©.
Remove the one SUB CHROMA PWE Holder
fastening screw @.
8.
10.
11.
12.
13.
Remove the one RF Converter Holder fastening
screw @).
. Remove the two antenna terminal cover
fastening screws @.
Remove the two main PWB fastening screws @.
Remove the two head amp PWB fastening
screws (1) .
Remove the two power unit fastening screws (2,
Remove the four mechanism chassis fastening
screws (13).
. Release the timer PWB (9 fastening clips.
. Release the operation PWB (5 fastening clips.
