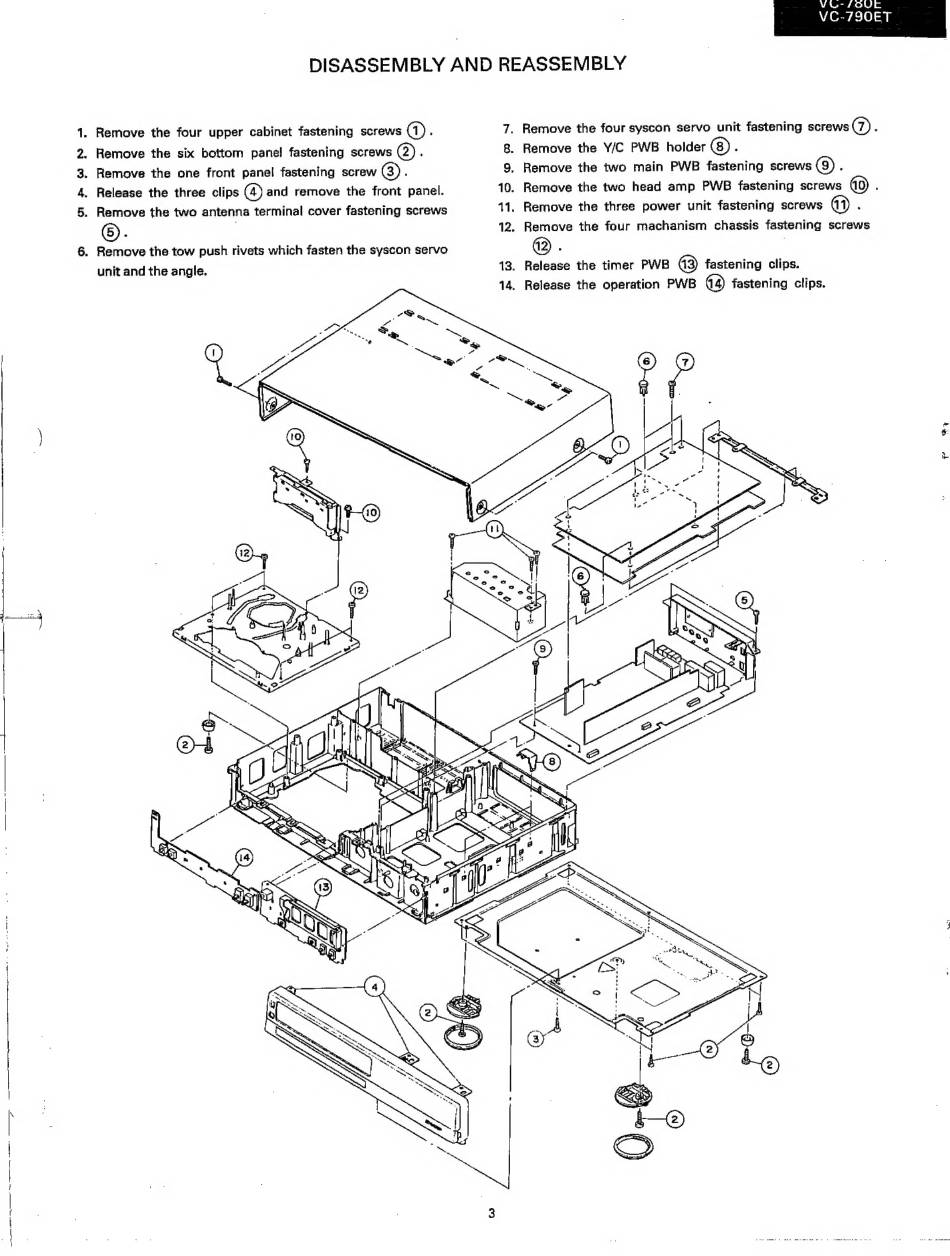

DISASSEMBLY AND REASSEMBLY
Remove the four upper cabinet fastening screws q).
Remove the six bottom pane! fastening screws @).
Remove the one front panel fastening screw (3).
Release the three clips (4) and remove the front panel.
Remove the two antenna terminal cover fastening screws
on the tow push rivets which fasten the syscon servo
unit and the angle.
Remove the four syscon servo unit fastening screws (7) F
Remove the Y/C PWB holder @).
9, Remove the two main PWB fastening screws (9) '
. Remove the two head amp PWB fastening screws ;
. Remove the three power unit fastening screws
. Remove the four machanism chassis fastening screws
Release the timer PWB 43) fastening clips.
Release the operation PWB fastening clips.
Vi- #00)
VC-790ET
