Stand - Grizzly G1014Z Manual Update

2. Attach the longer upper and lower cross
braces to 2 of the stand legs. Bolt together
5
using the ⁄ ''-18 x
16
Washers and Hex Nuts provided. Figure 3.
Repeat this step for the other 2 legs. Note:
Do not tighten any bolts down until the stand
is completely assembled.

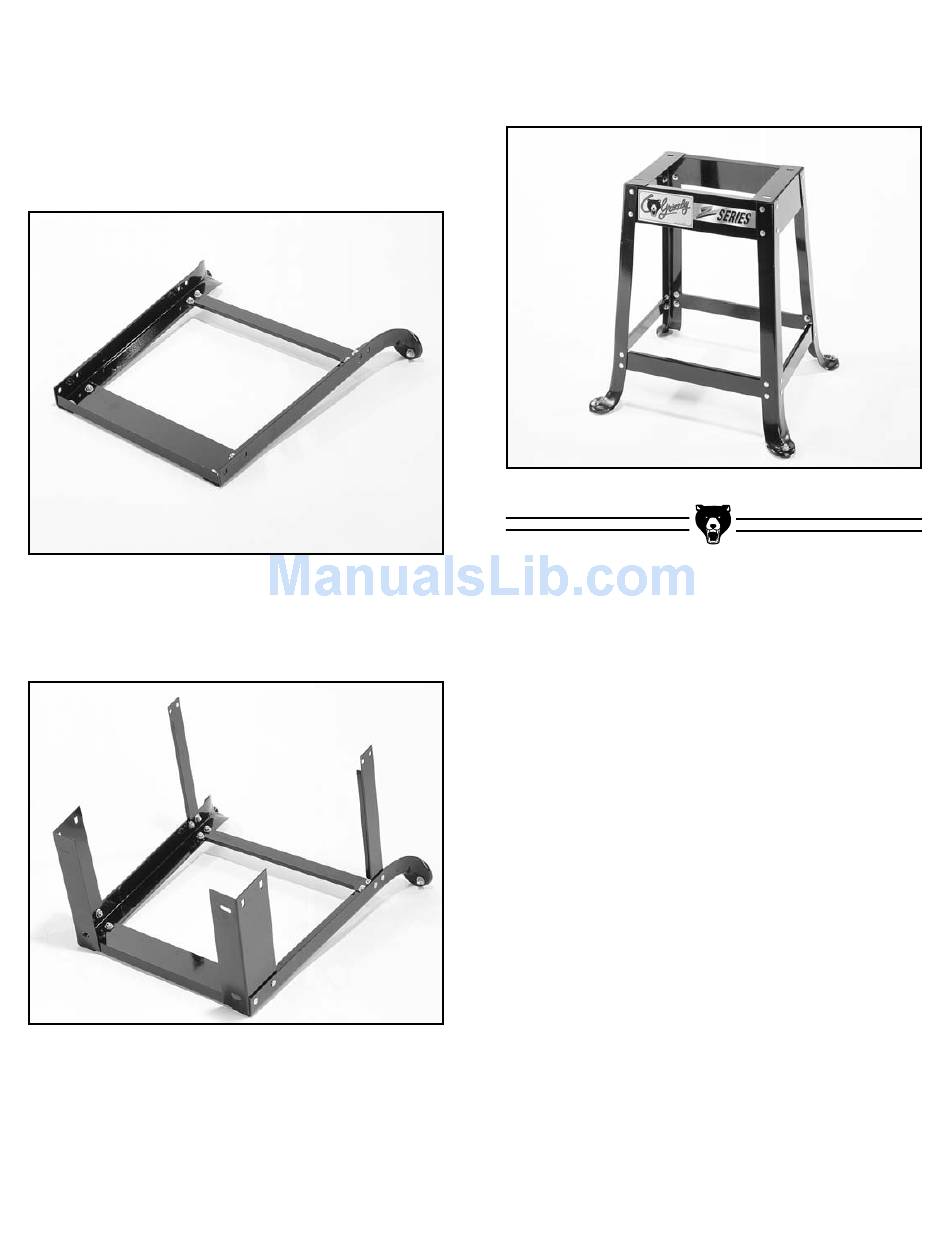

Figure 3.
3. Bolt the shorter upper and lower braces to
one of the 2 stand sub-assemblies. Figure 4.
Figure 4.
G1014Z Combination Sander
1
⁄ '' Carriage Bolts,
2
4. Now attach the other sub-assembly to the
ends of the short braces. Tighten down all
the stand bolts at this time. Figure 5.
Figure 5.
-9-
