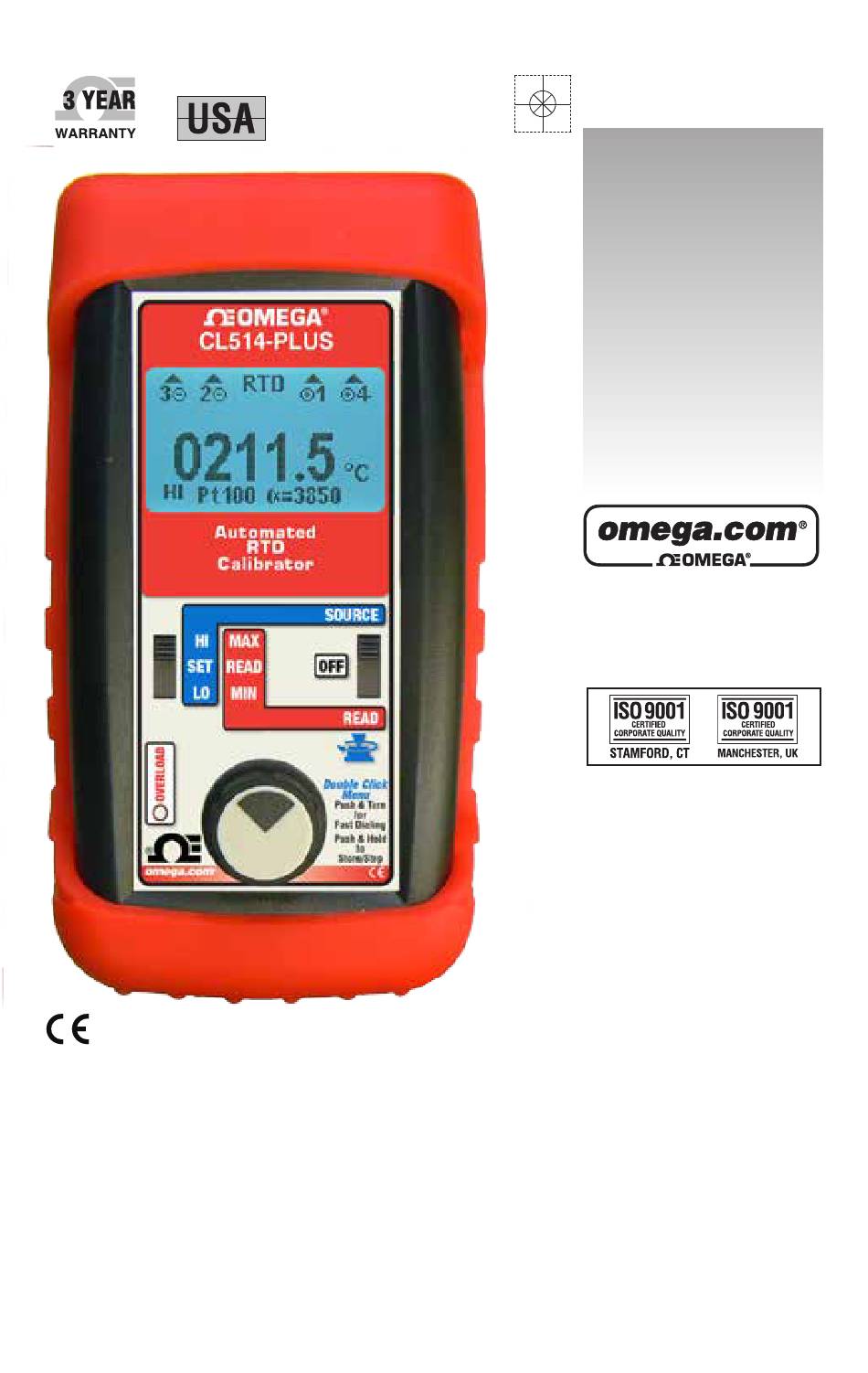

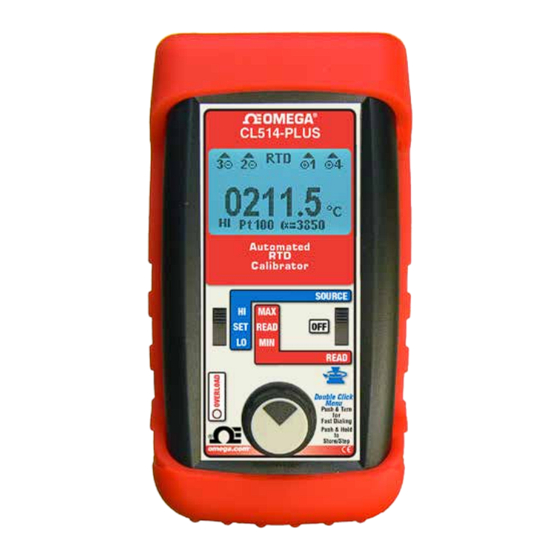

- Page 1 User’ s Guide MADE IN ® Shop online at omega.com e-mail: info@omega.com For latest product manuals: omegamanual.info CL514-PLUS Automated Universal RTD Calibrator...
- Page 2 Approach Directives. OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Product Description
• Measure RTD Sensors Troubleshoot sensor connections and find broken wires with patented technology. Connect your two, three or four wire RTDs and the CL514-PLUS automatically detects the connections and measures the RTD in degrees C or F. Page 3... -
Page 4: Basic Operation
READ: Slide the switch to the DIAL position. The remove the rubber boot, remove the battery door CL514-PLUS will display the current temperature from from the back of the unit by sliding the door the RTD sensor. Slide the switch to HI and the downward. - Page 5 Configuration Power on & MAIN manu POWER SWITCH to “SOURCE” or “READ”. Move Setup DOUBLE CLICK KNOB FOR CONFIGURATION V#.## Double click the DIAL KNOB at any time the unit is on and the following displays will appear for 15 seconds: Source RTD Source Ohms MAIN...
- Page 6 FEATURES - Auto Off, Backlight & Automatic Stepping EXIT MENU - exits this menu immediately and saves any FEATURES changes. Menu will automatically exit after 30 seconds of > EXIT (2/2) inactivity. AUTO OFF BACKLIGHT AUTO OFF - If AUTO OFF is ON, the unit will turn off after 30 STEPS minutes of inactivity to save battery life.
- Page 7 Storing HI/SET/LO Outputs STORING HI and LO Outputs Choose this function to select commonly used temperature output values, and set high and low values for stepping. 1) Store your high (SPAN) output temperature by moving the HI/SET/LO switch to the HI position and turn the knob until the desired temperature is on the display.
- Page 8 Plug in the 2, 3 or 4 wires to match the connection on the instrument being calibrated. READ Plug in the 2, 3 or 4 wires from the sensor and the CL514-PLUS will automatically detect the correct setting for 2, 3 or 4 wire simulation using a patented circuit.
- Page 9 1) Disconnect the RTD sensor from the device to be calibrated. 2) Select “SOURCE” with slide switch 3) Connect the CL514-PLUS to the device using 2, 3 or 4 wires matching the connections of the 3 2 2 - 1 sensor that was just removed.
- Page 10 2) Select “READ” with slide switch 3) Place the HI/SET/LO switch into the READ position. 4) Connect the CL514-PLUS to the device using 2, 3 or 4 wires. The CL514-PLUS measures the temperature signal and constantly updates the display with the current temperature reading.
-
Page 11: Troubleshooting Rtd Sensors
The PIE CL514-PLUS automatically detects 2, 3 and 4 wire RTD connections with a patented circuit. It will also display the connections on the display and indicate when there is a missing connection due to a loose connector, corrosion or a broken wire. - Page 12 Ranges & Accuracies Table based on 3 & 4 Wire RTD (ITS-90) Accuracy*: ≤ ± (0.025 % of Reading +0.05 Ohms) Alpha Degrees C Accuracy Degrees F Accuracy Type Range °C Range °F -200.0 to 160.0 ±0.2° -328.0 to 320.0 ±0.4°...
- Page 13 CL514-PLUS Specifications (Unless otherwise indicated all specifications are rated from a nominal 23 °C, 70 % RH for 1 year from calibration) General Accuracy ±(0.025% of Reading + 0.05 Ohms) Temperature Drift ± 0.01% of span outside of 23°C ±10 °C (73°C ±18 °F) Operating Temperature Range -25 to 60 °C (-10 to 140 °F)
-
Page 14: Additional Information
Additional Information This product is calibrated on equipment traceable to NIST and includes a Certificate of Calibration. Test Data is available for an additional charge. Omega recommends a calibration interval of one year. Contact Omega for recalibration and repair services. Accessories Included: Red Rubber Boot, Four “AA”... - Page 15 Service Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
- Page 16 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References Recorders, Controllers & Process Monitors...
