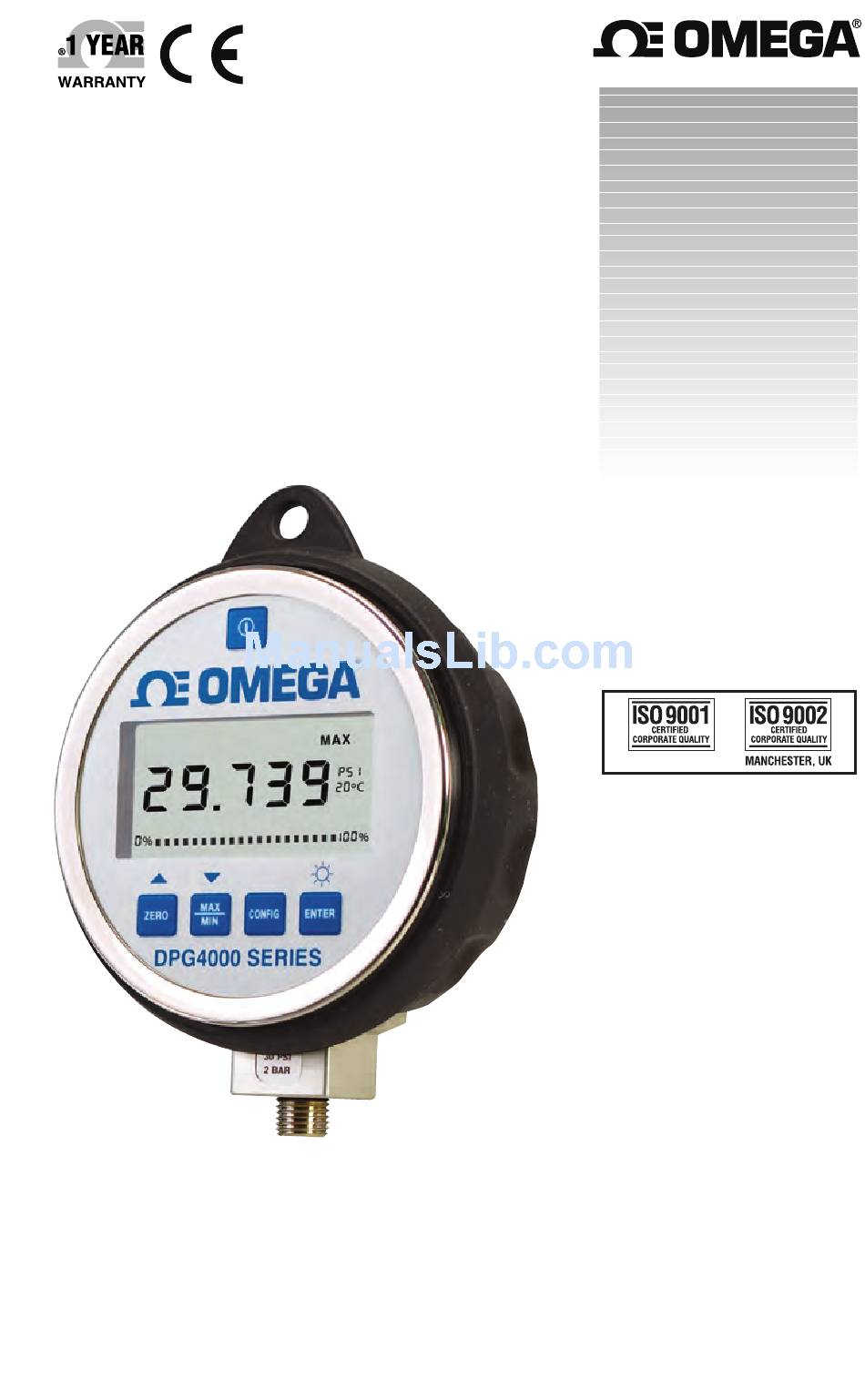

- Page 1 User’ s Gui d e Shop online at omega.com e-mail: info@omega.com For latest product manuals: .omegamanual.info NORWALK, CT DPG4000 Digital Test Gauge...
- Page 2 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Customer Service

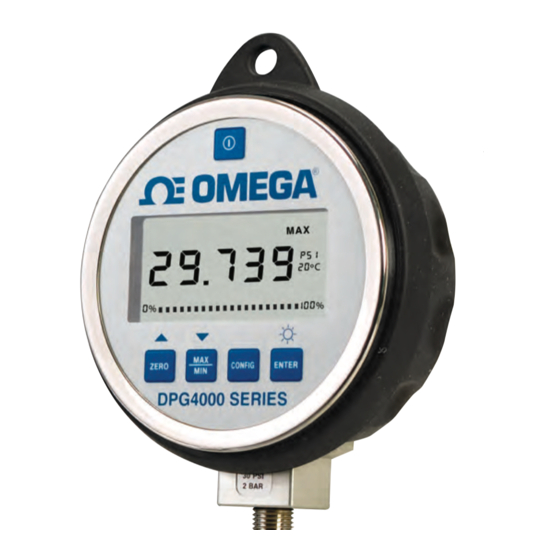

The DPG4000 combines the high accuracy of digital electronics with the convenience and ease of use of an analog test gauge. Accurate to ± 0.05% FS, the DPG4000 can be used as a calibration reference, or in any application where high accuracy pressure measurement is required. - Page 4 These areas are also referred to as hazardous locations, see NFPA 70 Article 500. Misuse Should the DPG4000 be exposed to overpressure or sudden physical shock (i.e. being dropped) it should be examined for any damage that may cause a safety concern. If in doubt please return the unit for evaluation to OMEGA Engineering, Inc.
-
Page 5: Operation
To avoid possible damage to calibrator or to equipment under test: • If the message changes to "OL" the range limit is exceeded and the pressure source must immediately be removed from the DPG4000 to prevent damage to the pressure transducer inside. - Page 6 3. Display battery voltage. Actual voltage and a percent of life bargraph indicate battery condition 4. Display actual temperature. The DPG4000 is temperature compensated, this displays the temperature measured by the internal sensor. The value can be set to degrees F or degrees C using the arrow keys.
-
Page 7: Supervisory Mode
The password is factory set and cannot be changed 1. Your DPG4000 is shipped from the factory with all setting access “unlocked” or available to be changed. 2. In supervisory mode each of the parameters can be locked or unlocked using the keys. -
Page 8: Normal Operation
Batteries must only be changed in an area known to be non-hazardous. Grasp the face ring on the DPG4000, turn it approximately ¼ turn counterclockwise and remove. The face of the gauge can now be lifted to expose the battery holder. Take off the battery hold clip and remove the batteries. -
Page 9: Specifications
WARNING The RS-232 interface must not be used in hazardous areas. CLEANING To clean the DPG4000 use a cloth with a mild cleaning solution. Specifications All specifications cover the temperature range from 0°C to +50°C, unless otherwise noted. - Page 10 Over Pressure Protection: See table of Ranges and Resolutions. Temperature Compensation 0°C to +50°C (32°F to +122°F) to rated accuracy Note: For temperatures from –10 °C to 0 °C and 50 °C to 55 °C add .005% F.S./°C Standard Engineering Units PSI, Bar, kg/cm2, inH O (4°C, 20°C or 60°F), O (4°C, 20°C or 60°F), cmH...
-
Page 11: Appendix 1: Dpg4000 Calibration Procedure
TUR of 4:1 or better. Connections: The DPG4000 uses a 1/4 NPT male connection in the pressure input port. Various adapters may or may not be needed to connect to the pressure standard. Always make sure the hose, tubing, and fittings etc have a rated working pressure at or above the pressure of the unit. - Page 12 Procedure: Screens shown in this manual represent the displays shown with a 500 psi Gauge. The DPG4000 will prompt the technician for the appropriate pressure at each calibration point. 500.00 CAL MODE Use the Pressure Standard to output 500.00 psi (100%). After the output has stabilized, press the ENTER key to continue.
- Page 13 Use the Pressure Standard to output 312.50 psi (62.5%). After the output has stabilized, press the ENTER key to continue. As the unit takes readings, the screen will show ———-. When the readings are complete the screen should look as shown below. 250.00 CAL MODE Use the Pressure Standard to output 250.00 psi (50%).
- Page 14 0.00 CAL MODE Use the Pressure Standard to output 0.00 psi. After the output has stabilized, press the ENTER key to continue. As the unit takes readings, the screen will show ———-. When the readings are complete the screen should look as shown below. -12.00 CAL MODE Note: Only some ranges use vacuum calibration.
-
Page 16: List Of Commands
DPG4000 Serial Interface Instructions Initiating Communication The terminal communications can be setup using terminal communication software on a PC. The terminal settings need to be set as follows: • Bits per second: 9600 • Data bits: 8 • Parity: None •... - Page 17 CAL_STORE Stores calibration data. HC_AUTO_OFF Turns auto shutdown off HC_AUTO_ON Turns auto shutdown on CUST_MULT? Sets the multiplier for the custom unit type STREAM_OFF Turns streaming data off STREAM_ON Turns streaming data on HC_TEMP? Same as TEMP? VAL? Returns the measured pressure value in selected units HC_CMD_LIST Prints out a command list TEMP_UNIT...
-
Page 18: Error Codes
Error Codes Error Description A non-numeric entry was received where it should be a numeric entry Too many significant digits entered Invalid units or parameter value received Entry is above the upper limit of the allowable range Entry is below the lower limit of the allowable range A required command parameter was missing An invalid pressure unit was received An unknown command was received... - Page 19 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
