o Refit chimney section (C) to the hood and fix it onto the hood using the two screws
that are supplied.
o Secure the top of chimney section (C) to the flat bracket, using the screws provided.
o Slide chimney section (D) inside of chimney section (C). Then secure the L
shaped bracket to the wall, using the same method as you have just used to
secure the lower bracket.

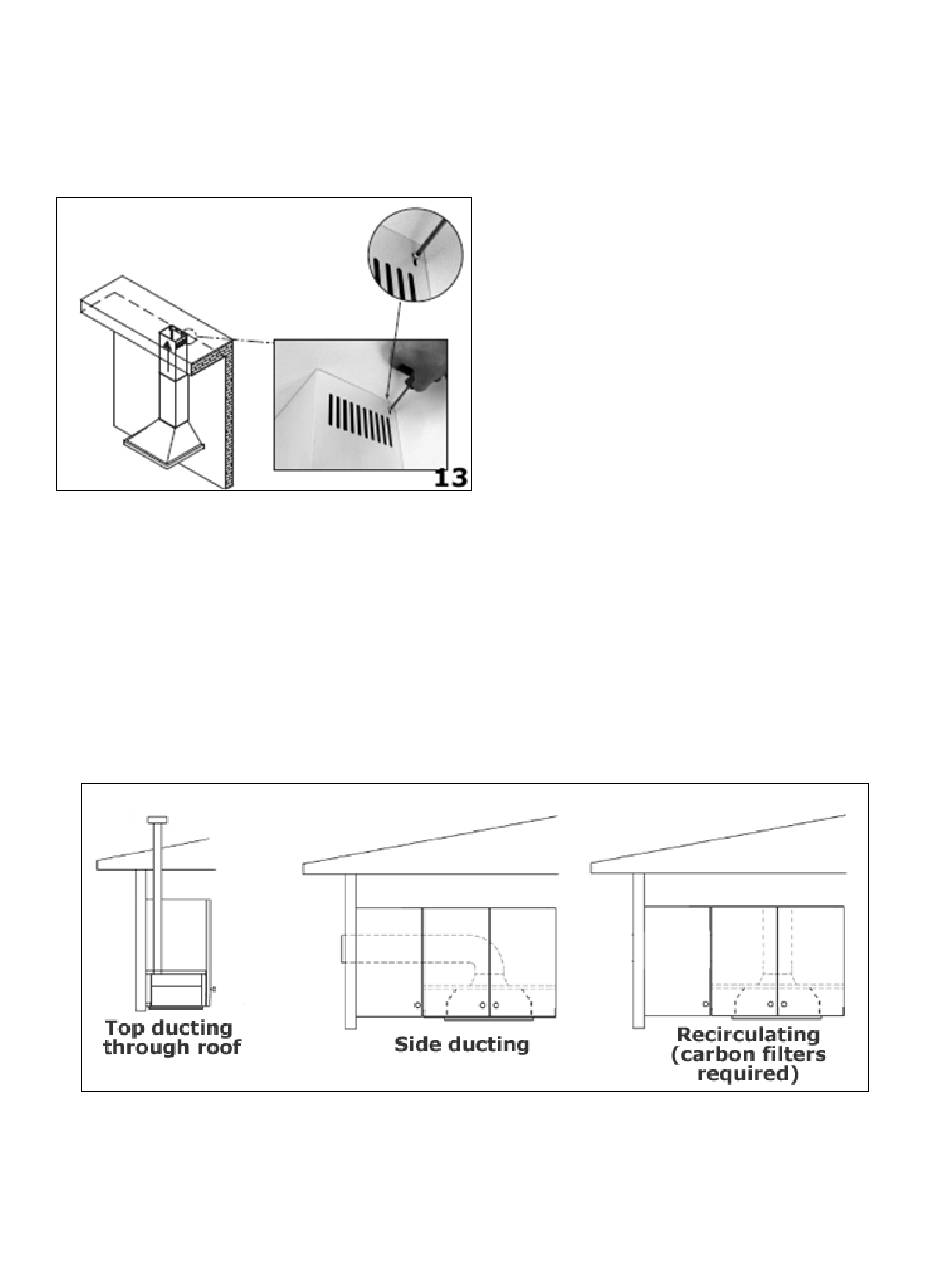

13) Lift chimney section (D) up to the ceiling and secure it to the L shaped bracket using
the screws provided.
Connecting to external ducting (top)
o Connect the coupling to the top of the rangehood, using two of the smaller
screws provided (if side ducting, this is either through the wall or the Soffit).
