RIDGID R6000-1 Operator's Manual

RIDGID R6000-1 Operator's Manual

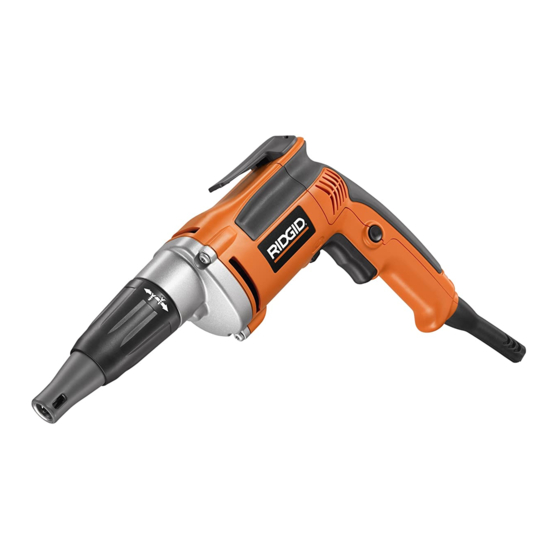

Drywall screwdriver variable speed/reversible double insulated
Hide thumbs Also See for R6000-1:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
Your drywall screwdriver has been engineered and manufactured to our high standard for dependability, ease of operation,
and operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
Thank you for buying a RIDGID
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
DRYWALL SCREWDRIVER
VARIABLE SPEED/REVERSIBLE
DOUBLE INSULATED
R6000-1
product.
®
1

Advertisement

Table of Contents
loading

Related Manuals for RIDGID R6000-1

Summary of Contents for RIDGID R6000-1

  • Page 1 When properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before using this product. Thank you for buying a RIDGID ® SAVE THIS MANUAL FOR FUTURE REFERENCE OPERATOR’S MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS  Introduction ... 2  General Safety Rules ...3-4  Specific Safety Rules ... 4  Symbols ...5-6  Electrical ... 7  Features ... 8  Assembly ... 9  Operation ...10-11  Maintenance ... 12 ...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES WARNING: Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA  Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.

  • Page 4: Specific Safety Rules

    GENERAL SAFETY RULES SERVICE  Tool service must be performed only by qualified re- pair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. SPECIFIC SAFETY RULES  Hold tool by insulated gripping surfaces when per- forming an operation where the cutting tool may contact hidden wiring or its own cord.

  • Page 5: Symbols

    SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME Volts Amperes Hertz Watt Minutes Alternating Current Direct Current...

  • Page 6: Symbols

    To avoid serious personal injury, do not attempt to use this product until you read thoroughly and understand completely the operator’s manual. If you do not understand the warnings and instructions in the operator’s manual, do not use this product. Call RIDGID assistance. customer service for ®...

  • Page 7: Electrical

    ELECTRICAL DOUBLE INSULATION Double insulation is a concept in safety in electric power tools, which eliminates the need for the usual three-wire grounded power cord. All exposed metal parts are isolated from the internal metal motor components with protect- ing insulation. Double insulated tools do not need to be grounded.

  • Page 8: Features

    FEATURES PRODUCT SPECIFICATIONS Bit Shank ... 1/4 in. Switch ...Variable Speed No Load Speed ...0-4,000 r/min. (RPM) ADJUSTABLE NOSEPIECE MAGNETIC BIT HOLDER KNOW YOUR DRYWALL SCREWDRIVER See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting.

  • Page 9: Assembly

    ASSEMBLY UNPACKING This product requires assembly.  Carefully remove the product and any accessories from the box. Make sure that all items listed in the packing list are included.  Inspect the product carefully to make sure no breakage or damage occurred during shipping. ...

  • Page 10: Operation

    OPERATION WARNING: Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict severe injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating products. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

  • Page 11: Operation

    OPERATION SETTING DEPTH See Figure 5. The adjustable nosepiece of the tool will automatically drive screws to preset depths. It may be helpful to begin each new job by driving several test screws in scrap material to check and adjust the depth setting. To make preset depth adjustments: ...

  • Page 12: Maintenance

    MAINTENANCE WARNING: When servicing use only identical RIDGID replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust.

  • Page 13: Warranty

    Tools covers all defects in workmanship or materials and normal wear items such as brushes, chucks, motors, switch- es, cords, gears and even cordless batteries in this RIDGID tool for three years following the purchase date of the tool. Warranties for other RIDGID products may vary.

  • Page 14: Customer Service Information

    DOUBLE INSULATED R6000-1 Customer Service Information: For parts or service, contact your nearest RIDGID sure to provide all relevant information when you call or visit. For the location of the authorized service center nearest you, please call 1-866-539-1710 or visit us online at www.ridgid.com.
