Grizzly H8100 Instruction Sheet

always wear aNSI approved
safety glasses when using
this log splitter!
Introduction
the Model 8100 8-ton log splitter will split logs
from 14 ⁄ " to 23 ⁄ ", and the hydraulic 6" ram
1 1
4 4
stroke will separate the toughest grain.
J
i
C
D
K
B

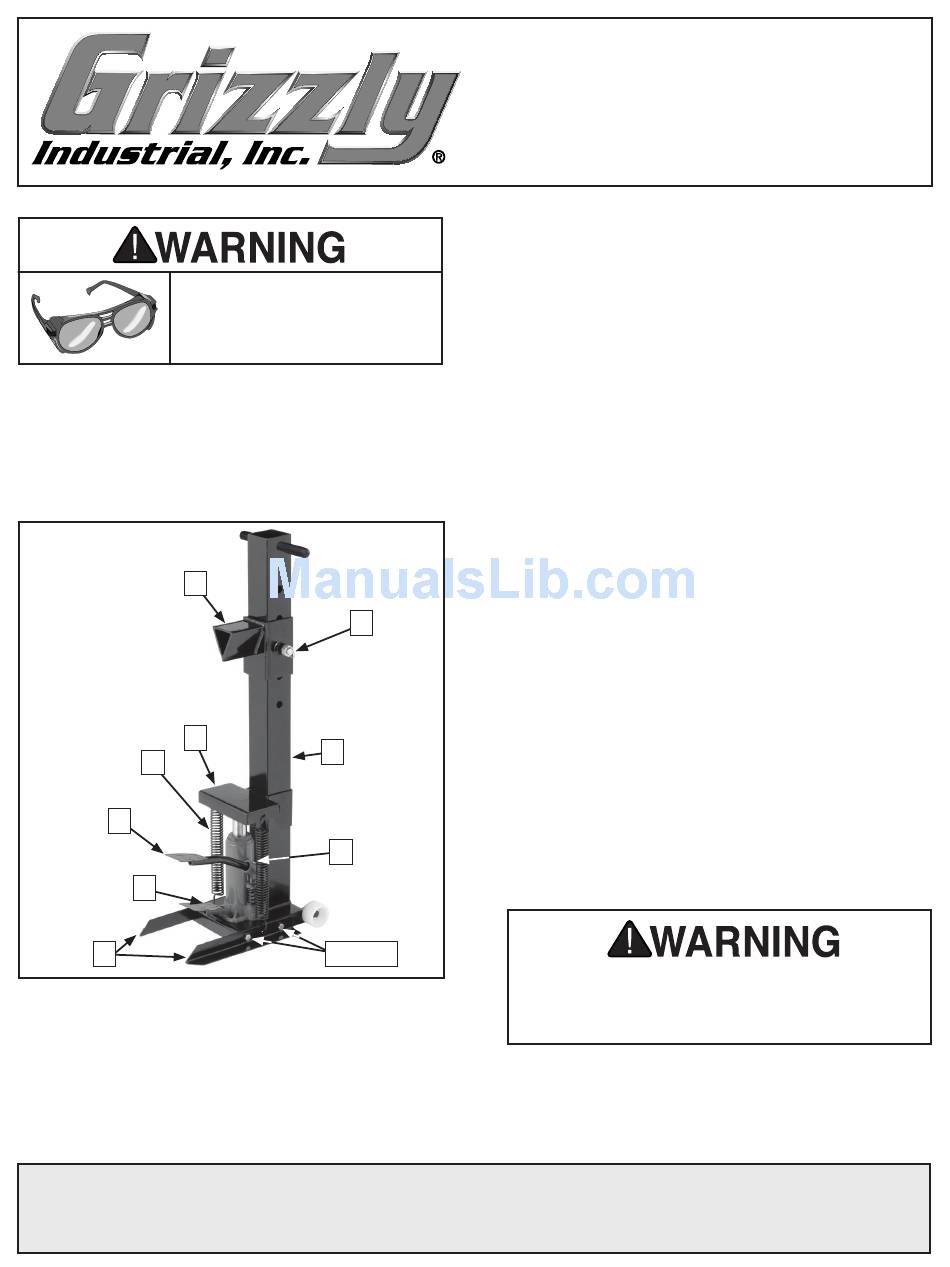

figure 1. Model h8100.
Copyright © DECEMBEr, 2006 By grizzly inDustrial, inC. rEvisED May, 2009 (tr)
WaRNING: NO PORTION Of THIS MaNUaL May bE REPRODUCED IN aNy SHaPE
OR fORM WITHOUT THE WRITTEN aPPROvaL Of GRIzzLy INDUSTRIaL, INC.
EyE INJURy HazaRD!
l
a
E
F, g, h
(For MoDEls MFg sinCE 5/09) #ts8805 printED in China
MODEL H8100
8 TON LOG SPLITTER
INSTRUCTION SHEET
Inventory & Identification:
a. log splitter Main Body ............................... 1
b. stabilizer Bars ............................................ 2
C. return springs ........................................... 2
D. Elevation Foot pedal .................................. 1
E. hex Bolt M6-1 x 16 (foot pedal) ................. 1
f.
hex Bolts M10-1.5 x 25 (stabilizer bars) .... 4
G. hex nuts M10-1.5 (stabilizer bars)............. 4
H. lock Washers 10mm (stabilizer bars) ........ 4
I.
splitter Workbench ..................................... 1
J.
Wedge assembly ....................................... 1
K. pressure release pedal ............................ 1
L.
Wedge release pins (one on each side) .. 2
assembly
Note: Refer to the Parts breakdown for
additional assembly details.
1. insert the elevation foot pedal into the hydrau-
lic pump bracket and secure it with the M6-1.0
x 16 hex bolt.
2.
attach the stabilizer bars to the base with the
M10-1.5 x 25 hex bolts, hex nuts, and lock
washers.
3.
install the return springs between the splitter
workbench and the base.
This log splitter is only intended to be used
to split logs! Serious injury may occur if this
log splitter is used for any other purpose.
If you need help with your new log splitter, call our
Tech Support at: (570) 546-9663.
(figure 1)
