Panasonic EH-HV10 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Styling Iron
  5. EH-HV10
  6. Service manual

Panasonic EH-HV10 Service Manual

(household) straight & curl straightener
Hide thumbs Also See for EH-HV10:

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Warning ----------------------------------------------------------- 2
2 Specifications ---------------------------------------------------2
3 Troubleshooting Guide --------------------------------------3
5 Wiring Connection Diagram--------------------------------- 7
6 Schematic Diagram -------------------------------------------- 8

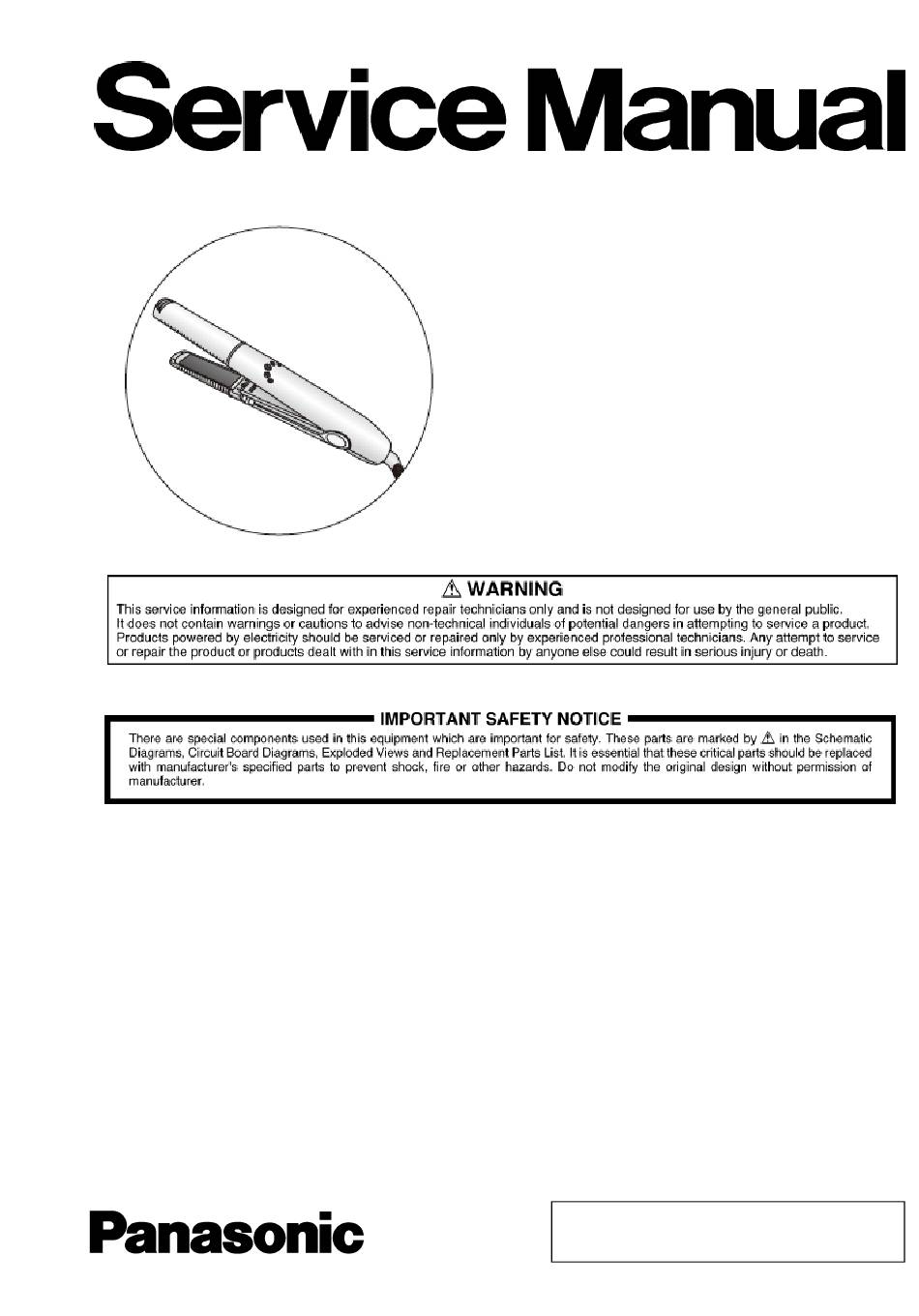

(Household) Straight & Curl Straightener
