MK-F500WSD-HK
Model No.
MK-F500WTJ-ZA
MK-F500WTN-AE
MK-F500WTN-EG
MK-F500WTN-IQ
MK-F500WTN-IR
MK-F500WTN-JO
MK-F500WTQ-KZ
MK-F500WTQ-RU
MK-F500WTQ-UA
MK-F500WTZ-AE
MK-F500WTZ-AF
MK-F500WTZ-KW
MK-F500WTZ-NG
MK-F500WTZ-OM
MK-F500WTZ-PK
MK-F500WTZ-QA
MK-F500WTZ-SA
MK-F500WTZ-SD
MK-F500WXC-GB
MK-F500WXE-BE
MK-F500WXE-DE
MK-F500WXE-FR
MK-F500WXE-IT
MK-F500WXE-NL
Destination:
Hong Kong, South Africa, UAE, Egypt,
Iraq, Iran , Jordan, Kazakstan, Russia,
Ukraine, Afghanistan, Kuwait, Nigeria,
Oman, Pakistan, Qatar, Saudi Arabia,
Sweden, Great Britain, Belgium,
Denmark, France, Italy, Netherlands
© 2016 Panasonic Manufacturing Malaysia Berhad
(6100-K). Unauthorized copying and distribution is a
violation of law.
ORDER NO. PMMA151137CE

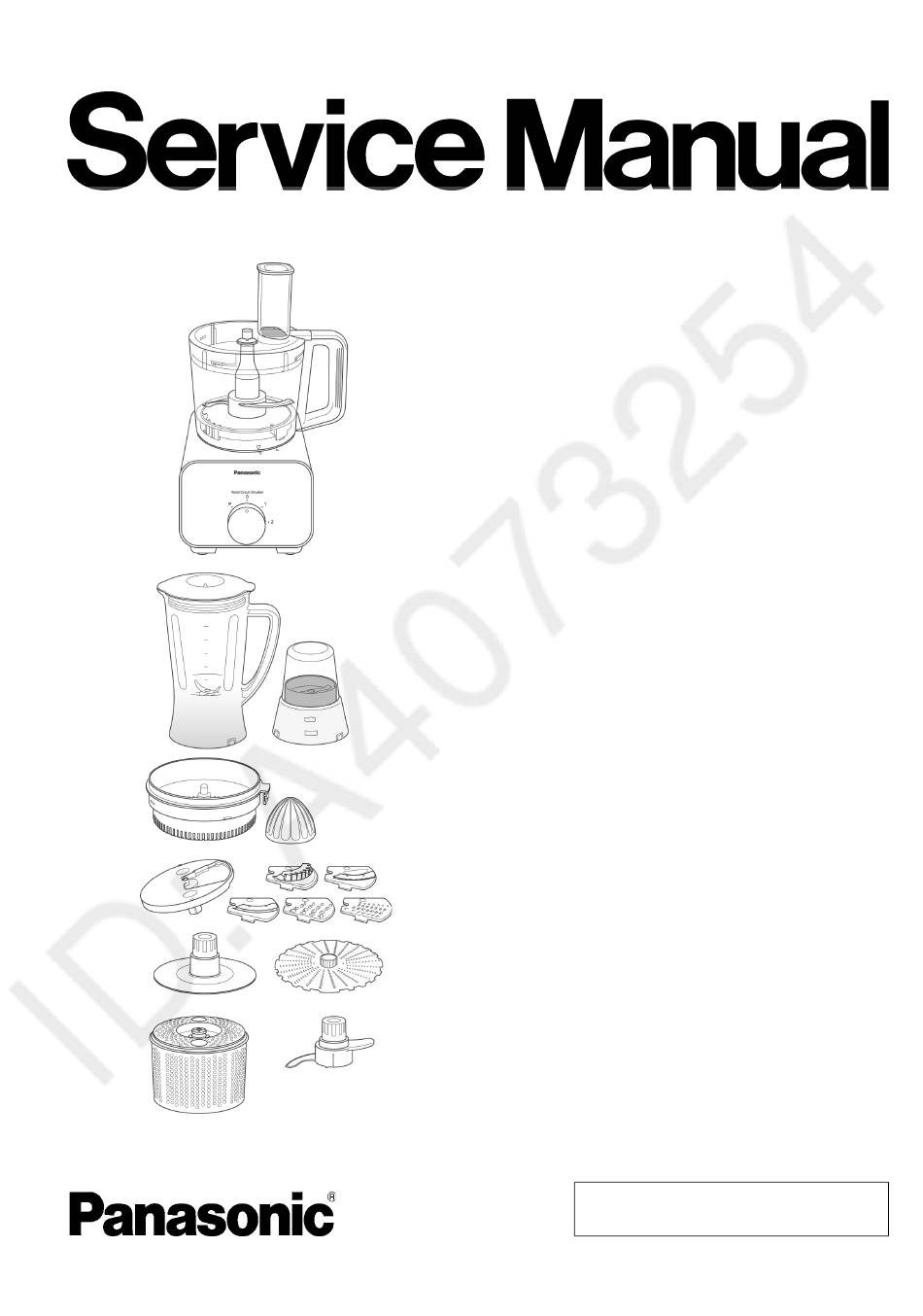

Food Processor
Advertisement
Table of Contents
Related Manuals for Panasonic MK-F500WSD-HK
Summary of Contents for Panasonic MK-F500WSD-HK
- Page 1 Hong Kong, South Africa, UAE, Egypt, Iraq, Iran , Jordan, Kazakstan, Russia, Ukraine, Afghanistan, Kuwait, Nigeria, Oman, Pakistan, Qatar, Saudi Arabia, Sweden, Great Britain, Belgium, Denmark, France, Italy, Netherlands © 2016 Panasonic Manufacturing Malaysia Berhad (6100-K). Unauthorized copying and distribution is a violation of law.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE PAGE 1 Specifications ------------------------------------------------------3 2 Wiring Connection Diagram -----------------------------------4 2.1. Actual Wiring Diagram ------------------------------------4 2.2. Wiring Connection Diagram (EMC Model)-----------5 2.3. Wiring Connection Diagram (Non-EMC Model)---------------------------------------------------------6 3 Schematic Diagram-----------------------------------------------7 3.1. EMC Model --------------------------------------------------7 3.2. Non-EMC Model--------------------------------------------7 4 Troubleshooting Guide------------------------------------------8 5 Disassembly and Assembly Instructions -----------------9 5.1. -
Page 3: Specifications
1 Specifications Product No. MK-F500 Function Food Processor Blender & Dry Mill Rated Voltage 220 V - 240 V Rated Frequency 50 Hz - 60 Hz Rated Power Consumption 180 W - 200 W Blender : 2 minutes ON, 2 minutes OFF Rated Time 2 minutes ON, 4 minutes OFF Dry Mill : 1 minute ON, 2 minutes OFF... -
Page 4: Wiring Connection Diagram
2 Wiring Connection Diagram 2.1. Actual Wiring Diagram... -
Page 5: Wiring Connection Diagram (Emc Model)
2.2. Wiring Connection Diagram (EMC Model) -
Page 6: Wiring Connection Diagram (Non-Emc Model)
2.3. Wiring Connection Diagram (Non-EMC Model) -
Page 7: Schematic Diagram
3 Schematic Diagram 3.1. EMC Model 3.2. Non-EMC Model... -
Page 8: Troubleshooting Guide
4 Troubleshooting Guide... -
Page 9: Disassembly And Assembly Instructions
5 Disassembly and Assembly Instructions 5.1. Disassembly of Bottom Assembly Step 1 Remove 3 Screws. Step 5 Detach the Wire Connector (Blue and Brown) and remove the Bottom Assembly. Step 2 Pull up the Bottom Assembly. Step 3 Remove 3 Screws. Step 4 Take out the Dressing Box Cover. -
Page 10: Disassembly Of Switch
5.2. Disassembly of Switch 5.3. Disassembly of Speed Controller Step 1 Pull out the Knob. Step 1 Detach the 4 Wire Connector (Yellow, Green, White & Black) and pull out the Speed Controller. Step 2 Pull out the Rotary Switch. Step 2 Remove 2 screws. -
Page 11: Disassembly Of Motor Unit
5.4. Disassembly of Motor Unit Step 4 Pull up the Speed Controller. Step 2 Release 3 Catches and pull out the Motor. Step 5 Pull out the Spring from Speed Controller. Step 2 Hold the bottom side and turn the Top Side to clockwise and release the Motor Unit. - Page 12 Step 4 Remove 3 Screws and pull up the part.
-
Page 13: Exploded View And Replacement Parts List
6 Exploded View and Replacement Parts List 6.1. Location of Parts... -
Page 15: Packing Instruction
6.2. Packing Instruction... -
Page 16: Replacement Part List
6.3. Replacement Part List Important safety notice: Components identified by mark have special characteristics important for safety. When replacing any of these components, use only manufacturer’s specified parts. 6.3.1. Part List Safety Ref. Part No. Part Name & Description Remarks AUG91-153-K0 CONNECTOR B UNIT AUG90-153-K0... -
Page 17: Packing List
6.3.2. Packing List Safety Ref. Part No. Part Name & Description Remarks AUZ01E155 CARTON BOX AUZ01K155 CARTON BOX RUSSIA AUZ01J155 CARTON BOX PGF, SUDAN, PAKISTAN, AFGHANISTAN, NIGERIA, UAE, SAUDI ARABIA, KUWAIT, OMAN, QATAR, IRAN, IRAQ, EGYPT, JORDAN, SOUTH AFRICA, HONG KONG AUZ50H155 OPERATING INSTRUCTION HONG KONG...
