      DSE1‐PW SOUNDER WITH REMOTE POWER SUPPLY



INTRODUCTION

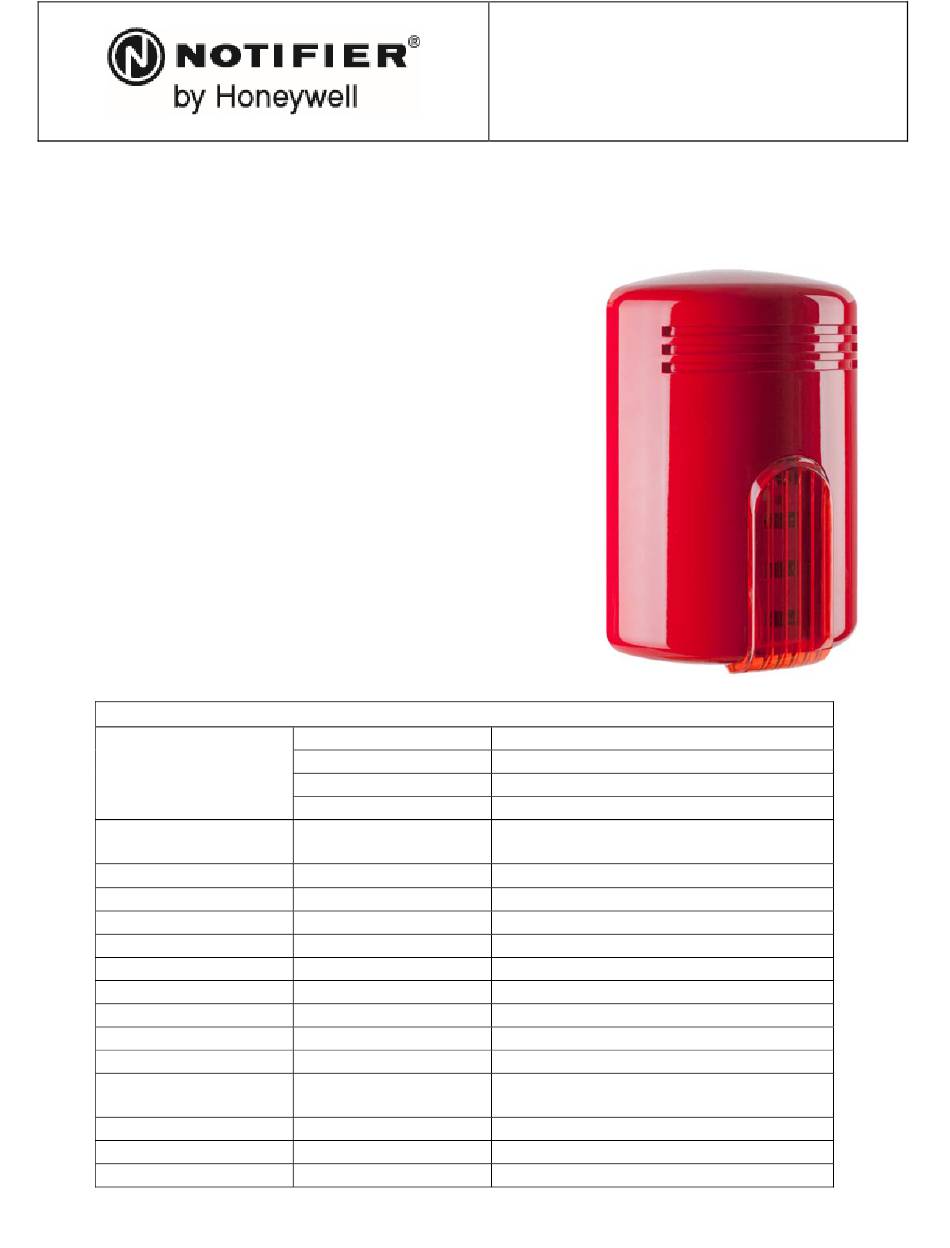

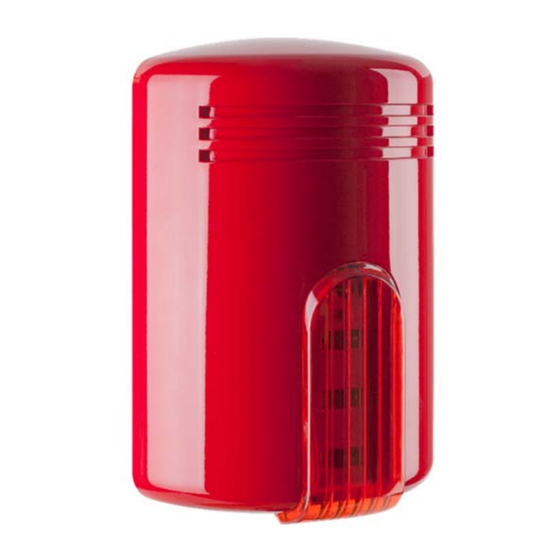

DSE1‐PW sounder  description:  remote‐supplied
24Vdc  sounder  with  high‐brightness,  low
consumption  LED  flashing  unit  –  programmable
alarms  and  timings  –  flash  and  sound  inputs
programmable  separately  –  electronic  circuit
protected  against  polarity  inversion  thanks  to  a
special resin immersion process.
Three  inputs  with  different  sounds  for  a  better
distinction  of  the  alarm  stages,  input  for  sound
synchronism. Six available sounds.
  Note: To open the sounder, push downwards and
outwards  at  the  same  time  the  flash  cover  and
unscrew the screw.

Voltage, Current, Power
Sound current
Flash current
Main sound frequency
Main sound pattern
Sound pressure
LED flash duration
Protection degree
Environmental degree
Operating temperature
Timing
Command from the
control panel
Size
Weight
Standards





INSTALLATION MANUAL
TECHNICAL DATA
Nominal Voltage supply
Operating range
Max. current
Max Power consumption  11W


S1
S1










S-288.1-DSE1-PW-ENG
DSE1-PW
Sounder with remote power supply



















24 Vdc
20 ‐ 30 Vdc
450mA @ Vdc=24V
from 60mA to 400mA (programmable – see
Chart 6: AVERAGE CURRENT SELECTION)
40 mA  10 mA
850Hz
Decay from 1.200Hz to 500Hz period 1,7s
See diagram 1
1.000.000 flashes
IP 44
IV (outdoor)
from –25° to  +55° C
Programmable (see chart)
Polarity inversion
330x210x115 (H x L x D)
2.300 gr
EN 54‐3: 2001 + A1: 2002 + A2: 2006.
Rev. A.1
02/2018
