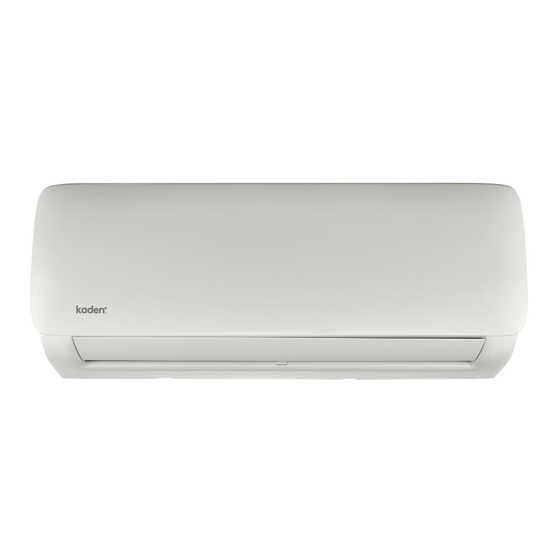

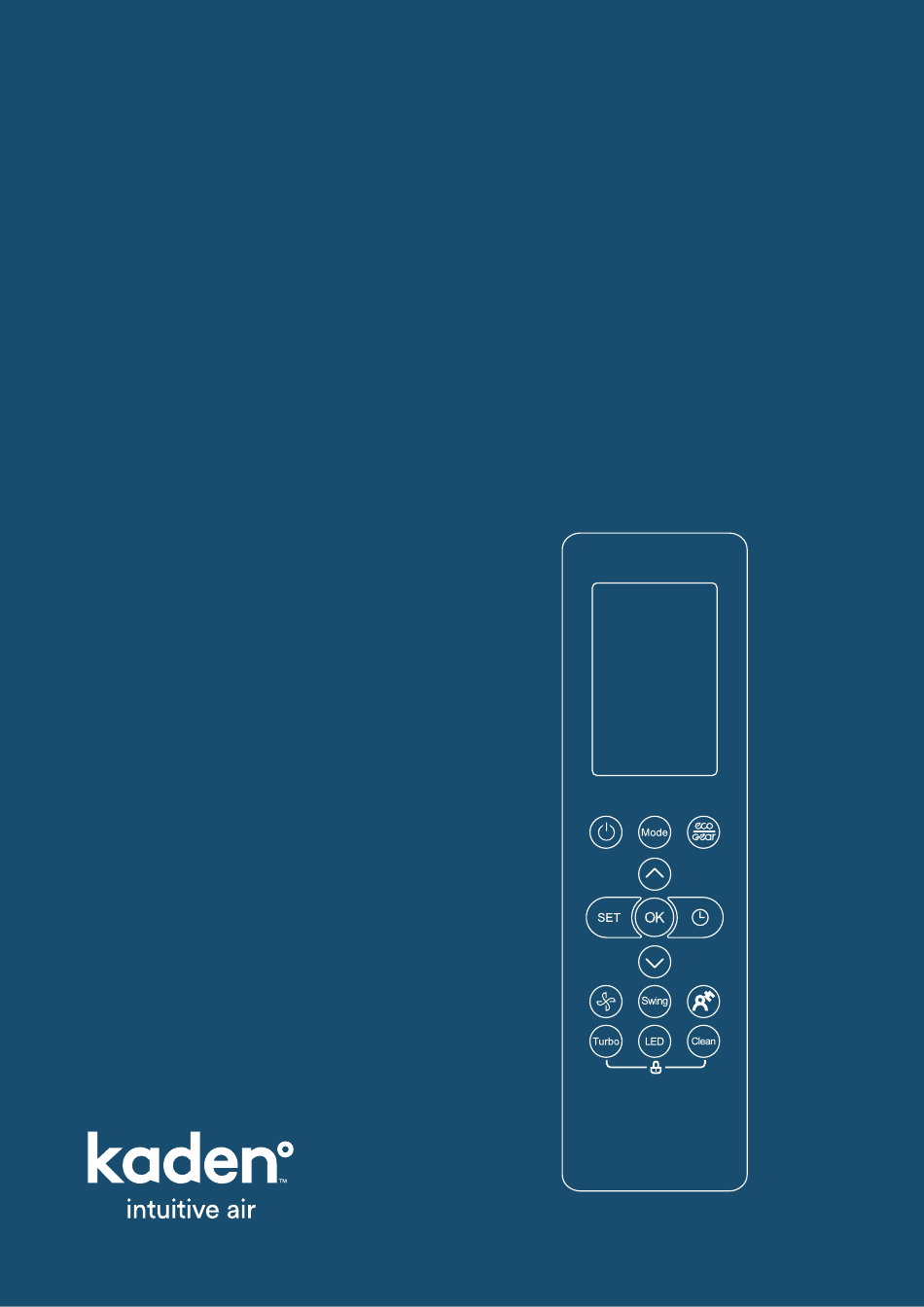

- Page 1 WALL MOUNTED AIR CONDITIONER Remote Controller Manual KSI SERIES KSI06 | KSI09 | KSI12 KSI18 | KSI24 | KSI28...
- Page 2 2 | Kaden Remote Controller Manual...
-
Page 3: Table Of Contents
5. How to use the basic functions 6. How to use the advanced functions Important note Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Kaden Remote Controller Manual | 3... -
Page 4: Remote Controller Specifications
1% increments. environment. SWING Starts and stops the horizontal TURBO louvre movement. Hold down for Enables unit to reach preset 2 seconds to initiate vertical louvre temperature in shortest auto swing feature. possible time. 4 | Kaden Remote Controller Manual... -
Page 5: Handling The Remote Controller
Do not leave batteries in the remote control if you don’t plan on using the device for more than 2 months. Battery disposal Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries. Kaden Remote Controller Manual | 5... -
Page 6: Remote Lcd Screen Indicators
This display is blank when operating in FAN mode. Note: All indicators shown in the figure are for the purpose of clear presentation. But during actual operation, only the relative function signs are shown on the display window. 6 | Kaden Remote Controller Manual... -
Page 7: How To Use The Basic Functions
3. Press the FAN button to select the fan speed. 4. Press the ON/OFF button to start the unit. Setting temperature The operating temperature range for units is 17ºC – 30ºC. You can increase or decrease the set temperature in 1ºC increments. Kaden Remote Controller Manual | 7... - Page 8 2. Press the FAN button to select the fan speed. 3. Press the ON/OFF button to start the unit. NOTE: You can’t set temperature in FAN mode. As a result, your remote control’s LCD screen will not display temperature. 8 | Kaden Remote Controller Manual...
- Page 9 24, it will increase in 1 hour increments. The timer will revert to zero after 24 hours. You can turn off either function by setting its timer to “0.0h” Example: Setting unit to turn on after 2.5 hours Kaden Remote Controller Manual | 9...
- Page 10 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically turn off at 9:00 PM. Do the following: 3 sec Timer 3 sec Timer 10 | Kaden Remote Controller Manual...
- Page 11 Timer is set to turn ON Timer is set to turn OFF 6 hours from current time 8 hours from current time Timer starts Unit turns Unit turns Current time 1PM 6 hours later 8 hours later Kaden Remote Controller Manual | 11...
-
Page 12: How To Use The Advanced Functions
(and don’t need the same temperature settings to stay comfortable). This function can only be activated via remote control. For detail, see “sleep operation” in NOTE: You can only activate this function in COOL or OWNER’S MANUAL. DRY mode. 12 | Kaden Remote Controller Manual... - Page 13 10 seconds. FRESH function When the FRESH function is initiated, the ion generator is energized and will help to purify the air in the room. Breeze away / fresh / sleep / follow me function Kaden Remote Controller Manual | 13...
- Page 14 3 minute interval. When using AUTO, COOL, or HEAT modes, measuring ambient temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to optimise the temperature around you and ensure maximum comfort. 14 | Kaden Remote Controller Manual...
- Page 15 SWING button. Press again to make it stop. louvre SWING function is activated (model dependent). Wi-Fi operation setup For instructions on setting up Wi-Fi connectivity for your Kaden air conditioner, please scan the QR code below, or visit kadenair.com.au...
- Page 16 kadenair.com.au...
