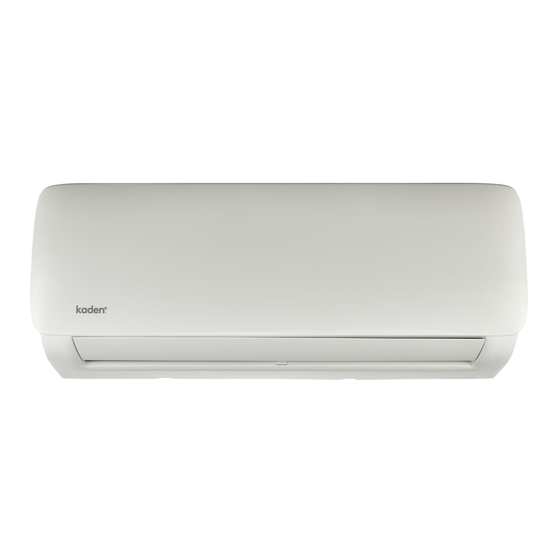

- Page 1 R32 WALL MOUNTED AIR CONDITIONER Installation Manual KSI Series KSI06 | KSI09 |KSI12 | KSI18 | KSI24 | KSI28...
- Page 2 Important note This appliance must be installed in accordance with: Manufacturer’s Installation Instructions Current AS/NZS 3000, AS/NZS 5149 Local Regulations and Municipal Building Codes including local OH&S requirements This appliance must be installed, maintained, and removed only by an Authorised Person. For continued safety of this appliance, it must be installed and maintained in accordance with the manufacturer’s Instructions.
-
Page 3: Table Of Contents
Before test run Test run instructions 11. Electrical diagrams 12. Error codes Important note Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Kaden Installation Manual | 3... -
Page 4: Safety Precautions
Children must not weight, or the installation is not done properly, the unit play with the appliance. Cleaning and user maintenance may drop and cause serious injury and damage. must not be made by children without supervision. 4 | Kaden Installation Manual... - Page 5 60335.2.40 to determine the safe minimum floor area for the installation. Make sure that the area has been made safe by having suitable ventilation and is free from ignition sources before charging or recovering the charge of R32. Kaden Installation Manual | 5...
-
Page 6: Accessories
Mounting plate fixing screw ST3.9 X 25 Remote controller Fixing screw for remote controller holder ST2.9 x 10 Remote controller holder Dry battery AAA.LR03 Drain seal Drain joint Owner’s manual Installation manual Remote controller manual 6 | Kaden Installation Manual... -
Page 7: Unit Parts
Remote control Remote control holder (some units) Outdoor unit power cable (some units) Note on illustrations Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. Kaden Installation Manual | 7... -
Page 8: Installation Summary -Indoor Unit
4. Installation summary – indoor unit 10cm 12cm 12cm 2.3m Select installation location (page 11) Determine wall hole position (page 11) Attach mounting plate (page 12) Drill wall hole (page 12) 8 | Kaden Installation Manual... - Page 9 Connect piping (page 26) Connect wiring (page 17) Prepare drain hose (page 15) Wrap piping and cable (page 19) STEP Mount indoor unit (page 19) Kaden Installation Manual | 9...
-
Page 10: Indoor Unit Installation
✓ Firm and solid — the location will not vibrate ✓ Strong enough to support the weight of the unit ✓ A location at least one meter from all other electrical devices (e.g. TV, radio, computer) 10 | Kaden Installation Manual... - Page 11 5mm diameter holes in the wall and insert the sleeve When drilling the wall hole, make sure to avoid wires, anchors provided. Then secure the mounting plate to the plumbing, and other sensitive components. wall by tightening the screws directly into the clip anchors. Kaden Installation Manual | 11...
- Page 12 Width of indoor unit relative to plate • Height of indoor unit relative to plate • Recommended position of wall hole (both to the left and right of mounting plate) • Relative distances between screw holes 12 | Kaden Installation Manual...
- Page 13 406.4mm 377.8mm 338.2mm 71.6mm 25.7mm 346.8mm 453.2mm Model A – KSI06 / KSI09 / KSI12 645±1mm 531±0.5mm 65mm 65mm 65mm 65mm 65mm 65mm 54mm 429.5±0.5mm Model E - KSI18 / KSI24 / KSI28 Kaden Installation Manual | 13...
- Page 14 This will prevent proper drainage. Plug the unused drain hole To prevent unwanted leaks you must plug the unused drain hole with the rubber plug provided. 14 | Kaden Installation Manual...
- Page 15 The indoor unit is powered by the outdoor unit. Do not power indoor unit from separate power source. Cable Conductor Type Remarks size (mm²) Connection Type 3 cable + Earth cable 60245 (Ground) IEC 57 1 Ø 230 V Kaden Installation Manual | 15...
-
Page 16: Electrical Wiring Work
10mm 3. Attach round crimp-type terminal to each wire as shown below. Select the size of round crimp-type terminal after considering the specifications of terminal block and wire diameter. 10mm Round crimp type terminal Sleeve 16 | Kaden Installation Manual... -
Page 17: Take Note Of Fuse Specifications
5. Feed the signal wire through this slot, from the back of the unit to the front. 6. Facing the front of the unit, connect the wire according to the indoor unit’s wiring diagram, connect the u-lug and firmly screw each wire to its corresponding terminal. Kaden Installation Manual | 17... -
Page 18: Drain Hose Must Be On Bottom
6. Remove the bracket or wedge that is propping up the unit. 7. Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate. 18 | Kaden Installation Manual... -
Page 19: Outdoor Unit Installation
✕ Near animals or plants that will be harmed by hot air discharge. ✕ Near any source of combustible gas. ✕ In a location that is exposed to large amounts of dust. ✕ In a location exposed to a excessive amounts of salty air. Kaden Installation Manual | 19... - Page 20 In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and flood the unit. Base pan hole of outdoor unit Seal Seal Drain joint 20 | Kaden Installation Manual...
- Page 21 7. Put washer on each expansion bolt, then replace the nuts. 8. Using a wrench, tighten each nut until snug. WARNING When drilling into concrete, eye protection is recommended at all times. Kaden Installation Manual | 21...
-
Page 22: To Reduce Vibrations Of Wall Mounted Unit
Step 3: Connect signal and power cables The outside unit’s terminal block is protected by an electrical wiring cover on the side of the unit. A comprehensive wiring diagram is printed on the inside of the terminal cover. 22 | Kaden Installation Manual... - Page 23 10mm from the end. 3. Attach round crimp-type terminal to each wire as shown to the right. Select the size of round crimp-type terminal after considering the specifications of terminal block and wire diameter. Kaden Installation Manual | 23...
-
Page 24: Pay Attention To Line Wire
While crimping wires, make sure you clearly distinguish the line (“L”) wire from other wires. WARNING All wiring must performed strictly in accordance with the wiring diagram located inside the outdoor unit’s terminal cover and to local and national requirements. 24 | Kaden Installation Manual... -
Page 25: Refrigerant Piping Connection
✕ ✕ ✕ 2. Using a pipe cutter, cut the pipe a little longer than the 90° Oblique Rough Warped measured distance. 3. Make sure that the pipe is cut at a perfect 90° angle. Kaden Installation Manual | 25... - Page 26 2. Sheath the pipe with insulating material. 8. Remove the flaring tool and flare form, then inspect the end of the pipe for cracks and even flaring. Flare form Flare nut Copper pipe Pipe 26 | Kaden Installation Manual...
-
Page 27: Minimum Bend Radius
Ø 6.35 Ø 9.52 Ø 12.70 Ø 15.88 DO NOT USE EXCESSIVE TORQUE Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque requirements shown in the table above. Kaden Installation Manual | 27... -
Page 28: Instructions For Connecting Piping To Outdoor Unit
7. Loosen the flaring nut slightly, then tighten again. 8. Repeat Steps 3 to 6 for the remaining pipe. 28 | Kaden Installation Manual... -
Page 29: Leak Testing And Evacuation
9. If the vacuum does not settle, repeat from Step 1 of Leak, pressure test and evacuation. If there is no change in system vacuum, unscrew the cap from the packed valve (high pressure valve). Low pressure Vacuum valve pump Kaden Installation Manual | 29... -
Page 30: Preparations And Precautions
4. Using hexagonal wrench, fully open both the high pressure and low pressure valves. 5. Tighten valve caps on all three valves (service port, high pressure, low pressure) by hand. You may tighten it further using a torque wrench if needed. 30 | Kaden Installation Manual... -
Page 31: Electrical Checks
Electrical safety checks Wi-Fi operation setup After installation, confirm that all electrical wiring is installed For instructions on setting up Wi-Fi connectivity for your Kaden in accordance with local and national requirements, and air conditioner, please scan the QR code below, according to the Installation Manual. -
Page 32: Test Run
Water drains properly from drain hose All piping is properly insulated Unit performs COOL function Manual control button properly Unit performs HEAT function properly Indoor unit louvres rotate properly Indoor unit responds to remote controller 32 | Kaden Installation Manual... -
Page 33: Electrical Diagrams
Yellow-green conductor AC-FAN Alternating current FAN Positive and negative ion generator DC-FAN Direct current FAN Capacitor COMP Compressor PLASMA Electronic dust collector L-PRO Low pressure switch LIVE H-PRO High pressure switch NEUTRAL Electronic expansion valve Kaden Installation Manual | 33... - Page 34 For setting netaddress (CCM comm. bus) - - - - ENC3+F1 (Multi-function control board) This symbol indicates the element is optional, the actual Code shape shall prevail. Netaddress 0~15 16~31 32~47 48~63 Factory setting 34 | Kaden Installation Manual...
- Page 35 Multi-function control box CN1 (CN201) Optional Wire Optional controller Magnet ring CN3 (CN301) Optional Optional (CN101/CN01) To outdoor unit - - - - This symbol indicates the element is optional, the actual shape shall prevail. Kaden Installation Manual | 35...
- Page 36 CN30 Blue CN29 Black CN25 CN28 2/3/4/5 Black CN21 CN31 This symbol indicates the element exists at various Compressor locations. RJ45 is a port for user DC-Fan to connect. Optional Electronic 16022000033989 expansion valve optional 36 | Kaden Installation Manual...
- Page 37 Optional Black Capacitor Optional: AC-fan Compressor Yellow/white Optional CN17 CN414 CN18 - - - - DC-fan This symbol indicates the Electronic Optional expansion valve element is optional, the actual DC-fan optional shape shall prevail. 16022000033970 Kaden Installation Manual | 37...
- Page 38 Outdoor unit printed circuit board diagram: 17122000044714, 17122000048121, 17122000046453 38 | Kaden Installation Manual...
- Page 39 Connect to pipe temp. sensor T3, ambient temp. sensor T4, exhaust temp. sensor TP DC-FAN Connect to DC fan FAN_IPM IPM501 IPM for DC fan CN28 Connect to compressor CN29 0V AC (standby) CN30 10-200V AC (running) COMP_IPM IPM 301 IPM for compressor Kaden Installation Manual | 39...
- Page 40 Outdoor unit printed circuit board diagram: 17122000044714, 17122000048121, 17122000046453 40 | Kaden Installation Manual...
- Page 41 Connect to DC fan TESTPORT CN23 Used for testing FAN_IPM IPM501 IPM for DC fan COMP_IPM IPM1 IPM for compressor CN27 Connect to compressor CN28 0V AC (standby) CN29 200-300V AC (running) EE_PORT CN505 EEPROM programer port Kaden Installation Manual | 41...
-
Page 42: Error Codes
Communication error between outdoor main chip and TS33 △ compressor driven chip 7 times PC 03 Low pressure protection TS13-INV △ 1 time Indoor units mode conflict (match with multi outdoor unit) TS14 ○ ○ ✕ flash △ 42 | Kaden Installation Manual... - Page 43 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website. Please check for the latest version. Kaden Installation Manual | 43...
