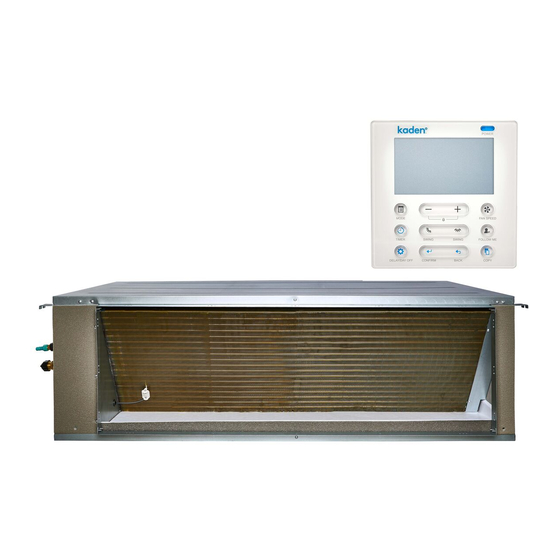

Kaden KD Series Owner's Manual
Ducted air conditioner
Hide thumbs
Also See for KD Series:
- Manual (20 pages) ,
- Installation manual (36 pages) ,
- Installation manual (36 pages)
Related Manuals for Kaden KD Series
Summary of Contents for Kaden KD Series
- Page 1 DUCTED AIR CONDITIONER Owner’s Manual KD Series KD36 | KD42 | KD48 | KD60 Kaden Owner’s Manual | 1...
-
Page 3: Table Of Contents
2. Indoor Unit Parts and Major Functions 3. Care and Maintenance 4. Troubleshooting 5. Disposal Guidelines Important note: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Kaden Owner’s Manual | 3... -
Page 4: Safety Precautions
• If the air conditioner is used together with other heating devices, thoroughly ventilate the room to avoid oxygen deficiency. • Do not climb onto or place objects on top of the outdoor unit. 4 | Kaden Owner’s Manual... - Page 5 10mA shall be incorporated in the fixed wiring according to the national rule. • The appliance shall be installed in accordance with national wiring regulations. • Children should be supervised to ensure that they do not play with the appliance. Kaden Owner’s Manual | 5...
-
Page 6: Indoor Unit Parts And Major Functions
In case of power failure, the system will immediately stop. When power returns, the Operation light on the indoor unit will flash. To restart the unit, press the ON/OFF button on the wired control. If the system has an auto restart function, the unit will restart using the same settings. 6 | Kaden Owner’s Manual... - Page 7 • Doors and windows should be kept closed to keep cool or if applicable. warm air in the room. • Adjust louvers properly and avoid direct airflow. Closing curtains during heating also Doors and windows helps keep the heat in should be kept closed Kaden Owner’s Manual | 7...
-
Page 8: Care And Maintenance
• Do not use water hotter than 40°C to clean the front panel. This can cause the panel to deform or become discolored. • Clean the unit using a damp, lint-free cloth and neutral detergent. Dry the unit with a dry, lint-free cloth. 8 | Kaden Owner’s Manual... -
Page 9: Troubleshooting
COOL mode. The noise is also heard when the drain pump is in operation. The indoor unit makes noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts. Kaden Owner’s Manual | 9... - Page 10 The unit emits a bad odor The filters have become moldy and should be cleaned. During operation, the fan speed is controlled to optimize The fan of the outdoor unit does not operate product operation. 10 | Kaden Owner’s Manual...
- Page 11 The outdoor temperature is lower than 7°C. with refrigerant. Poor heating Make sure that all doors and windows are performance Cold air is entering through doors and windows. closed during use. Low refrigerant due to leak. Call service agent. Kaden Owner’s Manual | 11...
- Page 12 Flash Compressor drive error Flash Mode conflict Flash Compressor low-pressure protection Flash Outdoor IGBT sensor error* Flash Indoor unit communication malfunction * This symbol means the display code is not applicalbe to all the units. 12 | Kaden Owner’s Manual...
-
Page 13: Disposal Guidelines
When disposing of this appliance, you have the following ground water and enter the food chain. options: • Dispose of the appliance at designated municipal electronic waste collection facility. • Sell the appliance to certified scrap metal dealers. Kaden Owner’s Manual | 13... - Page 14 Notes 14 | Kaden Owner’s Manual...
- Page 15 Notes Kaden Owner’s Manual | 15...
- Page 16 16 | Kaden Owner’s Manual...
