Installation

Hint:

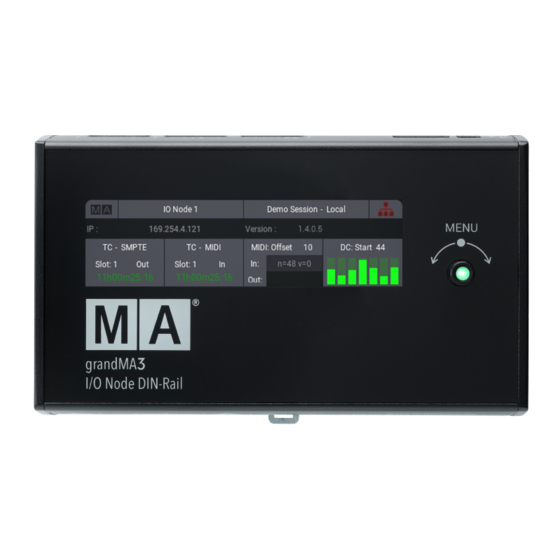

The grandMA3 I/O Node can be connected with the power cable. Only the grandMA3 I/O Nodes DIN-Rail need to be

installed on the rail following DIN EN 60715 and the instructions below.

Important:

Install the grandMA3 I/O Node DIN-Rail horizontally so that the input terminal is located at the bottom.

Warning:

In order for the device to dissipate heat, comply with a minimum distance of 30 mm (approx. 2 inches) above and

beneath the grandMA3 I/O Node DIN-Rail.

Page 1 Installation Hint: The grandMA3 I/O Node can be connected with the power cable. Only the grandMA3 I/O Nodes DIN-Rail need to be installed on the rail following DIN EN 60715 and the instructions below. Important: Install the grandMA3 I/O Node DIN-Rail horizontally so that the input terminal is located at the bottom.
Page 2 1. Install the grandMA3 I/O Node DIN-Rail onto the rail. Place the grandMA3 I/O Node DIN-Rail on the rail.
Page 3 Snap into place 2. Build the I/O Node DIN-Rail into the switchboard.
Page 4 Connections Connect with electrical grid -or-...
Page 5 Connect via PoE Power Connector MC 1.5/ 3-ST1-5.08 Rigid cables 0.75 mm² - 1.5 mm² (18-16 AWG) 0.75 mm² - 1.5 mm² (18-16 AWG) Flexible cables Wire end sleeves are permitted. Wire stripping length 7 mm Tightening torque 0.22 Nm - 0.25 Nm...
Page 6 MIDI & LTC Connector FK-MC 0.5/ 3-ST-2.5 Rigid cables 0.14 mm² - 0.5 mm² (26-20 AWG) 0.14 mm² - 0.5 mm² (26-20 AWG) Flexible cables Wire end sleeves are permitted. Wire stripping length 8 mm DC Remote Connector FK-MC 0.5/ 7-ST-2.5 Rigid cables 0.14 mm²...
