PREPARE THE OPENING
The Advantium 120 can be installed in
combination with other GE appliances. Always
follow each product's Installation Instructions to
complete
the installation.

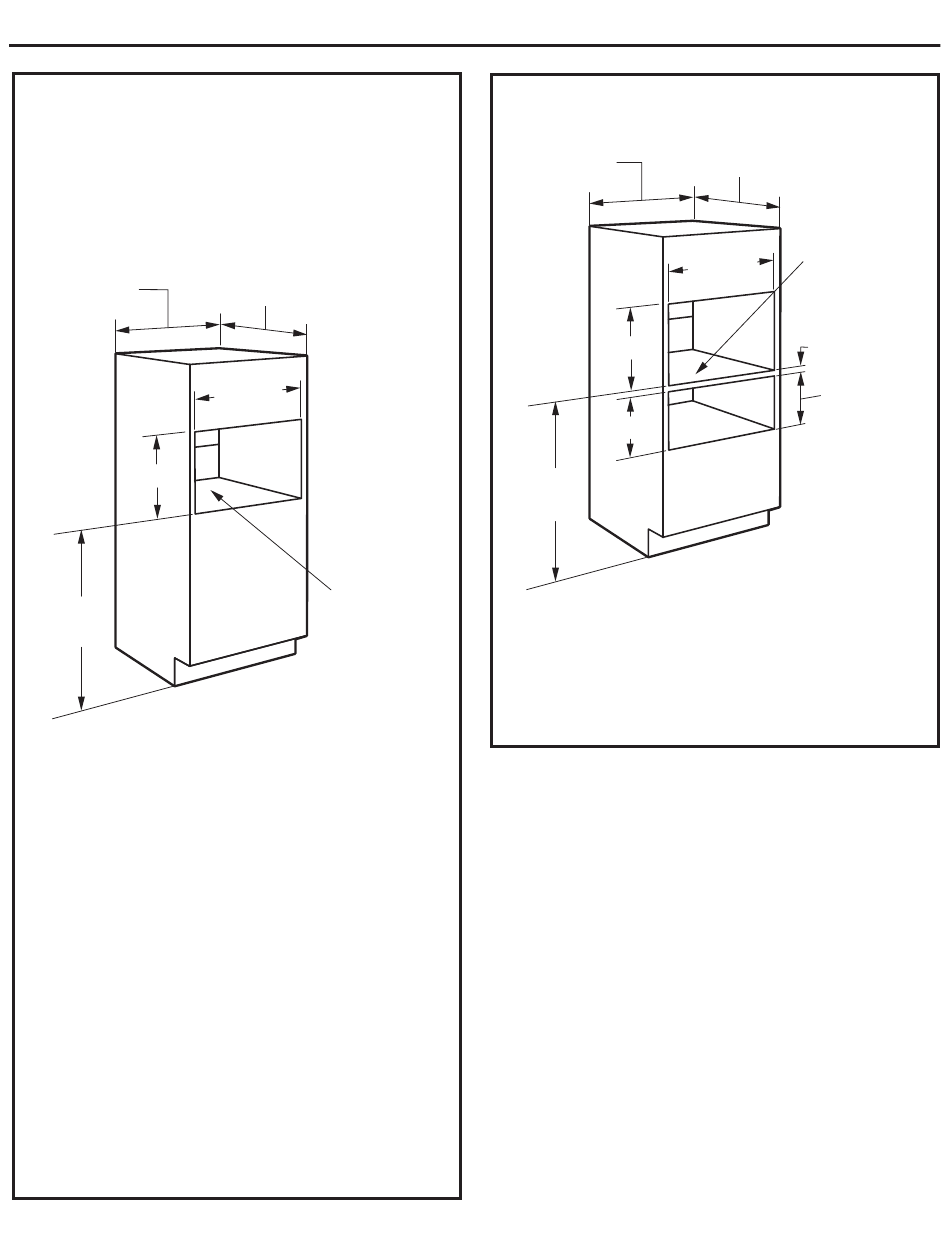

Single Advantium 120 Installation:
27"
17-1/2"
36-3/4"
Min.
Order a 27"-wide single oven cabinet or cut the
opening in a wall to the dimensions shown.
• Always maintain 36-3/4" minimum height from
the floor to the cutout in any single or combined
installation.
• Allow 1-1/4" case trim overlap at the top and
7/8" overlap on the bottom and each side of the
opening.
• Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a warming
drawer, allow at least 2" between the two
openings. This separation will provide clearance
for bottom overlap of the Advantium 120 and the
other appliance overlaps.
Construct a solid oven floor of 3/8" min. thick
plywood supported by 2 x 4 runners on all sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Installation Preparation
23-1/2"
25-1/8"
Construct
Base
Min. 3/8"
Plywood
Supported
by 2 x 4
or 1 x 2
Runners all
Four Sides
PREPARE THE OPENING
Installation over a GE Warming Drawer:
27"
17-1/2"
9-1/4"
36-3/4"
Min.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location do
not obstruct the required interior depth and height.
See Warming Drawer installation instructions for
details.
6
(CONT.)
23-1/2" Construct
Solid Bottom
Min. 3/8"
Plywood
Supported
by 2 x 4 or
25-1/8"
1 x 2
Runners
all Four Sides
2" Min.
Install 2 x 4 or
2 x 2 Runners
or Solid
Bottom. Must
Support 100
lbs.
