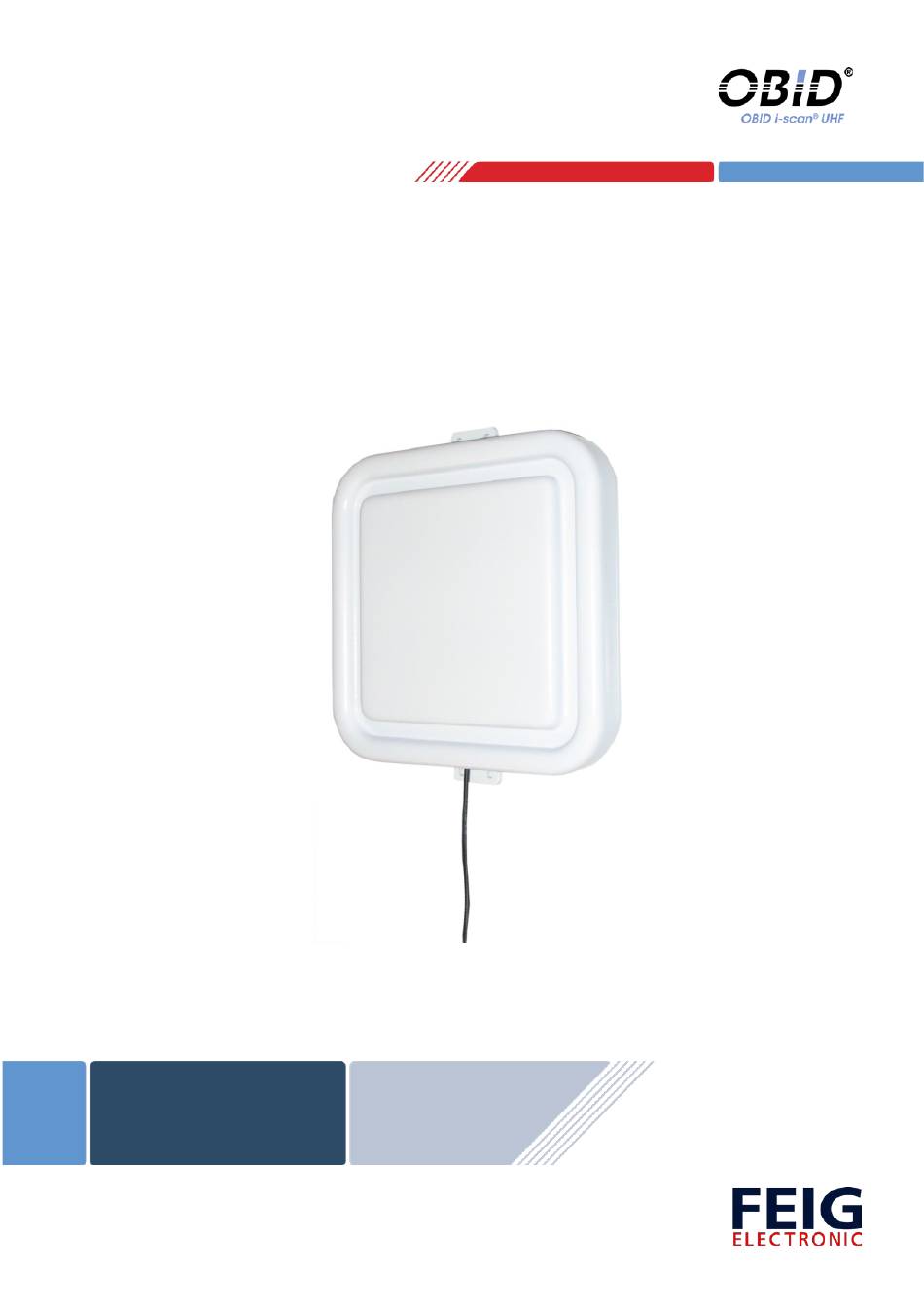

- Page 1 INSTALLATION ID ISC.ANT.U170/170-EU UHF Midrange Antenna final – public (B) 2015-04-21 – M21013-3e-ID-B...
- Page 2 FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed with components and testing methods for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human.
- Page 3 • The following figure formats are used: 0...9: for decimal figures 0x00...0xFF: for hexadecimal figures, b0...1 for binary figures. • The hexadecimal value in brackets "[ ]" marks a control byte (command). FEIG ELECTRONIC GmbH Page 3 of 13 M21013-3e-ID-B...
-
Page 4: Table Of Contents
1. Safety Instructions / Warning - Read before start-up ! 2. Performance Features of the antenna ID ISC.ANT.U170/170 3. Installation 3.1. Installation with Mounting Set .................... 8 3.2. Antenna Cable ........................9 4. VSWR 5. Antenna pattern 6. Technical Data FEIG ELECTRONIC GmbH Page 4 of 13 M21013-3e-ID-B... -
Page 5: Safety Instructions / Warning - Read Before Start-Up
Although this device doesn't exceed the valid limits for electromagnetic fields you should keep a minimum distance of 25 cm between the device and your cardiac pacemaker and not stay in an immediate proximity of the device respective the antenna for some time. FEIG ELECTRONIC GmbH Page 5 of 13 M21013-3e-ID-B... -

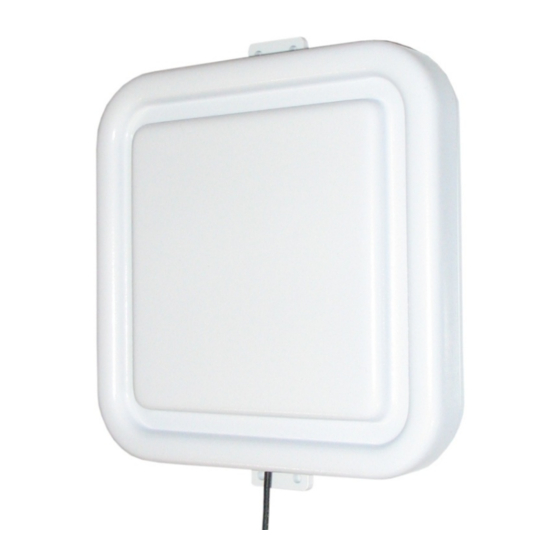

Page 6: Performance Features Of The Antenna Id Isc.ant.u170/170
The antenna is optimized for the in Europe to RFID applications dedicated UHF frequency band. In this frequency band the antenna offers best possible reading performance. Table 1: Ordering Information - Antenna Description Type Frequency Order number Antenna ID ISC.ANT.U170/170 865 MHz – 868 MHz 3200.000.00 FEIG ELECTRONIC GmbH Page 6 of 13 M21013-3e-ID-B... -
Page 7: Installation
An optional mounting set is available to simplify the attachment of the antenna to portal structures or poles and can be ordered from FEIG ELECTRONIC GmbH. The preferred mounting direction of the antenna is vertical, with the connection cable towards ground. -
Page 8: Installation With Mounting Set
After mounting, the antenna can be changed and positioned at three orientations. Figure 2: Mounting Set with antenna Table 2: Ordering Information - Mounting Set Description Order number ID ISC.ANT.U170/170-MS Mounting Set Antenna UHF 3310.000.00.00 FEIG ELECTRONIC GmbH Page 8 of 13 M21013-3e-ID-B... -
Page 9: Antenna Cable
3.2. Antenna Cable There are two antenna cable assemblies available for the extension of the antenna cable. These cable assembly can be ordered by FEIG ELECTRONIC GmbH in a two meter (2 m) or six meter (6 m) version. Table 3: Ordering Information - Antenna Cable... -
Page 10: Vswr
® OBID i-scan Installation ID ISC.ANT.U170/170-EU 4. VSWR Figure 3: Typical VSWR of the antenna ID ISC.ANT.U170/170-EU FEIG ELECTRONIC GmbH Page 10 of 13 M21013-3e-ID-B... -
Page 11: Antenna Pattern
® OBID i-scan Installation ID ISC.ANT.U170/170-EU 5. Antenna pattern Figure 4: Typical antenna pattern of the Antenna ID ISC.ANT.U170/170-EU horizontal Figure 5: Typical antenna pattern of the Antenna ID ISC.ANT.U170/170-EU vertical FEIG ELECTRONIC GmbH Page 11 of 13 M21013-3e-ID-B... -
Page 12: Technical Data
Circular VSWR < 1,8:1 SMA socket (50 Ω) Antenna Connector AMBIENT CONDITIONS Temperature Range • Operation -25 °C to +55 °C • Storage -25 °C to +80 °C * Tolerances ± 0,5mm FEIG ELECTRONIC GmbH Page 12 of 13 M21013-3e-ID-B... - Page 13 ID ISC.ANT.U170/170-EU MECHANIACL DATA MOUNTING SET Material stainless steel, steel zinc-plate Clamping zone for circular profiles 30 mm to 60 mm Weight approx. 480 g Alignment of the antenna Adjustable at three orientations FEIG ELECTRONIC GmbH Page 13 of 13 M21013-3e-ID-B...
