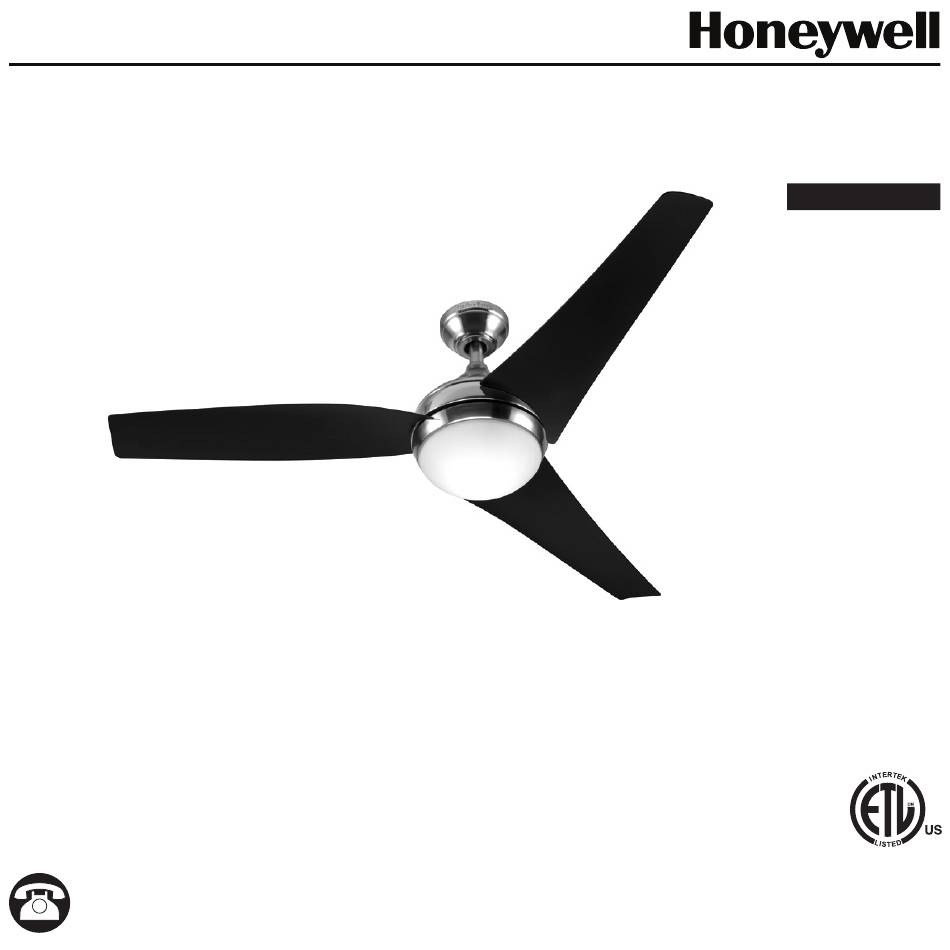

- Page 1 RIO 54” CEILING FAN MODEL #50195 Español p. 19 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST.
-
Page 2: Table Of Contents
WELCOME TABLE OF CONTENTS PREPARATION Before beginning the assembly of this product, ensure Care and Maintenance ......2 that all parts are present. -
Page 3: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Downrod 2. Canopy 3. Mounting Bracket 4. Canopy Cover 5. Yoke Cover 6. Motor Housing 7. Light Kit 8. Glass Shade 9. Bulb (2) 10. -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199. -
Page 5: Mounting Options
MOUNTING OPTIONS Fig. 1 DANGER Turn off the circuit breakers and the wall switch to the fan supply line leads. Failure to disconnect the power supply prior to installation may result in serious injury or death. 1. Your fan has 3 mounting options: •... -
Page 6: Mounting Bracket Installation
MOUNTING BRACKET INSTALLATION Loosen all four mounting bracket screws. Remove Fig. 4 the two mounting bracket screws and washers from the round holes of canopy. Set aside for later use. Mounting Mounting Detach mounting bracket from canopy (Fig. 4). Bracket Bracket Screws Mounting Bracket... -
Page 7: Standard Or Angle Mounting Instructions
STANDARD OR ANGLE MOUNTING INSTRUCTIONS 6. Partially loosen the two set screws in the yoke at Fig. 6 the top of the motor housing (Fig. 6). Set Screw 7. Remove the downrod pin and downrod clip from Fig. 7 the downrod (Fig. 7). Downrod Clip Downrod Pin... - Page 8 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 9. Slide the downrod into the yoke of the motor Fig. 9 Downrod housing, align the holes, and reinstall the downrod pin and downrod clip. Then retighten the set screws (Fig. 9). Downrod Downrod Clip Downrod Pin Set Screw Downrod Clip...
- Page 9 STANDARD OR ANGLE MOUNTING INSTRUCTIONS 12. Install the downrod ball into the mounting bracket Fig. 12 opening. Align the slot in the ball with the tab in the mounting bracket. The downrod should not rotate if installed correctly (Fig. 12). Slot Mounting Bracket...
-
Page 10: Closemount Instructions
CLOSEMOUNT INSTRUCTIONS 14. Remove the canopy cover from the bottom of the Fig. 14 canopy (Fig. 14). Helpful Hint: The downrod, hanging ball, and canopy cover are not used in this type of installation. Canopy Cover Canopy Fig. 15 15. Align the canopy with the closemount screw holes Closemount Screws in the top of the motor housing. -
Page 11: Wiring
WIRING Fig. 17 CAUTION Be sure outlet box is properly grounded or that a Black (hot/power) ground (green or bare) wire is present. White (neutral) WARNING Bare/Green (ground) If house wires are different colors than referred to in the following step, stop immediately. A professional electrician is recommended to determine wiring. -
Page 12: Canopy Installation
CANOPY INSTALLATION 18. Lift the canopy up so the partially installed mounting Fig. 18 Mounting bracket screws are situated in the L-slots on each Bracket side of the canopy. Rotate the canopy clockwise and install the two remaining mounting bracket screws and washers (Fig. -
Page 13: Light Kit Installation
LIGHT KIT INSTALLATION 20. Remove one of the three fitter plate screws located Fig. 20 on the underside of the motor assembly and loosen the other two screws. Then connect the single pin connectors from the switch housing to the single pin connectors from the switch housing cap -- blue to black and white to white. -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS 23. Use the fan reverse switch, located on the side Fig. 23 Reverse of the motor housing, to optimize your fan for Switch seasonal performance (Fig. 23). Using a ceiling fan will allow you to raise your thermostat in the summer and lower your thermostat in the winter without sacrificing comfort. - Page 15 OPERATING INSTRUCTIONS 26. Remove the battery cover from the back of the Fig. 26 Remote remote (Fig. 26). After removing the protective plastic, insert the battery. Replace the battery cover. D/CFL Switch: Located inside the battery D/CFL Switch compartment of the remote, this switch should be moved to either “D”...
-
Page 16: Replacement Parts List
REPLACEMENT PARTS LIST For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday. MODEL 50195 PIECE DESCRIPTION PART # Glass Shade 50195-A Blade 50195-B Loose parts bags containing (not shown): Mounting hardware, blade attachment hardware,... -
Page 17: Troubleshooting
TROUBLESHOOTING At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection. -
Page 18: Limited Lifetime Warranty
1-877-361-3883 Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy of the receipt as proof of purchase. The Honeywell Trademark is used under license from Honeywell International Hong Kong China Electric Appliance Manufacture Co., Ltd.
