D-Link DCS-6620G Install Manual

D-Link DCS-6620G Install Manual

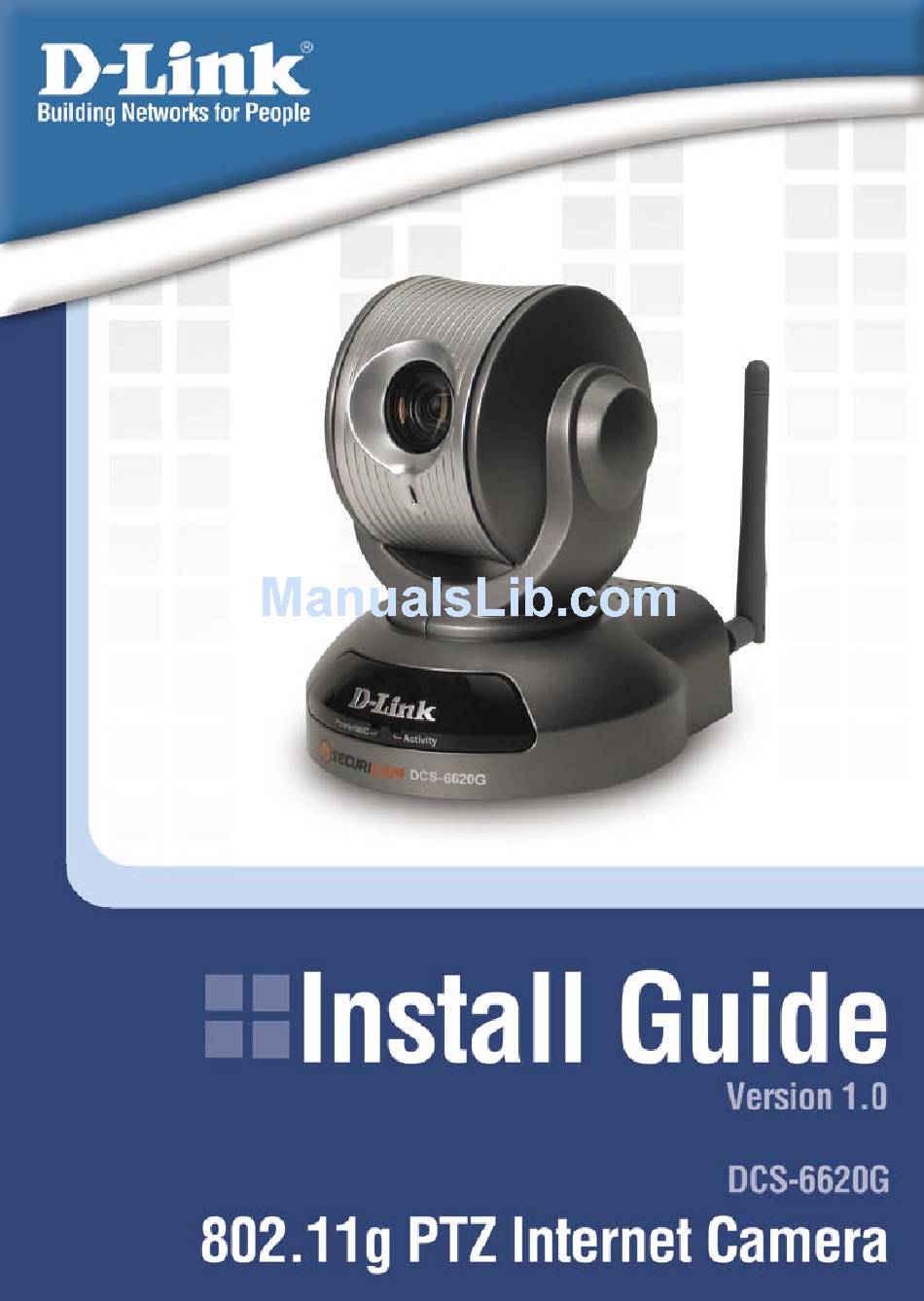

802.11g ptz internet camera
Hide thumbs Also See for DCS-6620G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for D-Link DCS-6620G

Summary of Contents for D-Link DCS-6620G

  • Page 2 System Requirements DCS-6620G Install Guide D-Link Systems, Inc.
  • Page 3 DCS-6620G Install Guide Hardware Overview Motorized Zoom Lens Built-In Microphone Link LED Power LED D-Link Systems, Inc.

  • Page 4: Hardware Overview

    Rear Connect the power adapter jack to the 802.11g PTZ Internet Camera before plugging in to the power socket. This will reduce the risk of accidental electric shock. DCS-6620G Install Guide Antennas External I/O Port External Mic. Ethernet 10/100 RJ45 socket...

  • Page 5: Hardware Installation

    Connect the Ethernet Cable Connect one end of the Ethernet cable to the network cable connector located on the back panel of the DCS-6620G, and attach the other end to a router, switch, or gateway on the network. If you connect this camera directly to a PC, you will need a cross-over Ethernet cable.
  • Page 6 DCS-6620G Install Guide Attach the A/V cable to the A/V out connector if you wish to connect the DCS-6620G to your TV set. Attach the yellow RCA connector to the “video” connector on your TV. Attach the white RCA cable to the “audio”...

  • Page 7: Installation Wizard

    DCS-6620G Install Guide Insert the DCS-6620G CD into the CD-ROM drive of your PC. Click on Install Software Click on Install Wizard Click Next D-Link Systems, Inc. Installation Wizard...
  • Page 8 Installation Wizard (continued) DCS-6620G Install Guide Click Next Click Next Click Finish D-Link Systems, Inc.

  • Page 9: Camera Configuration

    The software will search for cameras. The Installation Wizard will now show a MAC address of the DCS-6620G and an IP Address (which may or may not be correct depending on what you have your DCS-6620G connected to).
  • Page 10 Let go when the red LED starts to flash the second time. Once the camera appears, select the camera by placing a Checkmark in the box. DCS-6620G Install Guide Click Search to refresh the list of cameras if needed. D-Link Systems, Inc.
  • Page 11 DCS-6620G Install Guide Click the Setup button. Enter an administrative password in the Admin password and Confirm password fields. Click the Next button. For details on the Date/Time Settings, please refer to the User Manual on the CD-ROM. D-Link Systems, Inc.
  • Page 12 Enter the SSID and select the Wireless mode, Channel, Tx Rate, and Preamble. Check the Data Encryption box to enable data encryption and configure the settings. Click the Next button. Click the Apply button. DCS-6620G Install Guide D-Link Systems, Inc.
  • Page 13 DCS-6620G Install Guide After the settings have been saved, the Done button will appear. Click the Done button. Click the button labeled Link to Selected Device(s). D-Link Systems, Inc. Camera Configuration (continued)
  • Page 14 Leave the box titled This camera can be found by installer whenever it starts up, unchecked to avoid running this install application each time you boot up the DCS-6620G. Check this box if you need to change the IP Address next time the DCS-6620G boots up.
  • Page 15 Enter the administrative password. Click Save then “X” at the top right-hand corner of your browser to close the page. The installation and configuration of the DCS-6620G 802.11g PTZ Internet Camera is now complete. D-Link Systems, Inc. Camera Configuration (continued)
