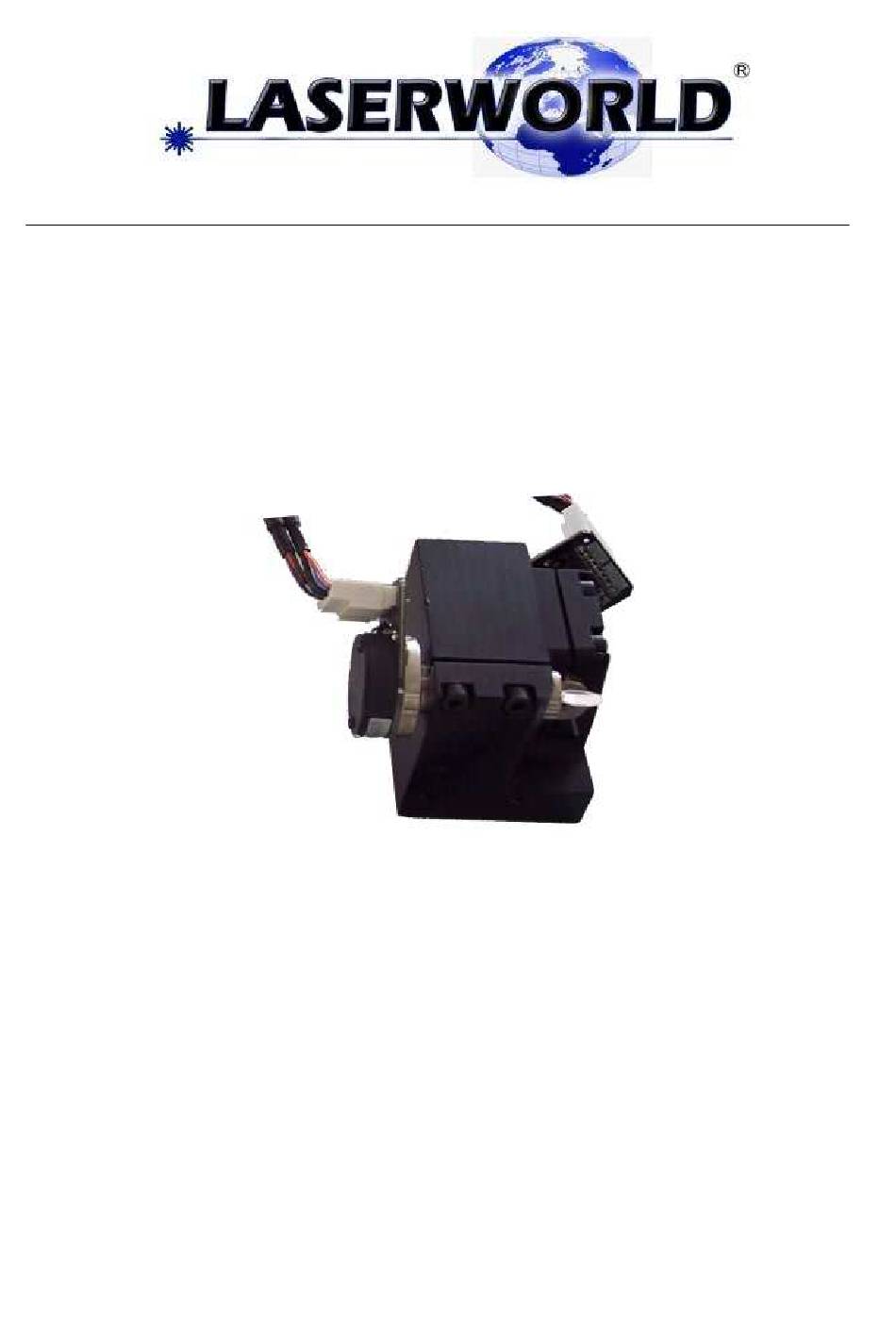

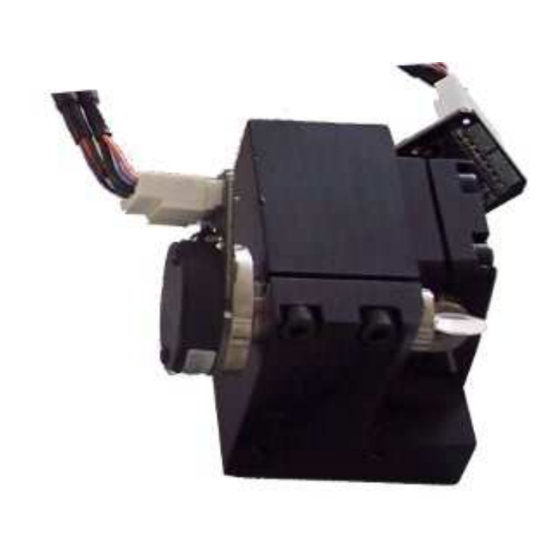

- Page 1 Scanner Set USER MANUAL Please read this manual carefully before you install the scanners!
-
Page 2: Table Of Contents
The cables from driver to scanner have separately shielded lines for the lines driving the galvo coils and for the position detector signals. Power supply The drivers need +/-24V at 1.2 A (each side). We recommend using the Laserworld power supply Date: 07/2010... -
Page 3: Speed
USER MANUAL: Laserworld Scanner Set LW-80k page 3 of 6 Speed The scanning speeds were measured with Showeditor software, and a laboratory power supply at +/24V. Galvos were fixed in the standard mount on a metal base plate, without forced cooling. Mirrors were 6x11x0.7mm... - Page 4 USER MANUAL: Laserworld Scanner Set LW-80k page 4 of 6 Connecting to ILDA output: connect the signals marked (ILDA) to the following pins of a 25 pin male Sub D connector: Signal+ of X driver to pin 1, Y driver to pin 2...
-
Page 5: Adjustments
USER MANUAL: Laserworld Scanner Set LW-80k page 5 of 6 Adjustments The driver/scanner pairs are adjusted at the factory and marked X and Y respectively, do not exchange. Adjusting using the ILDA test pattern: Display the ILDA test pattern at the scanspeed and image size for which you want to adjust your scanning system. - Page 6 USER MANUAL: Laserworld Scanner Set LW-80k page 6 of 6 Scanspeed and image size: If the circle is bigger than the square you can increase scanspeed, or picture size. Your system is faster than necessary for that size. If the circle is inside the square you should decrease scanspeed or image size. Your system is not fast enough for that size.
