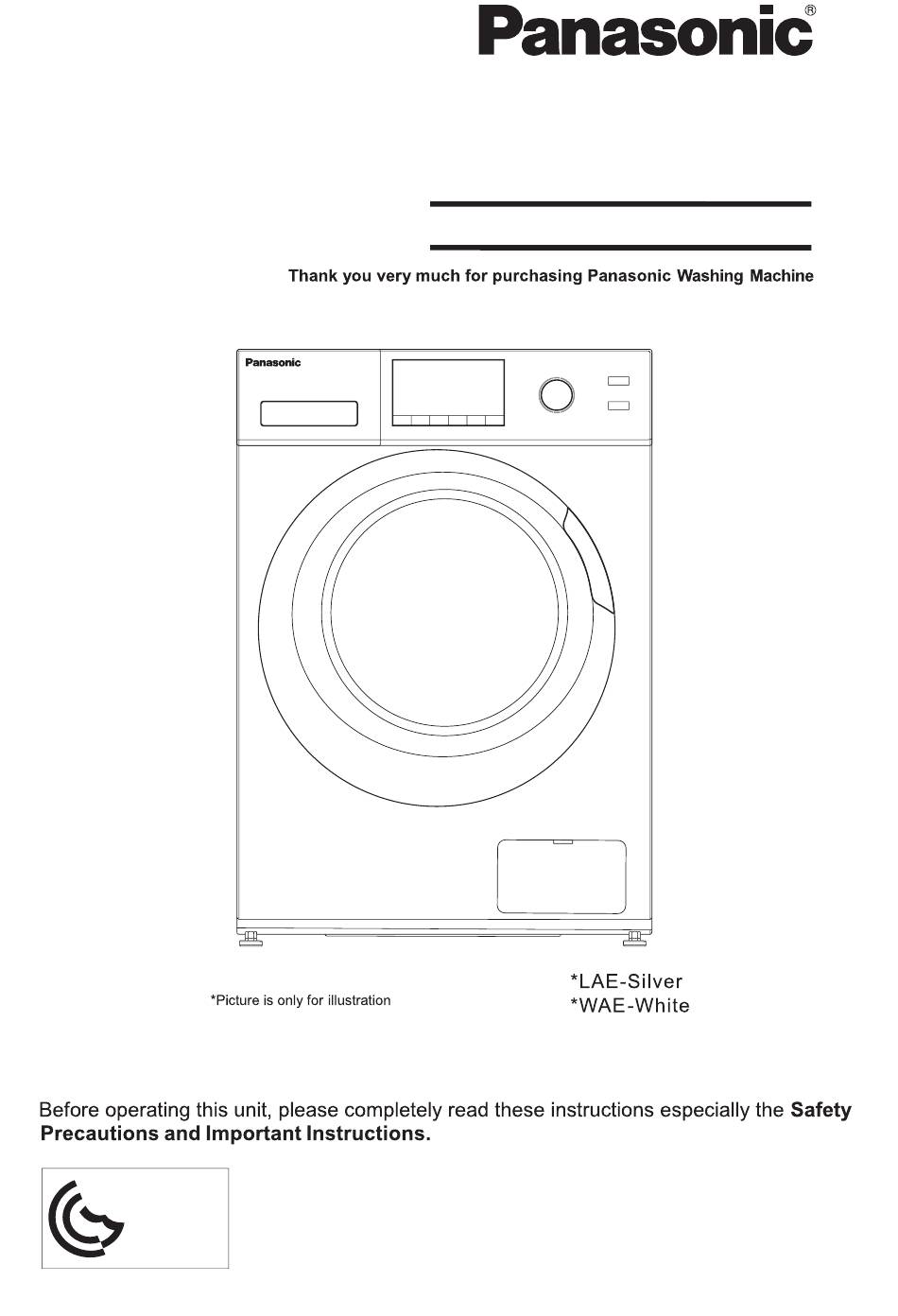

- Page 1 Operating Instructions Washer and Dryer Model no: NA-S086M3*...
-
Page 2: Table Of Contents
CONTENTS Safety Instructions Safety Instructions ..........Installation Product Description ..........Installation ............Operations Quick Start ............. Before Wash............. Detergent Dispenser ..........Control Panel ............Option..............Other Functions ............Programs..............Wash Program Table ..........Maintenance Clean And Care ............Troubleshooting ............ Technical Specifications ......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions • This appliance is not intended for use by persons(includingchildren) with reduced physical,sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •... - Page 4 SAFETY INSTRUCTIONS Safety Instructions For your safety,the information on this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. Explanation of symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.
- Page 5 SAFETY INSTRUCTIONS • The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. • Before any maintenance , must unplug the appliance first. • Always unplug the machine and turn off the water supply after use.
- Page 6 SAFETY INSTRUCTIONS • Do not use any socket with rated current less than that of appliance.Never pull out power plug with wet hand. Risk to children! • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction...
- Page 7 SAFETY INSTRUCTIONS • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS 6.A precaution indicates that the appliance shall not be installed at a humid place. • Please do not close the door with excessive forces. If it is found difficult to close the door, please check if the clothes are put in or distributed well. •...
-
Page 9: Product Description
INSTALLATION Product Description Top cover Water supply hose Control panel power cord Detergent dispenser Drum Door Service filter Drain hose Note! • The product line chart is for reference only, please refer to real product as standard. Accessories Transport Screws Rat resistance panel Owner’s manual Supply hose... -
Page 10: Installation
INSTALLATION Installation Installation area Warning! • Stability is important to prevent the product from vibration! • Make sure that the product should not stand on the power cord. W> 20 mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... - Page 11 INSTALLATION Levelling the washing machine Warning! • The lock nuts on all four feet must be screwed tightly against the housing. Check if the legs are closely attached to the cabinet. If not, please turn them to their original positions and tighten the nuts. 2.Loosen the lock nut turn the feet until it closely contacts with the floor.
- Page 12 INSTALLATION Connect the other end of inlet pipe to the inlet valve at the backside of product and fasten the pipe tightly clockwise. water supply hose water Inlet valve Drain Hose Warning! • Do not twist,extend the drain hose. • Position drain hose properly ,otherwise damage might result in water leakage. There are two ways to place the end of drain hose: 1.Put it into the water trough.
-
Page 13: Operations
OPERATIONS Quick Start Caution! • Before washing, please make sure it’s installed properly. • Before washing at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. 1. Before Wash Main wash Softener... - Page 14 Before closing the door, make sure that all laundries have been put into the inner drum as shown in the figure to prevent the laundries from being caught by the drum, which may damage the laundries or the gasket.
-
Page 15: Detergent Dispenser
Detergent Dispenser Pre wash detergent Main wash detergent Softener Caution! • Detergent only need to be added into "Case I “after select Pre Wash function. -
Page 16: Control Panel
My Program Gentle Hand Wash Active Speed Preset Preset... - Page 17 OPERATIONS Option Pre Wash The Prewash function can get an extra wash before main wash,it is suitable for washing the extra dirt which rises to the surface You need to put detergent into the Case (I) when select it. Extra Rinse The laundry will undergo extra rinse once after you select it.
- Page 18 OPERATIONS Preset Set the Preset function: 1. Select a Program 2.Press the Preset button to choose the time(the delaying time is 0-24 H.) 3.Press [Start/Pause] to commence the Preset operation Preset On/Off Setting time Start Choose the Program Cancel the Preset function: Press the [Preset] button until the display be 0H.It should be pressed before starting the Program.
-
Page 21: Programs
OPERATIONS Programs Programs are available according to the laundry type. Programs Cotton For washing daily cotton articles like bed sheets, quilt covers, pillow covers, gowns etc. and other cotton and linen fabric. Cotton ECO To increase the washing effects, washing time is increased. Wash synthetic articles, for example: shirts, coats, blending. -
Page 23: Maintenance
MAINTENANCE Clean And Care Warning! • Before the maintenance, please unplug the machine and close the tap. Cleaning The Cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. - Page 24 MAINTENANCE Cleaning The Inlet Filter Note! • Inlet filter must be cleaned if there is less water. Washing the filter in the tap 1.Close the tap. 2.Remove the water supply hose from the tap. 3.Clean the filter. 4.Reconnect the water supply hose Washing the filter in washing machine: Screw off the inlet pipe from the backside of the machine.
- Page 25 MAINTENANCE Cleaning The Drain Pump Filter Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing.
-
Page 26: Troubleshooting
MAINTENANCE Troubleshooting If the machine does not work or it stops during operation, then check as per below instructions and try to resolve without dismantling the machine. If the problem is not resolved contact authorized service centre Description Reason Solution Washing machine Restart after the door is closed Door is not closed properly... -
Page 27: Technical Specifications
MAINTENANCE Technical Specifications Max.Current 10 A Standard Water Pressure 0.05 MPa~1 MPa... - Page 28 M0920-00...
