Zamel RZB-04 Quick Manual

RADIO TRANSMITTERS DELETION
Press PROG push-button of ROP-02 device for a longer time.
red diode switches on (signal pulsates) and then it switches off.
button in ROP-02 - MEMORY IS DELETED.
TIME PROGRAMMING
Press PROG push-button of ROP-02 device for a longer time till LED red diode
switches on (constant signal). Next release PROG push-button. Wait (for about 5 sec-
onds) till LED red diode switches on (first signal pulsates, next the signal is constant).
Wait again (for about 5 seconds) till LED red diode switches on (first signal pulsates,
next the signal is constant).
for CHANNEL 1: Press PROG push-button of ROP-02 device and then release it.
LED red diode switches off and then switches on (signal pulsates). Every LED diode
pulse equals 1 second. After the adjusted time is finished (the number of LED red
diode flashes) press PROG push-button and then release it - TIME IS ADDED.
for CHANNEL 2: Wait again (for about 5 seconds) till LED red diode switches
on (first signal pulsates, next the signal is constant).
ROP-02 device and then release it. LED red diode switches off and then switches on
(signal pulsates). Every LED diode pulse equals 1 second.
is finished (the number of LED red diode flashes) press PROG push-button and then
release it - TIME IS ADDED.
Maximum time is 18 hours for every channel.
COOPERATION AND OPERATING RANGE
Symbol ROP-01 ROP-02 ROB-01 SRP-02 SRP-03 RWG-01 RWL-01 ROM-01 ROM-10 RDP-01 RTN-01
RNK-02 180 m 200 m 200 m 200 m
RNK-04 180 m 200 m 200 m 200 m
P-256/8 230 m 250 m 250 m 250 m
P-257/4 (2) 180 m 200 m 200 m 200 m
RNM-10 230 m 250 m 250 m 250 m
RNP-01 160 m 180 m 180 m 180 m
RNP-02 160 m 180 m 180 m 180 m
RNL-01 160 m 180 m 180 m lack*
RTN-01 200 m 200 m 200 m 200 m
RCR-01 160 m 180 m 180 m lack*
RTI-01 160 m 180 m 180 m 180 m
RXM-01 230 m 250 m 250 m 250 m
* 1-channel transmitters do not cooperate with roller blind controllers.
CAUTION: The given range concerns open area - an ideal condition without any
natural or artificial obstacles. If there are some obstacles between a transmitter
and a receiver, it is advisable to decrease the range according to: wood and plas-
ter: from 5 to 20 %, bricks: from 10 to 40 %, reinforced concrete: from 40 to 80 %,
metal: from 90 to 100%, glass: from 10 to 20 %, Over- and underground medium
and high electrical power lines, radio and television transmitters, GSM transmit-
ters set close to a device system have also a negative influence on the range.
After 5 seconds LED
Release the push-
Press PROG push-button of
After the adjusted time
200 m 250 m 180 m 250 m 250 m 180 m
200 m 250 m 180 m 250 m 250 m 180 m
250 m 300 m 200 m 300 m 300 m 230 m
200 m 250 m 180 m 250 m 250 m 180 m
250 m 300 m 200 m 300 m 300 m 230 m
180 m 200 m 160 m 200 m 200 m 160 m
180 m 200 m 160 m 200 m 200 m 160 m
lack* 200 m 160 m 200 m 200 m 160 m
200 m 250 m 200 m 250 m 250 m 200 m
lack* 200 m 160 m 200 m 200 m 160 m
180 m 200 m 160 m 200 m 200 m 160 m
250 m 300 m 200 m 300 m 300 m 230 m

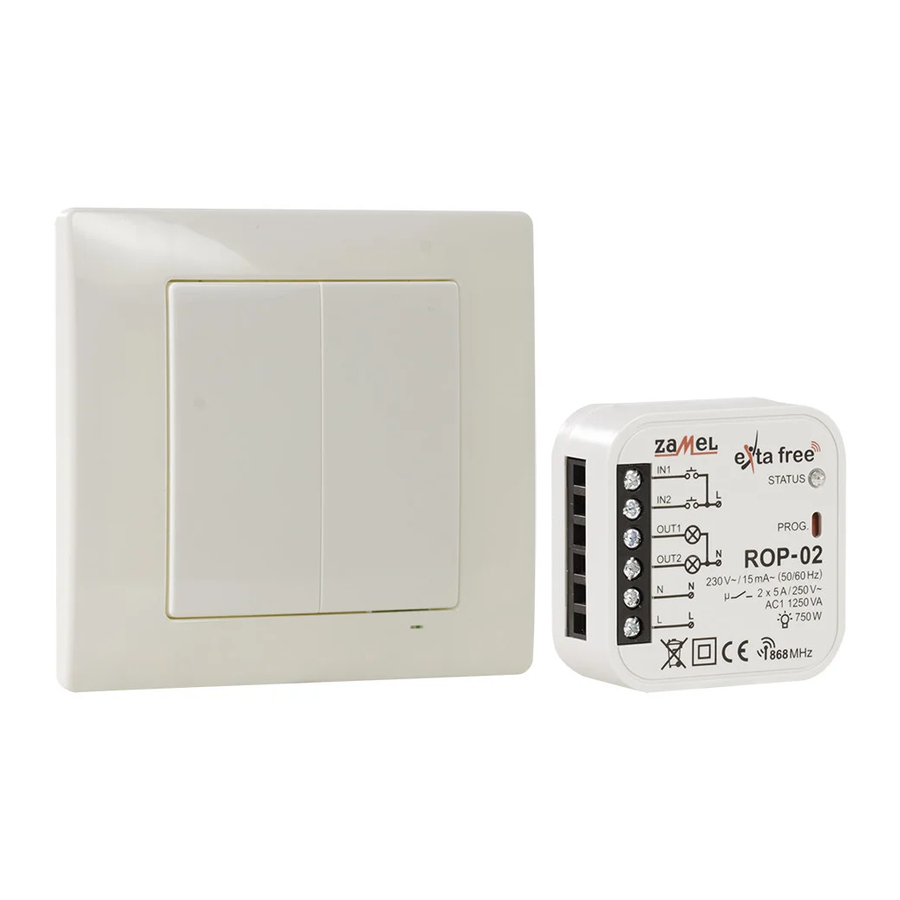

2-CHANNEL WIRELESS CONTROL SET
RZB-04
TECHNICAL DATA
Input (supply) terminals:
Input rated voltage:
Battery life:
Input voltage tolerance:
Nominal frequency:
Nominal power consumption:
Number of operation modes:
Number of channels:
Transmission:
Transmission way:
Coding:
Maximum number of transmitters:
Time adjustment:
Optical signalling:
Input terminals:
Transmitter's input (supply) terminals:
250 m
250 m Relay contacts parameters:
300 m
Number of terminal clamps:
250 m
Section of connecting cables:
300 m
Ambient temperature range:
200 m
Operating position:
200 m
Casing mounting:
200 m
Casing protection degree:
250 m
Protection level:
200 m
200 m Overvoltage category:
300 m
Pollution degree:
Surge voltage:
Dimensions:
Reference standard:
RNK-04
-
3 V DC (battery CR2032)
3 ÷ 5 years
-
-
- 0,39 W „stand-by" mode/
0,69 W operation mode 1 channel/
1,09 W operation mode 2 channels
-
4
radio 868,32 MHz
unidirectional
addressing transmission
-
Range: up to 250 m in the open air
- 1 s ÷ 18 hours (every second)
LED red diode
-
- OUT1, OUT2 - voltage output
- 2NO 5A / 250V~ AC1 1250 VA
-
-
-10 ÷ +55 C
o
free
wall plugs, double-sided adhesive
installation cable box Ø60 mm
tape
IP20 (EN 60529)
III
-
-
-
90 x 80 x 11,5 mm
Weight: 0,038 kg
PN-ETSI EN 300 220-1,
PN-EN 60669, PN-EN 60950,
PN-ETSI EN 300 220-2
ROP-02
L, N
230 V AC
-
-15 ÷ +10 %
50 / 60 Hz
5
2
32
IN1, IN2
6
up to 2,5 mm
2
II
II
2
1 kV (EN 61000-4-5)
47,5 x 47,5 x 20 mm
0,039 kg
PN-EN 61000
