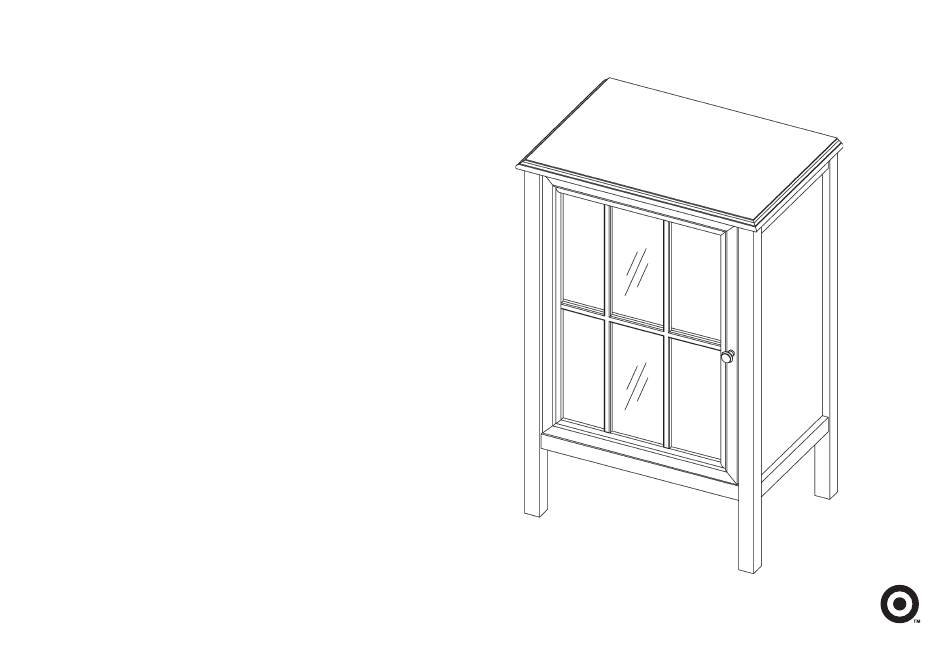

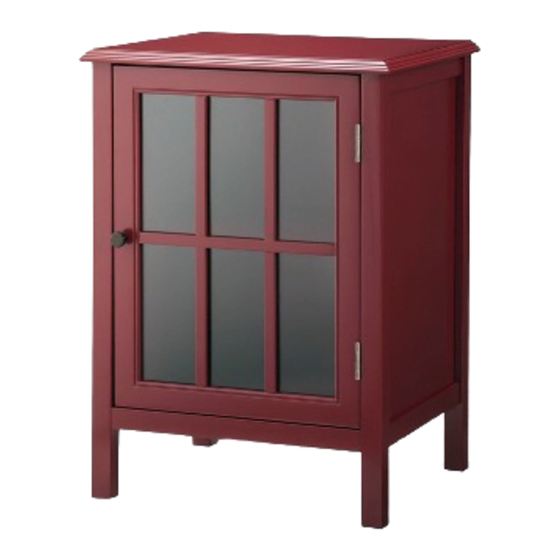

windham
one door accent cabinet
style # WNCBNT1DBL (teal)
dpci # 249-16-0731
tcin # 14484166
style # WNCBNT1DRD (red)
dpci # 249-16-0730
tcin # 14484167
style # WNCBNT1DBK (black)
dpci # 249-16-0734
tcin # 14484139
style # WNCBNT1DGY (gray)
dpci # 249-16-0735
tcin # 14483887
style # WNCBNT1DWH (shell)
dpci # 249-16-0733
tcin # 14484164
style # WNCBNT1DPK (blush)
dpci # 249-17-0828
tcin # 53546442
style # WNCBNT1DSG (green)
dpci # 249-17-0829
tcin # 53546447
>>
assembly instructions
style # WNCBNT1DWB (blue)
dpci # 249-17-0830
tcin # 53546448
style # WNCBNT1DOV (overcast)
dpci # 249-16-4304
tcin # 50077027
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target windham 249-16-0731
Summary of Contents for Target windham 249-16-0731
- Page 1 # 14484164 style # WNCBNT1DPK (blush) dpci # 249-17-0828 tcin # 53546442 style # WNCBNT1DSG (green) dpci # 249-17-0829 tcin # 53546447 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-14 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 8 (H2) x 4 (H3) x 4 (H4) x 15 (H5) x 4 (H6) x 4 wooden dowel cam bolt short pan-head screw short flat-head screw shelf support (H7) x 1 (H8) x 1 (H9) x 4 (H10) x 1 (H11) x 1 (H12) x 1...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame bottom panel shelf panel door back panel...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach right side frame to bottom panel (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
- Page 8 step 2: attach left side frame (H1) x 2 (H2) x 2 (H3) x 2 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
- Page 9 step 3: attach magnet then attach top panel If planning to install the door opening to the right, use right side pre-drilled holes for magnet. If planning to install the door, opening to the left, use left side pre-drilled holes for magnet. (H1) x 4 (H4) x 2 (H9) x 4...
- Page 10 step 4: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** hole for anti-tip strap pre-drilled holes Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square.
- Page 11 step 5: attach knob to door (H7) x 1 (H8) x 1 knob knob bolt 5.1. Align bolt with pre-drilled hole. 5.2. Do not over tighten bolt.
- Page 12 step 6: attach door If planning to install the door opening to the right, use right side pre-drilled holes for hinges. If planning to install the door, opening to the left, use left side pre-drilled holes for hinges. (H5) x 4 short flat-head screw 6.1.
- Page 13 step 7: install shelf panel (H6) x 4 shelf support 7.1. Insert shelf supports into desired hole. Different holes accomodate different shelf heights. 7.2. Angle shelves to fit between the rails and set on top of shelf supports.
- Page 14 step 8: install anti-tip kit (H13) (H16) (H12) Position against wall (H14) Mark position of strap hole on wall Drill 1/4’’ hole Tap in wall anchor Fasten anti-tip strap with flat-head screw provided (H11) (H16) (H14) x 1 (H13) x 1 (H16) x 2 (H12) x 1 (H11) x 1...
- Page 15 i n n e r s h e l f w e i g h t l i m i t i s 2 5 l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging”...
