Chapter 3 Programming
3.3.4

I/O address

I/O addresses and variable names can be linked in two different ways: Global variable or Local variable as below.
[Global variable]

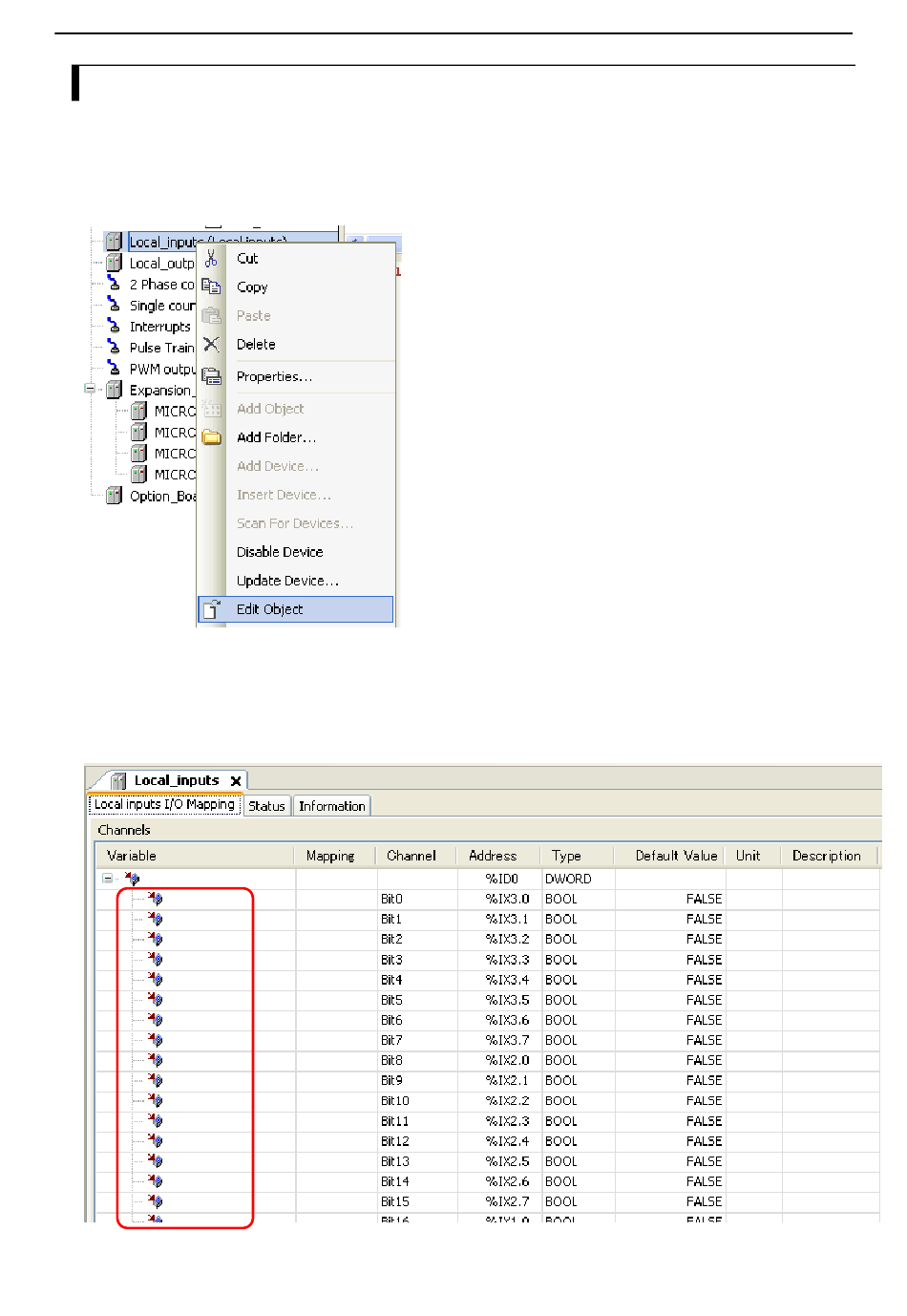

Double click on plugged I/O module or right click and choose "Edit Object".
I/O Mapping window appears as below. Due to Motorola type byte order of RX processor, IEC address is not
started with 0.0 as follows. Since the bit number shown at "Channel" corresponds to actual signal number, put
variable names according to the bit number.
