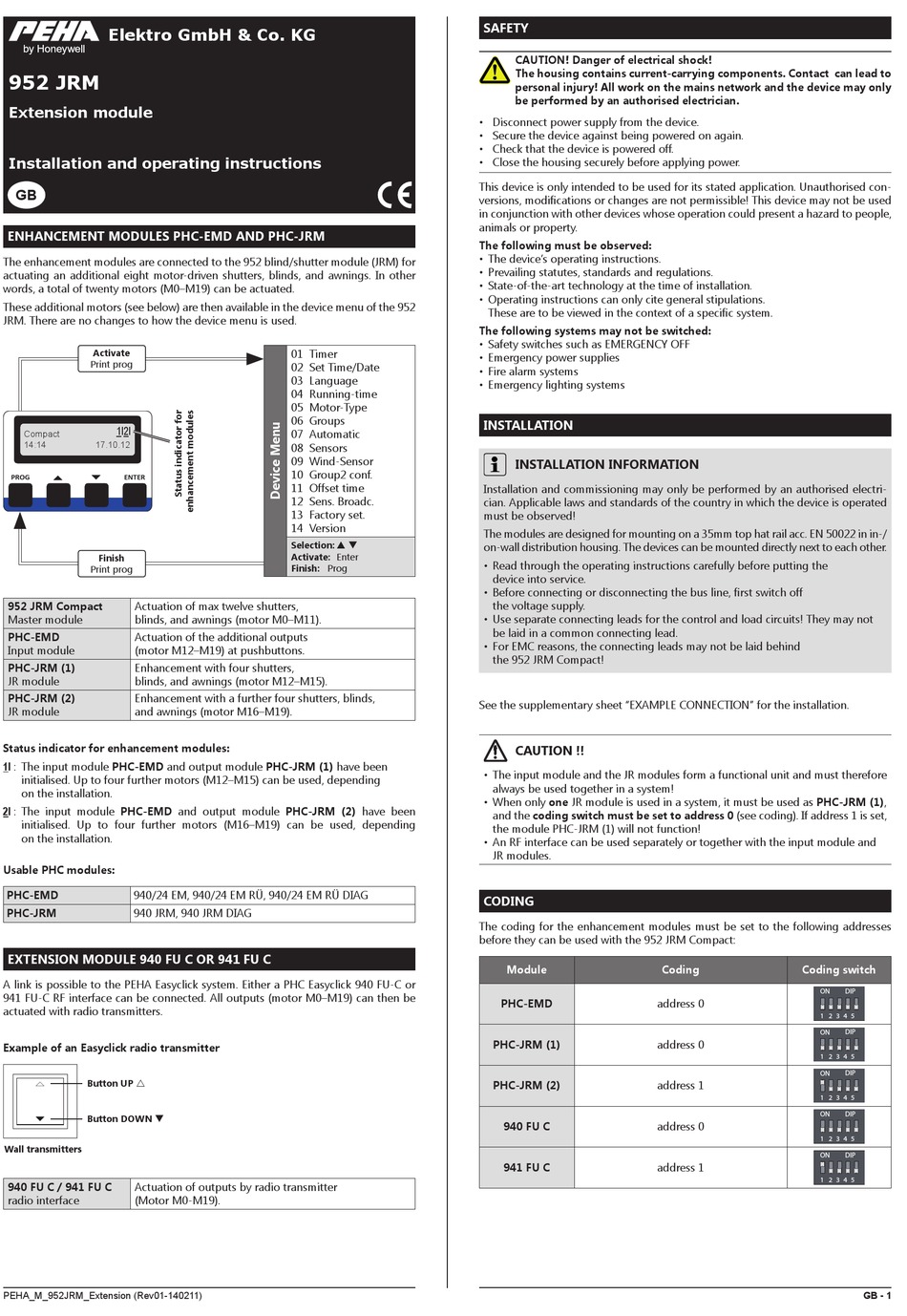

Elektro GmbH & Co. KG
952 JRM
Extension module
Installation and operating instructions
GB
EnHAnCEmEnt modulEs PHC-Emd And PHC-Jrm
The enhancement modules are connected to the 952 blind/shutter module (JRM) for
actuating an additional eight motor-driven shutters, blinds, and awnings. In other
words, a total of twenty motors (M0–M19) can be actuated.
These additional motors (see below) are then available in the device menu of the 952
JRM. There are no changes to how the device menu is used.
Activate
Print prog
1l2l
Compact
Rollladenmodul
14:14
Mo 13:57
17.10.12
PROG
ENTER
Finish
Print prog
952 Jrm Compact
Actuation of max twelve shutters,
Master module
blinds, and awnings (motor M0–M11).
PHC-Emd
Actuation of the additional outputs
Input module
(motor M12–M19) at pushbuttons.
PHC-Jrm (1)
Enhancement with four shutters,
JR module
blinds, and awnings (motor M12–M15).
PHC-Jrm (2)
Enhancement with a further four shutters, blinds,
JR module
and awnings (motor M16–M19).
status indicator for enhancement modules:
1l : The input module PHC-Emd and output module PHC-Jrm (1) have been
initialised. Up to four further motors (M12–M15) can be used, depending
on the installation.
2l : The input module PHC-Emd and output module PHC-Jrm (2) have been
initialised. Up to four further motors (M16–M19) can be used, depending
on the installation.
usable PHC modules:
PHC-Emd
940/24 EM, 940/24 EM RÜ, 940/24 EM RÜ DIAG
PHC-Jrm
940 JRM, 940 JRM DIAG
ExtEnsion modulE 940 Fu C or 941 Fu C
A link is possible to the PEHA Easyclick system. Either a PHC Easyclick 940 FU-C or
941 FU-C RF interface can be connected. All outputs (motor M0–M19) can then be
actuated with radio transmitters.
Example of an Easyclick radio transmitter
Button uP
Button down
wall transmitters
940 Fu C / 941 Fu C
Actuation of outputs by radio transmitter
radio interface
(Motor M0-M19).
PEHA_M_952JRM_Extension (Rev01-140211)
Vorsicht, Gefahr durch
giftige Stoffe
Vorsicht, Gefahr durch
Verwickeln
Wandhydrant
01 Timer
02 Set Time/Date
03 Language
04 Running-time
05 Motor-Type
06 Groups
07 Automatic
08 Sensors
09 Wind-Sensor
10 Group2 conf.
11 Offset time
12 Sens. Broadc.
13 Factory set.
14 Version
selection:
Activate: Enter
Finish: Prog
sAFEty
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
heiße Oberfläche
Laserstrahlung
Radioaktivität
CAution! danger of electrical shock!
the housing contains current-carrying components. Contact can lead to
personal injury! All work on the mains network and the device may only
be performed by an authorised electrician.
Vorsicht, Warnung vor
Vorsichtig verschieben!
Während der
einer Gefahrstelle
- veraltet -
Schweißarbeiten,
Arbeitsstelle beobachten
• Disconnect power supply from the device.
• Secure the device against being powered on again.
• check that the device is powered off.
• close the housing securely before applying power.
Wandhydrant (2.
Wandhydrant, mit Angabe
Wareneingang -
Vorschlag)
des Anschlusses
Freigegeben
This device is only intended to be used for its stated application. Unauthorised con-
versions, modifications or changes are not permissible! This device may not be used
in conjunction with other devices whose operation could present a hazard to people,
animals or property.
the following must be observed:
• The device's operating instructions.
• prevailing statutes, standards and regulations.
• State-of-the-art technology at the time of installation.
• Operating instructions can only cite general stipulations.
These are to be viewed in the context of a specific system.
the following systems may not be switched:
• Safety switches such as EMERGENcY OFF
• Emergency power supplies
• Fire alarm systems
• Emergency lighting systems
instAllAtion
instAllAtion inFormAtion
Installation and commissioning may only be performed by an authorised electri-
cian. Applicable laws and standards of the country in which the device is operated
must be observed!
The modules are designed for mounting on a 35mm top hat rail acc. EN 50022 in in-/
on-wall distribution housing. The devices can be mounted directly next to each other.
• Read through the operating instructions carefully before putting the
device into service.
• Before connecting or disconnecting the bus line, first switch off
the voltage supply.
• Use separate connecting leads for the control and load circuits! They may not
be laid in a common connecting lead.
• For EMc reasons, the connecting leads may not be laid behind
the 952 JRM Compact!
See the supplementary sheet "EXAMpLE cONNEcTION" for the installation.
CAution !!
• The input module and the JR modules form a functional unit and must therefore
always be used together in a system!
• When only one JR module is used in a system, it must be used as PHC-Jrm (1),
and the coding switch must be set to address 0 (see coding). If address 1 is set,
the module PHC-JRM (1) will not function!
• An RF interface can be used separately or together with the input module and
JR modules.
Coding
The coding for the enhancement modules must be set to the following addresses
before they can be used with the 952 JRM Compact:
module
PHC-Emd
PHC-Jrm (1)
PHC-Jrm (2)
940 Fu C
941 Fu C
Vorsicht, Gefahr durch
Vorsicht, Gefahr durch
Rutschen
Stolpern
Wandbrände nicht von
Wandbrände von unten
oben löschen
nach oben löschen
Wareneingang - Gesperrt
Wärmeabzugseinrichtung
Coding
Coding switch
ON
address 0
1
ON
ON
address 0
ON
1
1
1
ON
address 1
ON
1
ON
1
ON
address 0
1
1
ON
address 1
ON
1
1
DIP
2 3 4 5
DIP
DIP
DIP
2 3 4 5
2 3 4 5
2 3 4 5
DIP
DIP
2 3 4 5
DIP
2 3 4 5
DIP
2 3 4 5
2 3 4 5
DIP
DIP
2 3 4 5
2 3 4 5
GB - 1
