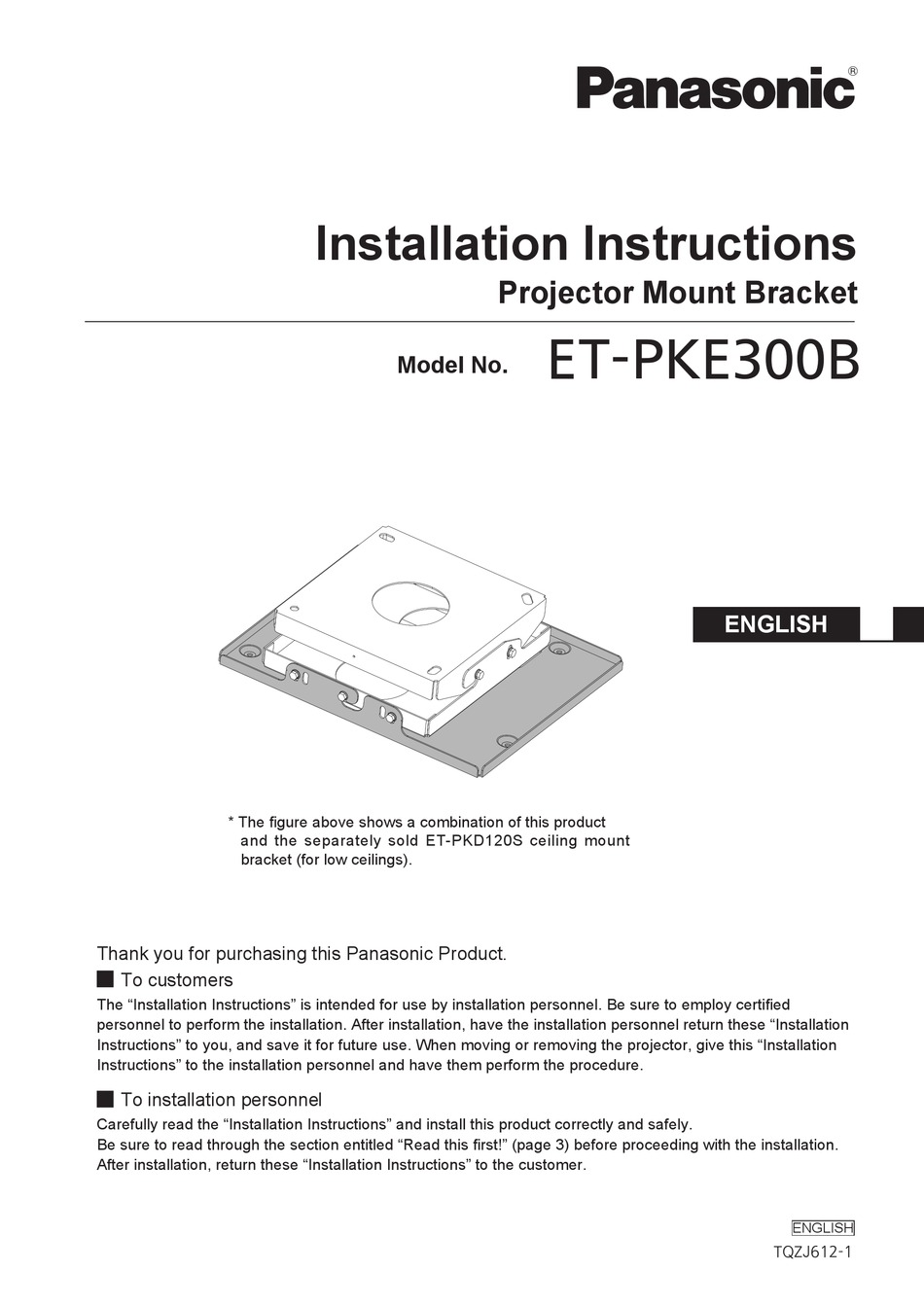

* The figure above shows a combination of this product
and the separately sold ET-PKD120S ceiling mount
bracket (for low ceilings).
Thank you for purchasing this Panasonic Product.
To customers
J
The "Installation Instructions" is intended for use by installation personnel. Be sure to employ certified
personnel to perform the installation. After installation, have the installation personnel return these "Installation
Instructions" to you, and save it for future use. When moving or removing the projector, give this "Installation
Instructions" to the installation personnel and have them perform the procedure.
To installation personnel
J
Carefully read the "Installation Instructions" and install this product correctly and safely.
Be sure to read through the section entitled "Read this first!" (page 3) before proceeding with the installation.
After installation, return these "Installation Instructions" to the customer.
Installation Instructions
Model No.
Projector Mount Bracket
ET-PKE300B
ENGLISH
ENGLISH
TQZJ612-1
Advertisement
Table of Contents
Related Manuals for Panasonic ET-PKE300B
Summary of Contents for Panasonic ET-PKE300B
- Page 1 * The figure above shows a combination of this product and the separately sold ET-PKD120S ceiling mount bracket (for low ceilings). Thank you for purchasing this Panasonic Product. To customers The “Installation Instructions” is intended for use by installation personnel. Be sure to employ certified personnel to perform the installation.
-
Page 2: Table Of Contents
Contents Read this first! .....................3 Product components ...................4 Standard installation dimensions ..............5 Installation ......................7 Setting up the screen ......................7 Screws tightening torques ....................7 Installing the bracket to the projector ..................7 Attaching the projector drop-prevention kit ................8 Specifications....................10 Dimensional relationship ..............Appendix 2 - ENGLISH... -
Page 3: Read This First
Electric shocks may result from contact with any metal objects inside the ceiling. r Panasonic takes no responsibility for any accident or damage caused by the installation of the ceiling mount bracket using methods that are not described or methods that do not use the parts specified in these Installation Instructions. -
Page 4: Product Components
Product components This is a ceiling mount bracket for installing projectors. ■ Applicable ceiling mount brackets and projectors z Ceiling mount brackets ET-PKD120H (for high ceilings) / ET-PKD120S (for low ceilings) z Projectors PT-EZ770 / PT-EZ590 / PT-EZ580 / PT-EZ57 / PT-EW730 / PT-EW650 / PT-EW640 / PT-EW550 / PT-EW540 / PT-EX800 / PT-EX620 / PT-EX610 / PT-EX520 / PT-EX510 / PT-FZ570 / PT-FW530 / PT-FX500 Note z In this document, the alphabet letters at the end of the projector part numbers are omitted. -
Page 5: Standard Installation Dimensions
Standard installation dimensions The dimensional relationship between the screen and projector is shown below. Establish the ceiling installation position after accessing the “Dimensional relationship diagram” (pages 5-6) and “Dimensional relationship” in the Appendix. The projection distance can be adjusted using the zoom lens (except ET-ELW21). Check the projected image while making fine adjustments. - Page 6 Standard installation dimensions (continued) Distance from the center of lens to the attachment plate Projected image height H1 / H2 (including plate thickness) Projected image width Lens protrusion dimension (from front of set to tip of lens) Distance from the center of attachment plate to the front end of Projected image size L2F / L3F lens...
-
Page 7: Installation
Installation After checking the height, width and structure of the installation location while referring to the “Dimensional relationship diagram” (pages 5-6) and “Dimensional relationship” in the Appendix, determine the appropriate posi- tions for setting up the screen and installing the projector. Setting up the screen Set up the screen according to the specified method in a position which takes into account the projection distance and angle and the type of screen being used. -
Page 8: Attaching The Projector Drop-Prevention Kit
Installation (continued) Attaching the projector drop-prevention kit Secure the wire rope to the projector (sold separately). Attention z For the combination of the projector with the ceiling mount bracket (for low ceilings) ET-PKD120S (sold separately) and the ceiling mount bracket (for high ceilings) ET-PKD120H (sold separately), and the mounting of the wire rope to the ceiling, please refer to the installation instructions of the ceiling mount bracket ET- PKD120S (for low ceilings) and ET-PKD120H (for high ceilings). - Page 9 Installation (continued) (when using the ceiling mount bracket ET-PKD120H (for high ceilings)) 1 Secure one end of the wire rope with a captive washer screw (M6×20) to “A” on the projector as shown on the left. Attention z Be sure to use the supplied flat washers and wire rope.
-
Page 10: Specifications
Specifications Width: 410 mm (16-5/32″) External dimensions Height: 56 mm (2-7/32″) Length: 314 mm (12-3/8″) Weight Approx. 2.2 k ] (4.85 lbs) 10 - ENGLISH... - Page 11 MEMO ENGLISH - 11...
- Page 12 Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2014 W0314GC1026 -ST...
