ET-WBC100
Thank you for purchasing this Panasonic Product.
The "Installation Instructions" is common to the following products.
J
Wall mount bracket: ET-WBC100
Projector mount bracket: ET-PKC300B
To customers
J
The "Installation Instructions" is intended for use by installation personnel. Be sure to employ certified
personnel to perform the installation. After installation, have the installation personnel return the "Installation
Instructions" to you, and save it for future use. When moving or removing the projector, give the "Installation
Instructions" to the installation personnel and have them perform the procedure.
To installation personnel
J
Carefully read the "Installation Instructions" and install this product correctly and safely.
Be sure to read through the section entitled "Read this first!" ( x page 3) before proceeding with
the installation.
After installation, return the "Installation Instructions" to the customer.

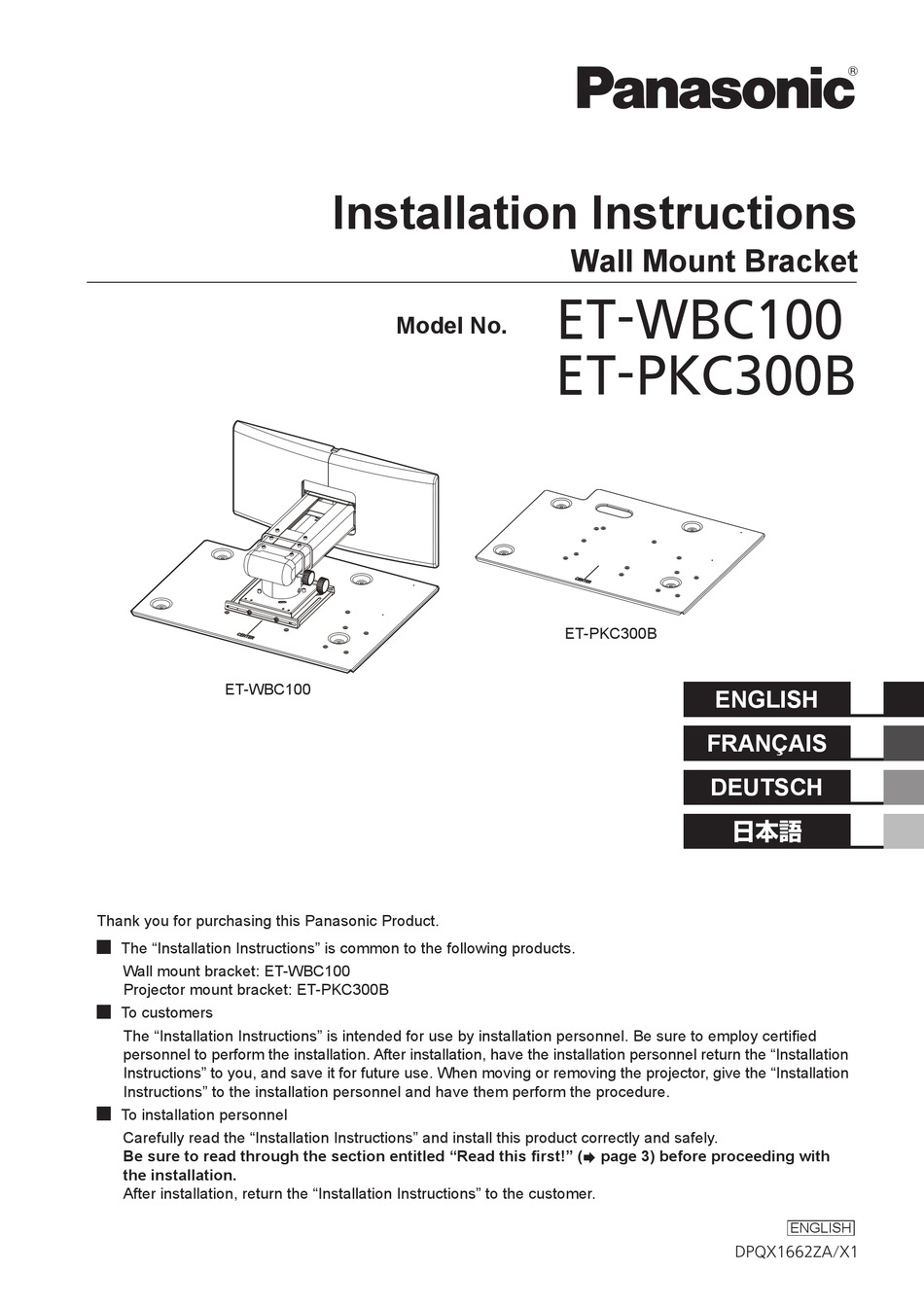

Installation Instructions
Model No.
Wall Mount Bracket
ET-WBC100
E T-PKC300B
ET-PKC300B
ENGLISH
FRANÇAIS
DEUTSCH
日本語
ENGLISH
DPQX1662ZA/X1
Advertisement
Table of Contents
Related Manuals for Panasonic ET-WBC100
Summary of Contents for Panasonic ET-WBC100
- Page 1 ET-WBC100 ENGLISH FRANÇAIS DEUTSCH 日本語 Thank you for purchasing this Panasonic Product. The “Installation Instructions” is common to the following products. Wall mount bracket: ET-WBC100 Projector mount bracket: ET-PKC300B To customers The “Installation Instructions” is intended for use by installation personnel. Be sure to employ certified personnel to perform the installation.
-
Page 2: Table Of Contents
Contents Read this first! ....................3 Product description (ET-WBC100) ..............4 Product description (ET-PKC300B) ..............6 Installation dimensions (ET-WBC100) ............. 7 Installation (ET-WBC100) ................10 Setting up the screen ......................10 Screws tightening torques ....................10 Attaching the projector drop-prevention kit ................11 Installing the projector mount bracket kit to the projector ..........11... -
Page 3: Read This First
Electric shocks may result from contact with any metal objects inside the wall and ceiling. r Panasonic Connect Co., Ltd. takes no responsibility for any accident or damage caused by the installation of the wall mount bracket using methods that are not described or methods that do not use the parts specified in these Installation Instructions. -
Page 4: Product Description (Et-Wbc100)
Product description (ET-WBC100) This is a wall mount bracket (Model No.: ET-WBC100) for installing the projector to a wall. ■ Applicable projectors PT-CMZ50 Note z In this manual, the suffixes at the end of the model numbers are omitted. z Models other than those listed above may also be supported. Check the operating instructions of your projector or the following website. - Page 5 Product description (ET-WBC100) (continued) Parts name Form (number of parts) Applications Anchor Bolt Center (Fall Prevention Wire Attaching Position) アンカーボルト中心線（落下防止用ワイヤーロープ取付位置） Used to determine positions of the screw holes for Template sheet Wall Mount Bracket Center securing the wall mount bracket to the wall.
-
Page 6: Product Description (Et-Pkc300B)
Product description (ET-PKC300B) This is a projector mount bracket (Model No.: ET-PKC300B) used to replace the projector mount bracket of an existing wall mount bracket. For details on how to replace the projector mount bracket, refer to “Replacing projector mount bracket (ET- PKC300B)”... -
Page 7: Installation Dimensions (Et-Wbc100)
Installation dimensions (ET-WBC100) The dimensional relationship between the screen and projector is shown below. Determine the installation position on the wall based on the “Dimensional relationship diagram” ( x page 7) and the “Dimensional relationship” ( x page 8). The projected image size can be adjusted by changing the distance between the screen and the projector. For details on how to adjust the projected image size, refer to “When adjusting the projected image size (forward/... - Page 8 Installation dimensions (ET-WBC100) (continued) Attention z To prevent obstruction of the intake and exhaust vents, install the projector with a clearance from walls and objects. For details about the required distance from surrounding walls and objects, refer to the operating instructions for your projector. If you are installing the projector in a sealed space, be sure to provide additional air conditioning equipment and ventilation equipment.
- Page 9 Installation dimensions (ET-WBC100) (continued) ■ Formulas for calculating dimensions To use a projected image size not listed in “Dimensional relationship” ( x page 8), check the projected image size SD (m) and use the respective formula to calculate the value.
-
Page 10: Installation (Et-Wbc100)
Installation (ET-WBC100) After checking the height, width and structure of the installation location while referring to “Dimensional relationship diagram” ( x page 7) and “Dimensional relationship” ( x page 8), determine the appropriate positions for setting up the screen and installing the projector. -
Page 11: Attaching The Projector Drop-Prevention Kit
Installation (ET-WBC100) (continued) Attaching the projector drop-prevention kit Install the drop-prevention wire rope to the projector (sold separately). <For PT-CMZ50> Place the projector upside down on a soft cloth. (Fig.1) Retract the adjustable feet. (Fig.1) z Rotate the adjustable feet in clockwise to retract them. -
Page 12: Installing The Wall Mount Bracket To The Wall
Installation (ET-WBC100) (continued) Installing the wall mount bracket to the wall Temporarily paste the template sheet to the installation position determined according to “Installation dimensions” (x page 7). (Fig.1) z Align the vertical line of “Image Center” on the template sheet to the center position of the screen. -
Page 13: Installing The Projector To The Wall Mount Bracket
Installation (ET-WBC100) (continued) Fig.5 Fig.4 Attention z Be sure to use the bolts, hex nuts, spring washers, anchoring nuts or curled plugs for M6. z Tighten the bolts and nuts securely. If necessary, use double nuts or take screw locking measures to prevent loosening. -
Page 14: Attaching The Wire Rope To The Wall
Installation (ET-WBC100) (continued) Secure the projector mount bracket to the wall mount bracket using the four supplied flanged screws (M4 × 10). (Fig.4) z Tightening torque of flanged screws: 0.8 ± 0.2 N·m z If the brackets interfere with the Phillips screwdriver, making it impossible to tighten the flanged screws on the wall side, pull out the arm and tighten the screws. -
Page 15: Attaching The Covers
Installation (ET-WBC100) (continued) Pass the commercially available hex head bolt (M10) through the commercially available spring washer (M10) and flat washer (M10), and the loop at the end of the wire rope, and then tighten it to the anchor. (Fig.3) z When installing to a wooden structure, pass the loop at the end of the wire rope through the suspending bolt and firmly fix the suspending bolt to the wall. -
Page 16: Making Adjustments (Et-Wbc100)
Making adjustments (ET-WBC100) After installing the wall mount bracket to the wall, adjust the projected image using the adjustment functions of the wall mount bracket. To perform forward/backward and vertical slide adjustment, you need to use a hex wrench or a ball point hex screwdriver (diagonal 5 mm). - Page 17 Making adjustments (ET-WBC100) (continued) ■ If the top and bottom edges of the image are not parallel (horizontal swing adjustment) Turn the adjustable knob A to correct horizontal keystone distortion. z Turn the adjustable knob A to make the projector swing left or right until the top and bottom edges of the projected image are parallel.
- Page 18 Making adjustments (ET-WBC100) (continued) Adjustment range ± 5° Adjustable knob C ■ If the image is shifted up or down (vertical slide) Evenly loosen four hex head bolts (M6 × 15) at the root of the arm using a hex wrench or a ball point hex screwdriver.
- Page 19 Making adjustments (ET-WBC100) (continued) ■ If the image is shifted left or right (horizontal slide) Loosen the four flanged screws (M4 × 10) on the projector mount bracket kit. Slide the projector mount bracket kit together with the projector to adjust the image to the left or right side.
-
Page 20: Replacing Projector Mount Bracket (Et-Pkc300B)
Replacing projector mount bracket (ET-PKC300B) Removing the connecting plate Remove the left and right mount covers attached to the wall mount bracket. (Fig.1) Disconnect cables connected to the projector. Remove the drop-prevention wire rope fixed to the wall. (Fig.1) Remove the four flanged screws (M4 × 10) that secure the projector mount bracket kit to the wall mount bracket. -
Page 21: Installing The Connecting Plate
Replacing projector mount bracket (ET-PKC300B) (continued) Installing the connecting plate Align the ends of the four long holes on the connecting plate to the four screw holes on the projector mount bracket. z Make sure the arrow marks on the connecting plate point to the left and the “CENTER” mark on the projector mount bracket is in the front side. -
Page 22: Specifications (Et-Wbc100)
Specifications (ET-WBC100) Horizontal swing angle ± 5 ° Vertical tilt angle ± 5 ° Horizontal tilt angle ± 5 ° Image size between 2.03 m (80") and 2.29 m (90"): Range of -10 mm ~ +10 mm (-13/32" ~ +13/32") -
Page 23: Appendix
Appendix To use the separately sold Wireless Presentation System Receiver (Model No.: TY-WPR1) and the separately sold 4K Integrated Camera (Model No.: AW-UE4KG, AW-UE4WG), follow the procedures below to install it. *1 The availability of this product varies depending on the country. For details, contact your dealer. Installing the Wireless Presentation System Receiver Install the base bracket supplied with the receiver to the receiver. - Page 24 Panasonic Connect Co., Ltd. LT0423NL0 -PT Website: https://panasonic.net/cns/projector/ Printed in China © Panasonic Connect Co., Ltd. 2023...
