ver. 1.0
How to: Micro Adjustment Felt Friction Pad Replacement

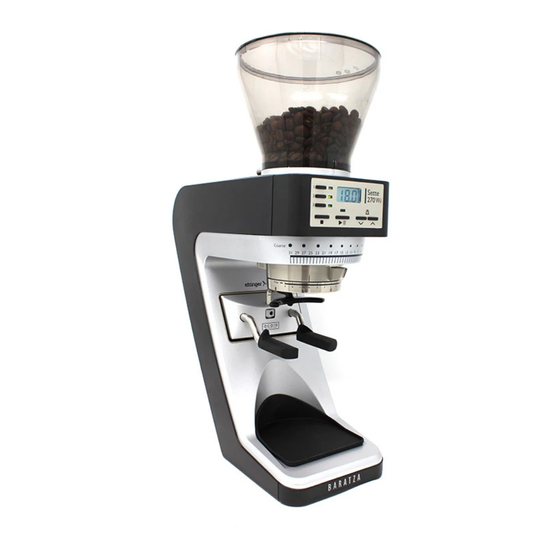

Sette 270, Sette 270W, Sette 270Wi
Time: 5 min
Difficulty: Easy
Tools/supplies: Phillips #2 Driver
Parts: Micro Adjustment Felt (S582)
Additional Resources: N/A
*** Unplug the grinder from power supply ***
Phillips
Micro Adjustment Felt (S582)
www.baratza.com
support@baratza.com
rev. 7/11/2019
Advertisement
Related Manuals for Baratza Sette 270
Summary of Contents for Baratza Sette 270
- Page 1 1.0 How to: Micro Adjustment Felt Friction Pad Replacement Sette 270, Sette 270W, Sette 270Wi Time: 5 min Difficulty: Easy Tools/supplies: Phillips #2 Driver Parts: Micro Adjustment Felt (S582) Additional Resources: N/A *** Unplug the grinder from power supply ***...
- Page 2 Pg. 2 Remove the adjustment assembly. Remove the 3 Philips screws securing the micro adjustment ring into the assembly. Remove and discard the current felt, if present. www.baratza.com support@baratza.com rev. 7/11/2019...
- Page 3 Work the strip into the groove around the ring until it is all seated. Felt protrudes roughly 1mm The felt should protrude slightly from the groove. www.baratza.com support@baratza.com rev. 7/11/2019...
- Page 4 Macro ring. Then, ensure that the screw holes on the Micro ring align with the screw holes on the black interior ring in the Macro assembly. Secure the 3 Philips screws. www.baratza.com support@baratza.com rev. 7/11/2019...
- Page 5 For more minor modification of friction, the 3 Philips screws can be loosened or tightened slightly. If you have questions, or encounter any issues with this guide, contact support@baratza.com www.baratza.com support@baratza.com rev. 7/11/2019...
