π
H-4683

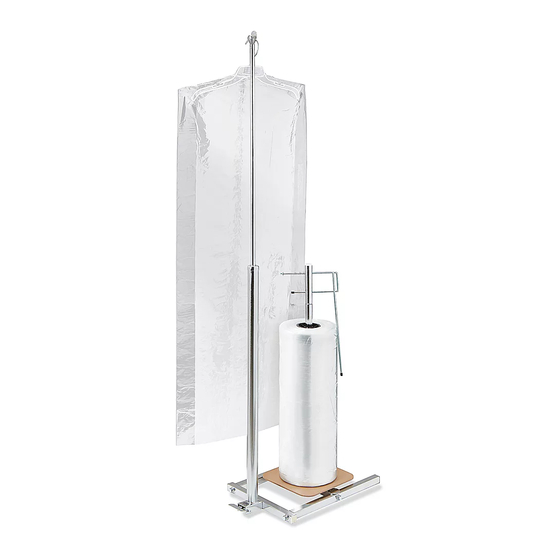

GARMENT BAG
DISPENSER RACK
TOOLS INCLUDED
12-13 mm Wrench
Ball Bearing
Assembly x 1
Spring Loaded
Bag Feeder x 1
PAGE 1 OF 3
1-800-295-5510
uline.com
14 mm Wrench
Garment Bag
Roll Holder x 1
PARTS LIST
Adjustable Clothes
Hanger x 1
Carriage Bolt x 2
Flat Washer x 4
Hex Bolt x 4
Nut x 2
Red Hardware Bag
Base x 1
Leg x 2
Cross Brace x 1
Locking
Washer x 4
0214 IH-4683
Advertisement
Related Manuals for U-Line H-4683
Summary of Contents for U-Line H-4683
- Page 1 π H-4683 1-800-295-5510 uline.com GARMENT BAG DISPENSER RACK TOOLS INCLUDED 12-13 mm Wrench 14 mm Wrench PARTS LIST Ball Bearing Carriage Bolt x 2 Flat Washer x 4 Assembly x 1 Locking Hex Bolt x 4 Nut x 2 Washer x 4...
- Page 2 ASSEMBLY INSTRUCTIONS Attach the legs to the garment bag roll holder using two 3. Attach the adjustable clothes hanger to the cross hex bolts, two flat washers and two locking washers. brace using two carriage bolts and two nuts. (See Figure 1) (See Figure 3) Figure 1 Figure 3...
- Page 3 ASSEMBLY INSTRUCTIONS CONTINUED 5. Load garment bag roll (not included) onto garment 6. Attach the spring loaded bag feeder to the garment bag roll holder. (See Figure 5) bag roll holder by inserting the end of the spring loaded bag feeder into the end of the garment bag roll holder.
