U-Line H-3450 Manual

H-3450

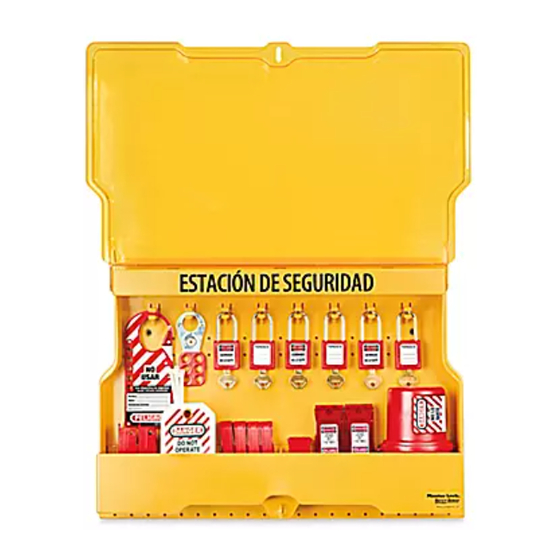

LOCKOUT/TAGOUT
WALL MOUNT STATION –
ELECTRICAL
COMPONENTS
6 Keyed-Different Padlocks
1 Compact Plug Prong Lockout
1 Hasp
6 Circuit Breaker Lockouts
24 Tags
1 Plug Cover
1 Snap-On Hasp
2 Wall Switch Covers
ELECTRICAL PLUG PRONG LOCKOUT OPERATION
• Fits two prong plugs with or without ground.
• Can be used with lockout padlocks or lockout hasps.
1. Insert the plug prongs with or without ground.
(See Figure 1)
Figure 1
NOTE: Insert fully to push out eyelet.
(See Figure 2)
Figure 2
Eyelet
PAGE 1 OF 12
1-800-295-5510
uline.com
2. Insert the padlock and lock. (See Figures 3-4)
Figure 3
Figure 4
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
LOCKOUT STATION
0521 IH-3450
