U-Line H-8884 Manual

H-8884
TELESCOPING FLAGPOLE
TOOLS NEEDED
Post Hole Digger Shovel
Aluminum Gold Ball x 1
Stainless Steel Clip x 4
NOTE: Before digging, call 811 (in US) to confirm
that there are no underground sprinklers, water and
electrical lines under installation site. Ensure flag
has clearance to fly in all directions.
1. Dig a hole approximately 26" deep with a 12-18"
diameter at top and with 6-8" diameter at bottom of the
hole. (See Figure 1)
2. Place approximately 3" of gravel in hole to allow for
drainage.
3. Place aluminum ground sleeve into gravel to prevent
concrete from flowing inside. Use ground sleeve cap to
cover ground sleeve so concrete does not get inside
sleeve.
4. Mix 80 lbs. of quick setting concrete, and pour around
ground sleeve. Repeat until hole is filled. It is acceptable
to have ground sleeve an inch or two above ground level.
It can be covered with mulch, dirt and/or flower bed.
PAGE 1 OF 9
1-800-295-5510
uline.com
Level Tape Measure
Top Swivel Washer x 1
1¾" Bottom Swivel Sleeve x 1
Top Swivel x 1 2" Bottom Swivel Sleeve x 1
Mixing Container
PARTS
SETUP

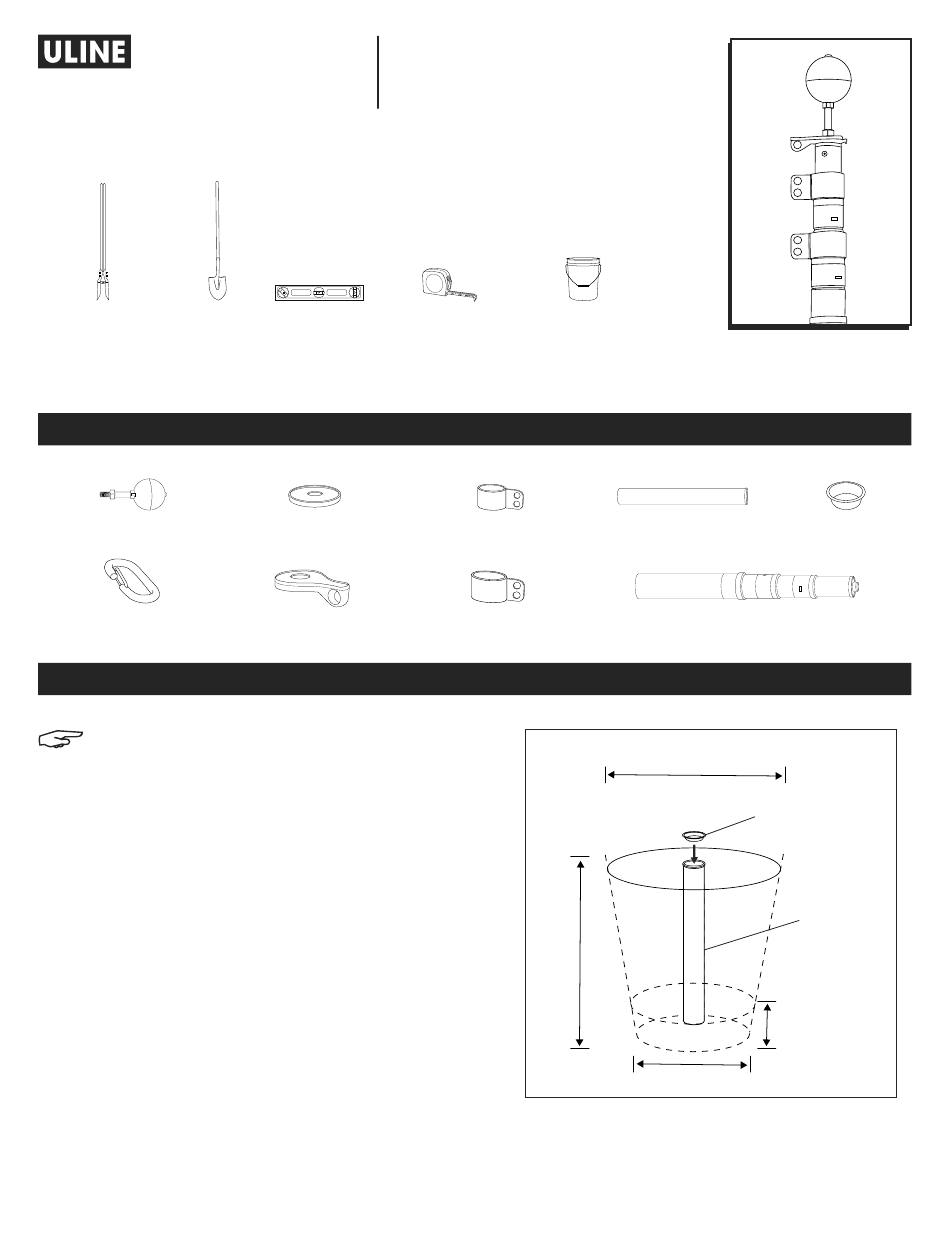

Figure 1
26"
Para Español, vea páginas 4-6.
Pour le français, consulter les pages 7-9.
Aluminum Ground Sleeve
Ground Sleeve x 1

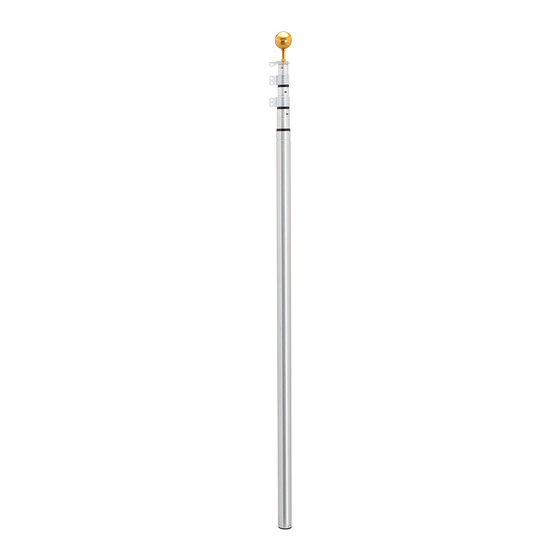

Aluminum Flagpole x 1
12-18"
Ground Sleeve Cap
Aluminum
3" Gravel
6-8"
Cap x 1
Ground
Sleeve
1020 IH-8884
