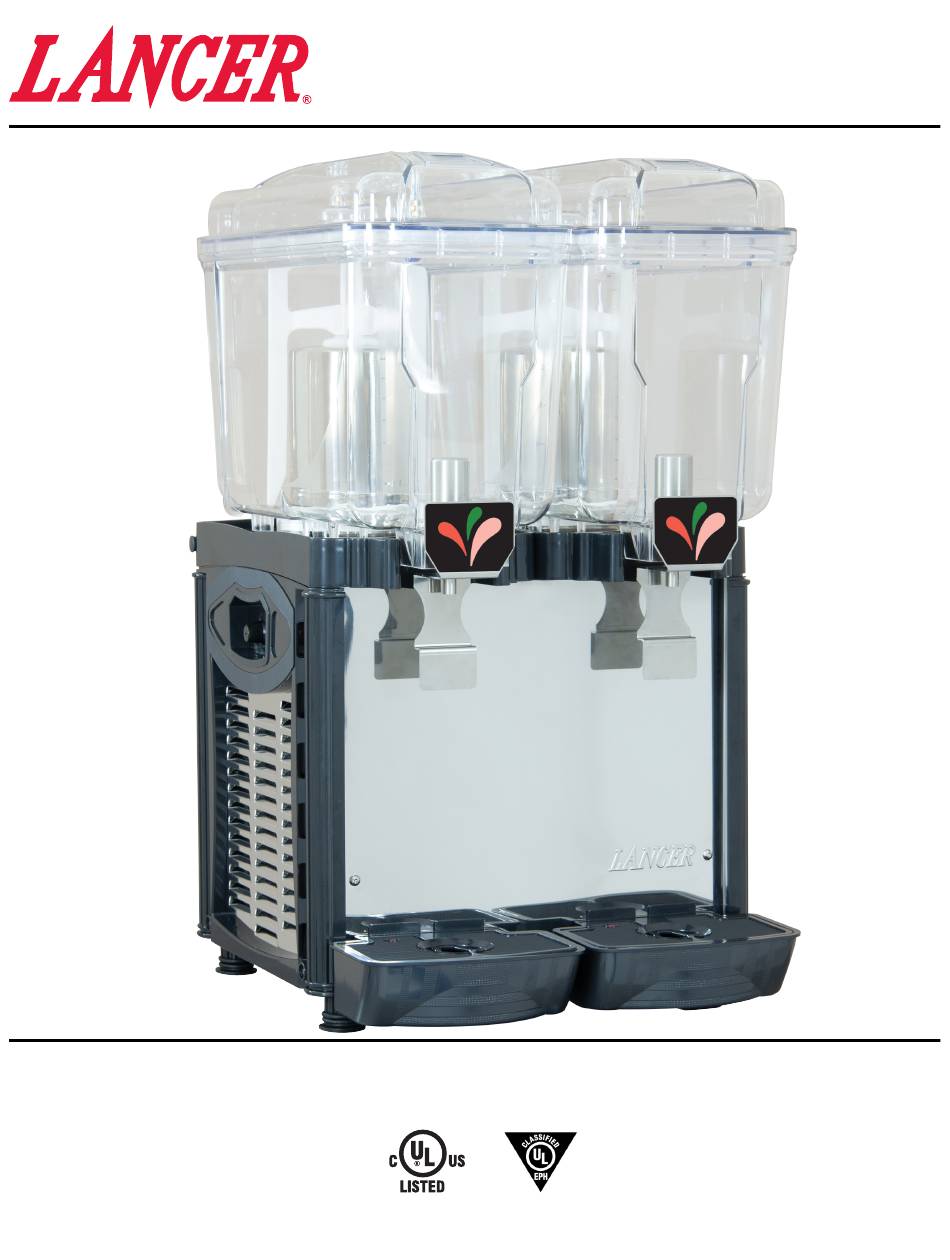

Soochee™

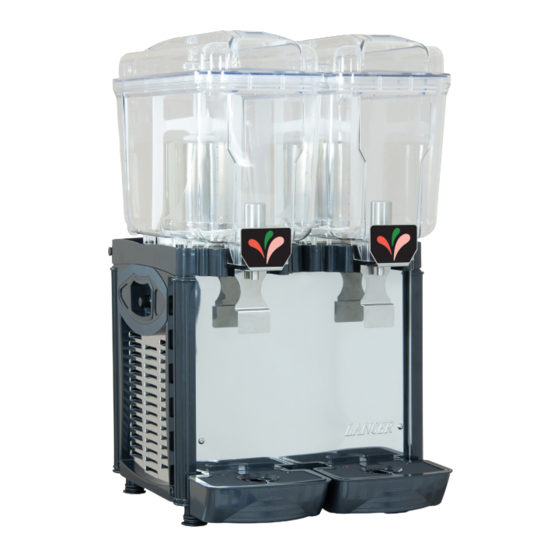

Refrigerated Beverage Dispenser (RBD)
Model 1100
Operation Manual
Lancer Corporation
Tech Support/Warranty: 800-729-1550
6655 Lancer Blvd.
email: custserv@lancercorp.com
San Antonio, Texas 78219
web: lancercorp.com
800-729-1500
Lancer PN: 28-3063
Revision: 00-1, October 2019
"Lancer" is the registered trademark of Lancer © 2018 by Lancer, all rights reserved.
Advertisement
Table of Contents
Related Manuals for lancer Soochee 1100
Summary of Contents for lancer Soochee 1100
- Page 1 Operation Manual Lancer Corporation Tech Support/Warranty: 800-729-1550 6655 Lancer Blvd. email: custserv@lancercorp.com San Antonio, Texas 78219 web: lancercorp.com 800-729-1500 Lancer PN: 28-3063 Revision: 00-1, October 2019 “Lancer” is the registered trademark of Lancer © 2018 by Lancer, all rights reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ABOUT THIS MANUAL BEFORE GETTING STARTED This booklet is an integral and essential part of the product. Each unit is tested under operating conditions and is thoroughly Please carefully read the guidelines and warnings contained inspected before shipment. At the time of shipment, the carrier herein as they are intended to provide the user with essential accepts responsibility for the unit. - Page 3 IMPORTANT SAFETY INSTRUCTIONS ! Intended Use F Power • The dispenser is for indoor use only • Follow all local electrical codes when making connections. • This appliance is intended to be used in commercial applications such as restaurants or similar. •...
-
Page 4: Installation
Please read this manual before installation and operation of this dispenser. Please see page 9 for troubleshooting or service assis- tance. If the service cannot be corrected please call your Service Agent or Lancer Customer Service. Always have your model and serial number available when you call. -
Page 5: Positioning
Positioning NOTE The dispenser should only be installed in a location where it can be overseen by trained personnel Place machine on a horizontal and sturdy surface. For an improved ventilation maintain a distance of 15cm (6 inches), between unit and walls or other obstacles. Increase the distance if the obstacles are an heating source. -
Page 6: Use
Dispenser Setup NOTE NOTE Before use, the dispenser should be cleaned carefully For a correct usage of the machine ensure that the as it comes into contact with drinks: liquid level into the bowl does not go below .75 - 1 gal. Do not overtake the MAX level line. -
Page 7: Beverage Temperature Regulator
! ATTENTION Before carrying out cleanings and refills, remove the power plug. NOTE The cleaning procedures provided herein pertain to the Lancer equipment identified by this manual. If other equipment is being cleaned, follow the guidelines established by the manufacturer for that equipment. Disassembling and Assembling Disconnect the unit by removing the plug. -
Page 8: Cleaning
Cleaning ! ATTENTION Do not use abrasive powders which might impair container and lid’s shine. Use neutral soap and lukewarm water to wash container, lid, mixer, refrigerator and tap. Rinse carefully with water in order to remove any residual of soap. -
Page 9: Troubleshooting
TROUBLESHOOTING TROUBLE CAUSE REMEDY No power to machine. Plug is not in. Insert plug. Main switch is not to [ON] position. Switch main switch to [ON]. Feeder cable is broken. Replace feeder cable. Main Switch is broken. Replace main switch. Machine is not cooling. -
Page 10: Illustrations And Part Listing
ILLUSTRATIONS AND PART LISTINGS Main Unit Assembly... - Page 11 Spare Parts Position Part Number Description 54-1028 LID, BOWL, 3.2 GAL, RBD 05-4215 PADDLE, 3.2 GAL, RBD 82-6449 PISTON ASSY, RBD 82-6444 BOWL ASSY, 3.2 GAL, RBD 02-1032 GASKET, BOWL, RBD 82-6460 LEVER, PUSH, RBD 82-6445 LEVER, PUSH, MEGA, RBD 82-6461 VALVE ASSY, RBD 82-6447...
-
Page 12: Unit Specifications
Unit Specifications Lancer Model Lancer PN Descriptions Freq Current Draw Power Compressor Refrigerant Charge Pressure Bowls Capacity Dimensions (WxDxH) Weight 85-11111A-GRY RBD,1100,115V,3.2GAL,SINGLE,GRAY 50 Hz 2.2 A 260 W 1/6 HP Low 104 psig 44.1 lb Soochee 3.1 R134a 2.5 oz 1 x 3.2 Gal... -
Page 13: Wiring Diagram
Wiring Diagram Soochee 6.1-6.2, X.1 Soochee 5.1-5.2-5.3 Soochee 3.1-3.2, 3.3, 3.4 Soochee 3.2, 5.2, 6.1, X.1 Soochee 3.3, 5.3 Soochee 3.4, 5.4, 6.2, X.2 Soochee X.2 Soochee 5.4 c = Compressor S = Exchanger F = Filter Bc = Boiler-collector E1 = Evaporator E2 = Evaporator E3 = Evaporator... - Page 14 Lancer Corp. 800-729-1500 Technical Support/Warranty: 800-729-1550 custserv@lancercorp.com lancercorp.com...
